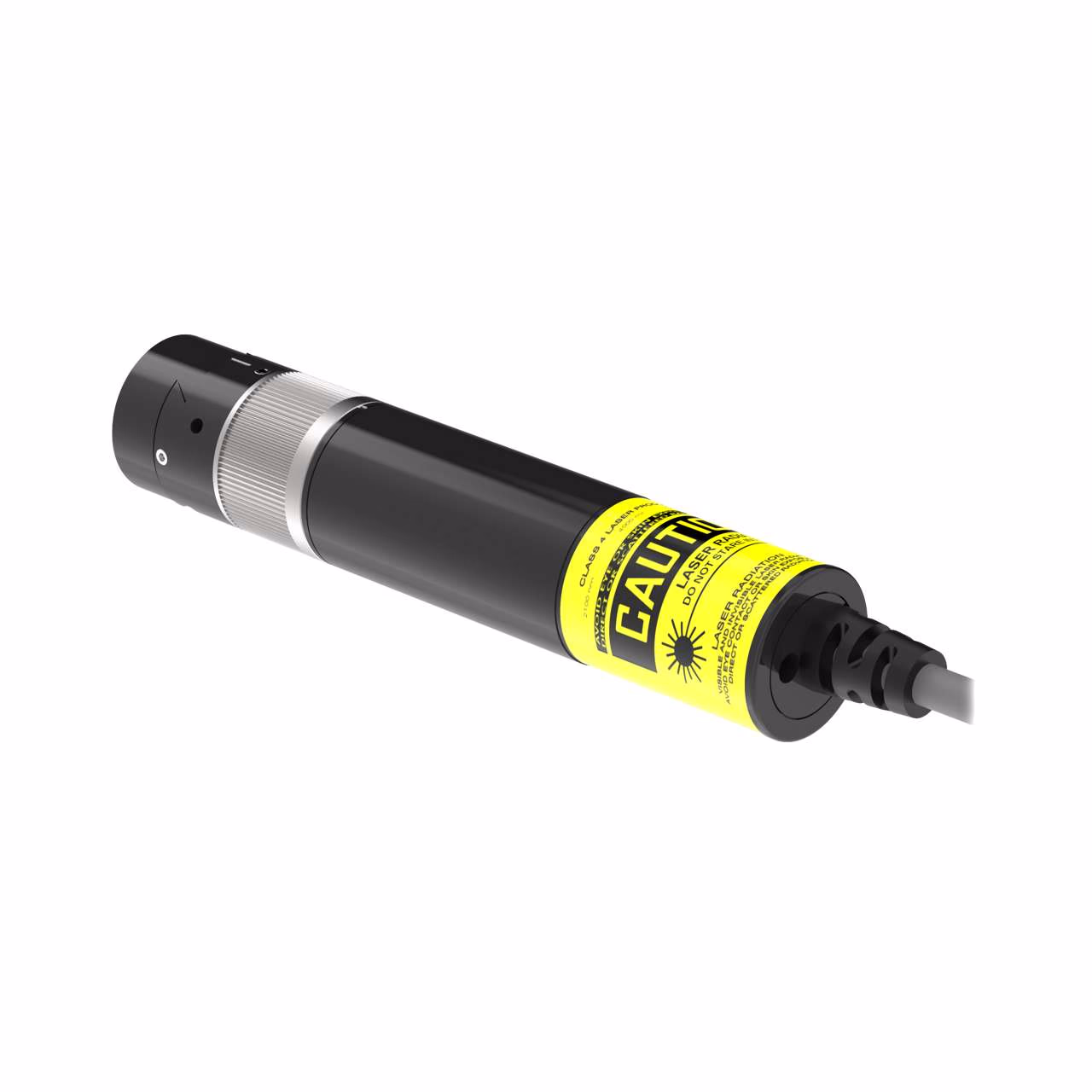

Laser Line Generator – Banner – LLG660P10A60II
Laser Line Generator
660 nm; 10 mW; 60 degree fan angle
Class II CDRH
RS232 Communication
Flying Leads
| Color Technology | Standard LED |
|---|---|
| Connection | Flying Leads |
| Laser Classification | Class 2 |
| Lens Focusing Angle/FOV (degrees) | 60.0 |
| QD Type/Cable Length | 500 mm |
| Device type | Laser Line Generator |
| EPLAN Status | Prep for Publish |
| Housing Style | Circular Spot |
| Item Status | RELEASED |
| Number of Conductors | 8.0 |
| Physical Dimensions (LxWxH or DxH mm) | 18.6 x 95.1 |
| Power Good Output | DC |
| Receptacle housing material B | Aluminum |
| Voltage supply connection | Cable |
| Min Op. Temperature (C) | -10.0 |
| High Temperature (up to 100 C) | 50.0 |
| Max Current Color (mA) | 185.0 |
Description
Laser Line Generator
660 nm; 10 mW; 60 degree fan angle
Class II CDRH
RS232 Communication
Flying Leads
