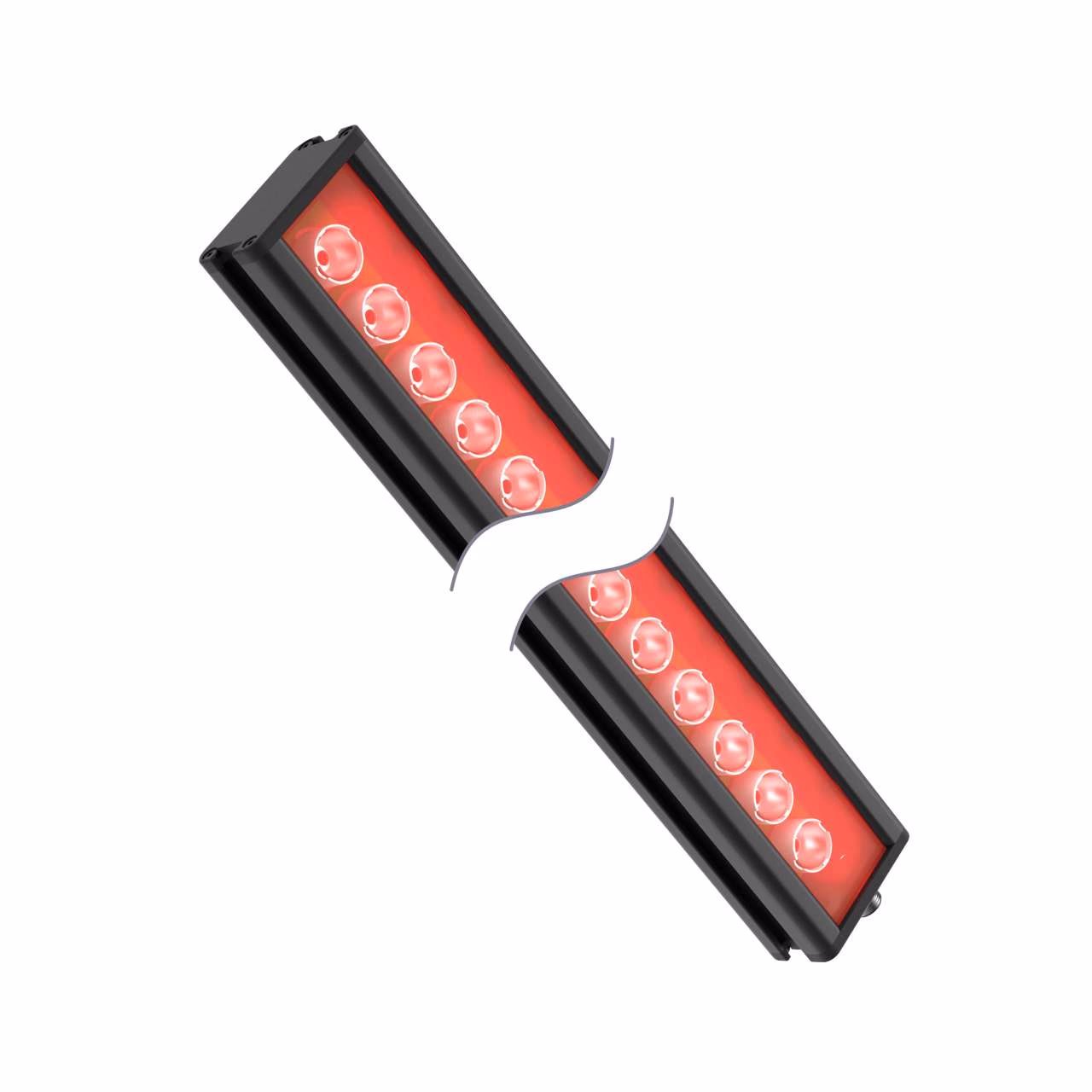

Linear Array Lights – Banner – LEDRLA435XP6-XQ
Vision Light – 435 mm Linear Array – IP50
18 High Intensity Red LEDs – 24 V dc
Clear Plastic Window
Requires Cable MQDC20-xxx
| Color | Red |
|---|---|
| Color Technology | Standard LED |
| Connection | Integral QD |
| Lens Focusing Angle/FOV (degrees) | 6.5 |
| QD Type/Cable Length | M12; requires mating cordset |
| Window Material | Acrylic |
| Device type | Bar Light |
| EPLAN Original Sent Date | 09/27/2025 |
| EPLAN Status | Published |
| Feature | Quick Disconnect |
| Housing Style | Linear Strip |
| Item Status | RELEASED |
| Number of Conductors | 5 |
| Physical Dimensions (LxWxH or DxH mm) | 478.1 x 59.4 x 32.6 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP50 |
| Receptacle housing material B | Anodized Aluminum |
| High Temperature (up to 100 C) | 50 |
| Max Current Color (mA) | 1500 |
| Voltage supply connection | Integral QD |
Description
Vision Light – 435 mm Linear Array – IP50
18 High Intensity Red LEDs – 24 V dc
Clear Plastic Window
Requires Cable MQDC20-xxx
