Locking – Banner – SI-GL42DM01-20Q13

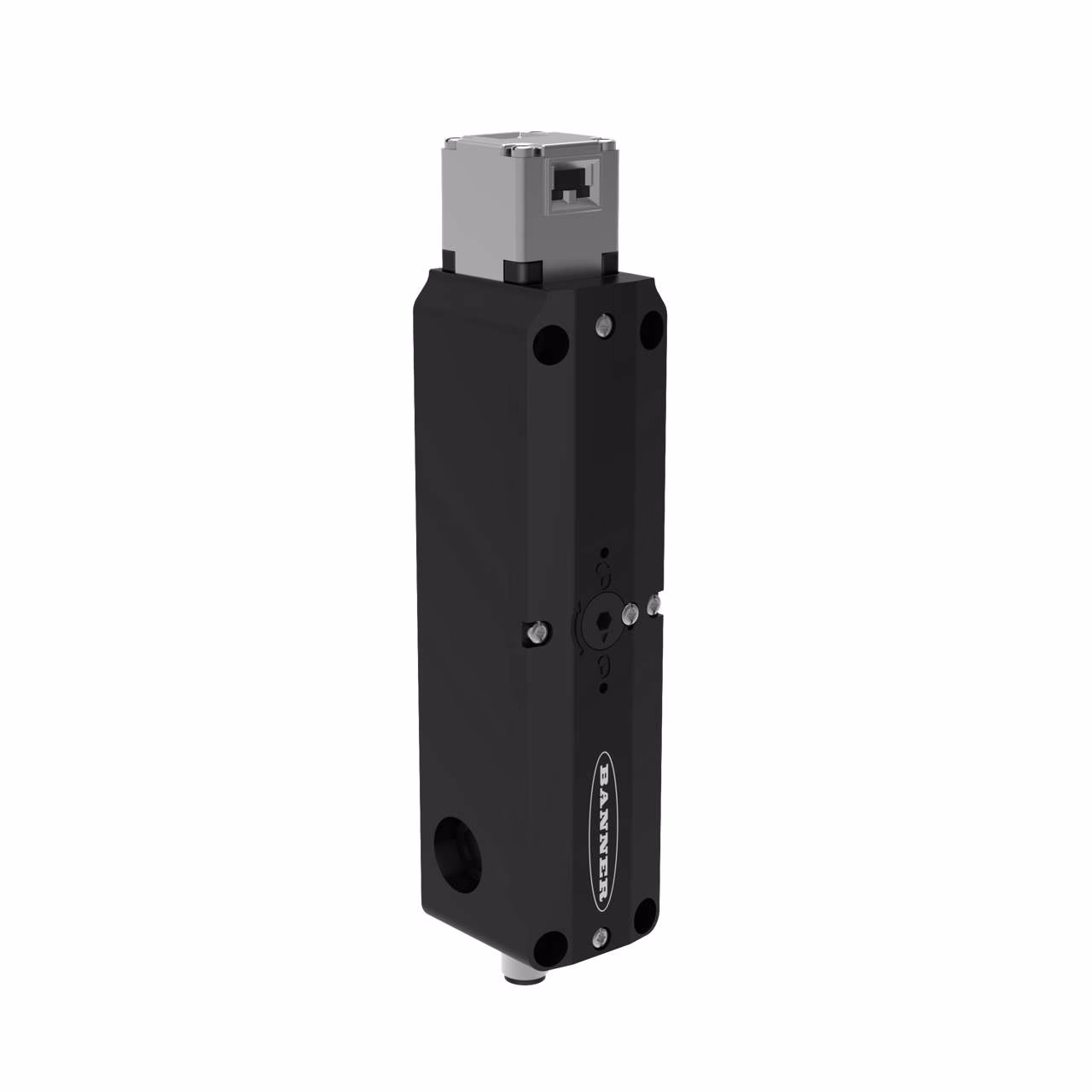

SI-GL42 Series Safety Interlock Switch
Solenoid Lock/Spring Unlock; 24 V dc
Contact Configuration: Actuator: 1 NO, Monitor: 2NC

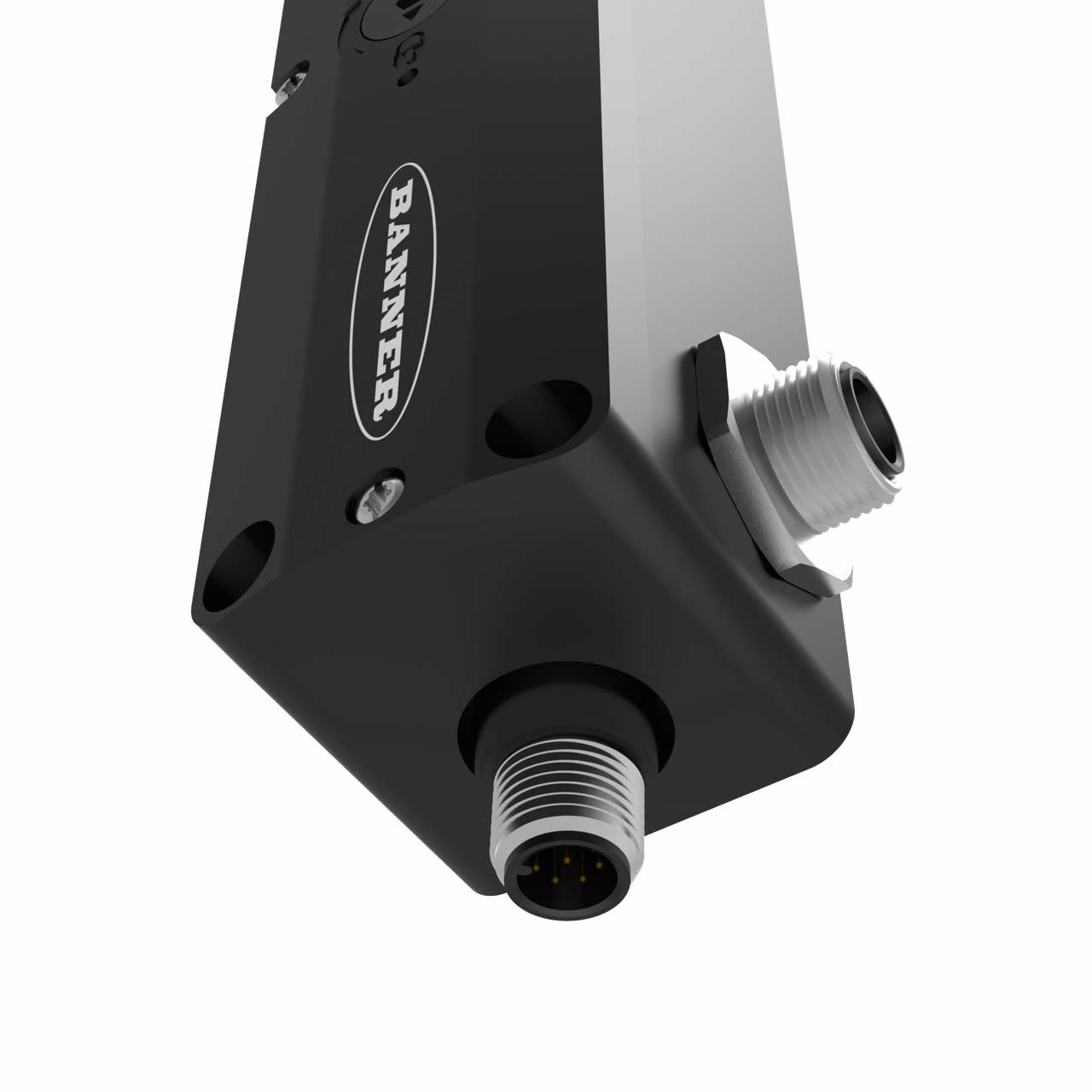

Connector: 1 x 5-pin M12 Bottom, 1 x 5-pin M12 Side
| Actuator (Safety) Contacts | 1 NO |
|---|---|
| Auxilliary Output | No |
| Connection | Integral QD |
| Device Size | 208 x 62 x 44 |
| ISD Connect Compatible | Yes |
| In-Series Diagnostics | No |
| Mechanical Life (operations in millions) | 1.0 |
| SISTEMA | B10d = 2 million |
| Safety Category | Cat 4 |
| Switch Style | Contact |
| Coding level/tamper protection | Low |
| Device type | Mechanical – Sensor |
| Feature | Lockable, Quick Disconnect |
| Functional safety (SIL/PL) | SIL CL 3 |
| Item Status | RELEASED |
| Number of pins | 5 (x2) |
| Operating voltage | 24 V ac/dc |
| Output type | Contacts |
| PL Rating | PL e |
| Port | M12 |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic body, Zinc head |
| Voltage supply connection | M12 |
| Min Op. Temperature (C) | -25.0 |
| Max Op. Temperature (C) | 55.0 |
| Monitor (Locked) Contacts | 2 NC |
| Rated Operating Current | 6.7 VA |
| Locking Mechanism | Power Lock |
| Power Consumption (W/VA) | 6.7 VA |
| In Rush Power Consumption (VA/s) | 6.7 VA |
| Extraction Force (N) | 1500.0 |
Description
SI-GL42 Series Safety Interlock Switch
Solenoid Lock/Spring Unlock; 24 V dc
Contact Configuration: Actuator: 1 NO, Monitor: 2NC
Connector: 1 x 5-pin M12 Bottom, 1 x 5-pin M12 Side
