Limit – Banner – SI-LS83RC10E

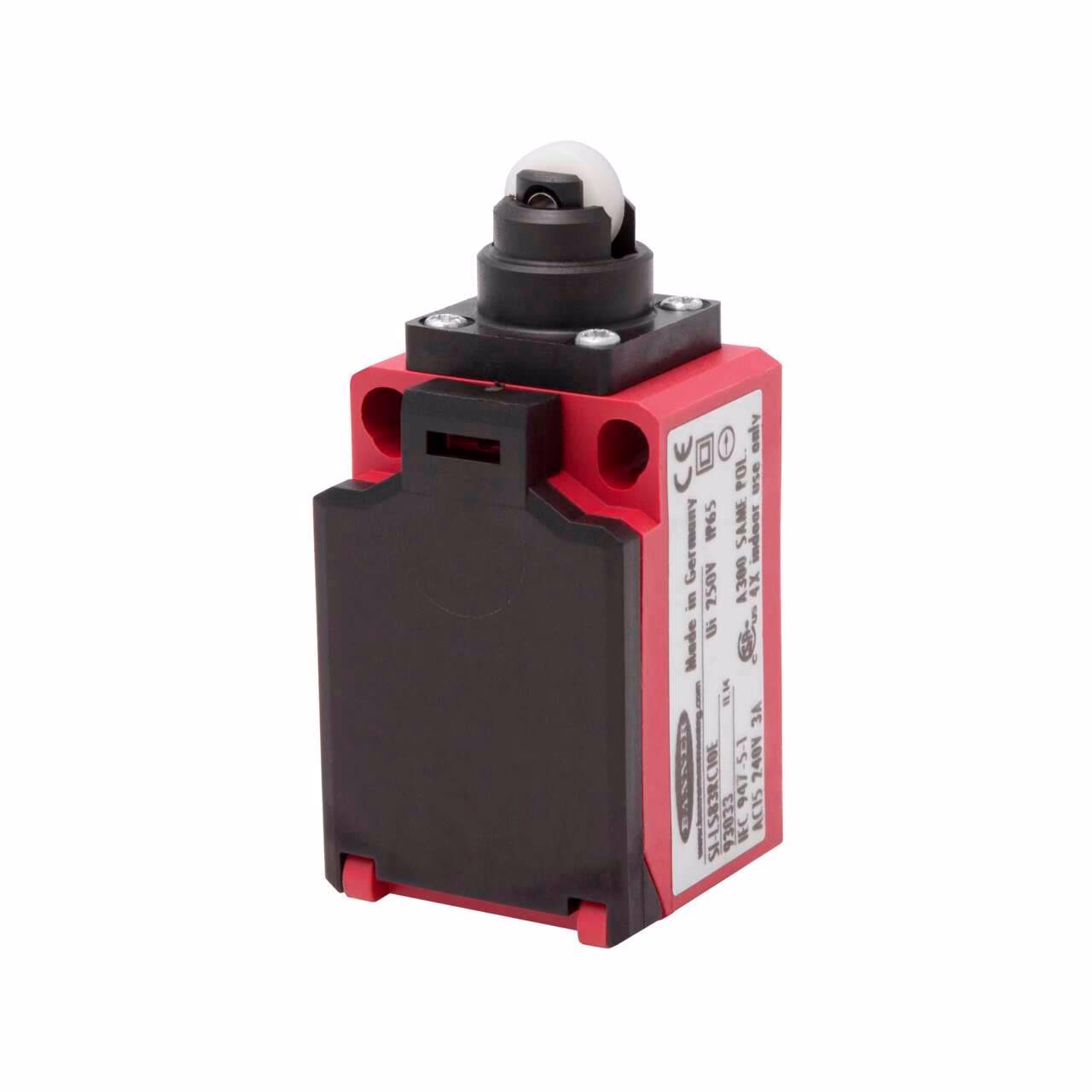

Limit Switch: Plastic Roller Actuator
Contact Configuration: 2 NC
Dimensions: 63 x 30 x 27 mm; Plastic housing
| SISTEMA | B10d = 6 million |
|---|---|
| Actuation | Roller |
| Coding level/tamper protection | Uncoded |
| Design | Rectangular |
| Device type | Limit Switch |
| Feature | Washdown Rated |
| Functional safety (SIL/PL) | SIL CL 3 |
| Item Status | RELEASED |
| Output type | Contacts |
| PL Rating | PL e |
| Protection class shaft | IP65 |
| Receptacle housing material B | Thermoplastic |
| Voltage supply connection | Wiring Chamber |
| Min Op. Temperature (C) | -30.0 |
| Max Op. Temperature (C) | 80.0 |
| In-Series Diagnostics | No |
| ISD Connect Compatible | No |
| Switch Style | Contact |
| Mechanical Life (operations in millions) | 3.0 |
| Device Size | 63 x 30 x 27 |
| Auxilliary Output | No |
| Safety Category | Cat 4 |
| Actuator (Safety) Contacts | 2 NC |
Description
Limit Switch: Plastic Roller Actuator
Contact Configuration: 2 NC
Dimensions: 63 x 30 x 27 mm; Plastic housing
