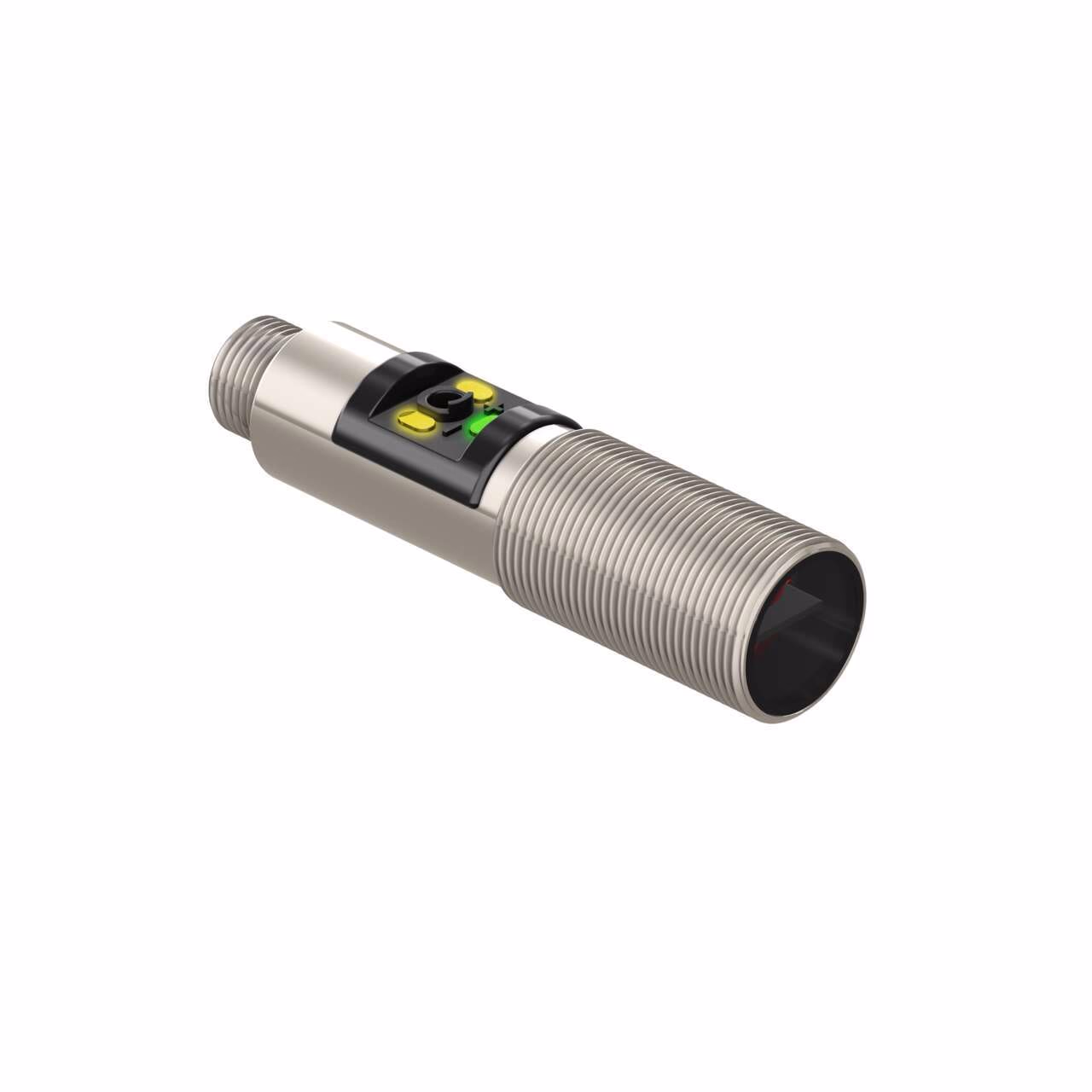

M18-4 Series 18mm Washdown Metal Barrel-Mount Sensor – Banner – M18-4VPRS-Q8
M18-4 Series: Stainless: Receiver with pot
Range: variable to 25 m; Input: 10-30 V dc
Outputs: Complementary PNP
4-pin M12 Integral QD
| Connection | Integral QD |
|---|---|
| Feature: Audible | No |
| Outputs | PNP |
| Sensing Mode (General) | Opposed |
| Adjustments | Potentiometer |
| Connection technology signal | Receiver |
| DeviceNet | No |
| Feature | Chemical Resistant, Ecolab Certified, Quick Disconnect, Washdown Rated |
| Homerun Exit Location | 1.5 |
| Housing Style | Barrel |
| Indicator | LEDs |
| Input/Output | Discrete |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 4 |
| Operating voltage | 10-30 V dc |
| Operation | Light/Dark Operate |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67, IP68, IP69K |
| Receptacle housing material B | Stainless Steel |
| Sensing Beam | Visible Red LED |
| Min Op. Temperature (C) | -40.0 |
| NEMA / UL Type Rating | NEMA 4X |
| Delay at Power-up (ms) | 100 |
| Max Sensing Distance (mm) | 25000.0 |
| Max Op. Temp. (C) | 70 |
| Max Op. Relative Humidity (%) | 95% @ 50°C |
| Barrel Diameter (mm) | 18.0 |
| Opposed Mode Emitter/Receiver | Receiver |
Description
M18-4 Series: Stainless: Receiver with pot
Range: variable to 25 m; Input: 10-30 V dc
Outputs: Complementary PNP
4-pin M12 Integral QD
