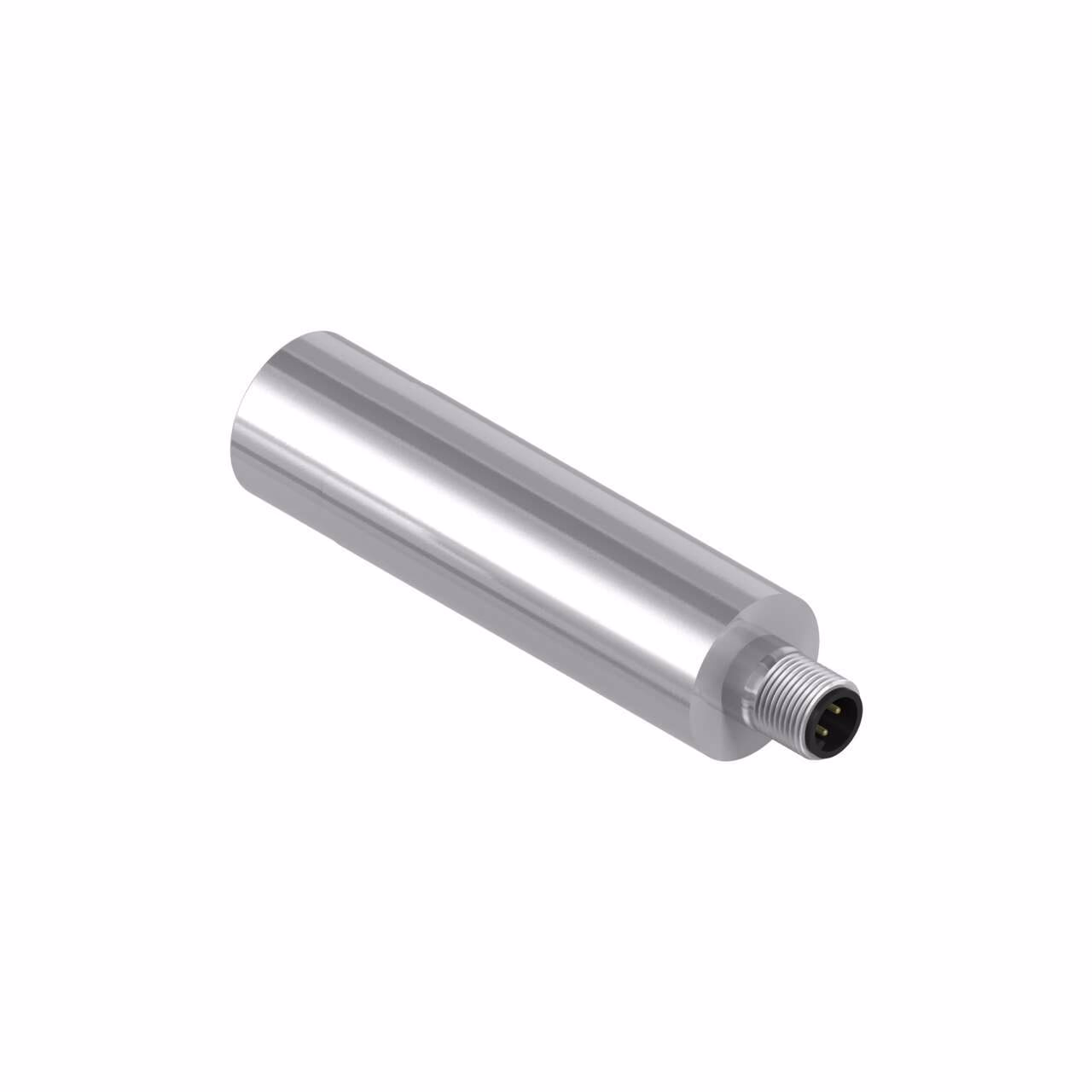

M25U Stainless Steel IP69K Ultrasonic Sensor – Banner – M25URBQ8
M25U Series Ultrasonic Receiver
Range: 500 mm (Normal Speed); 250 mm (High Speed); Input: 10-30 V dc
Rating: IP69K; Output: Bipolar (1 NPN & 1 PNP)
5-pin M12 QD
| Connection | Integral QD |
|---|---|
| Discrete (Switched) Outputs | Bipolar (NPN & PNP) |
| Jam Detection | No |
| Laser Control | No |
| PC Configurable | No |
| PFM Output | No |
| Sensing Mode (General) | Opposed |
| Ultrasonic Frequency (kHz) | 140 |
| Connection technology signal | Receiver |
| Device type | Sensor |
| EPLAN Status | Published |
| Feature | Chemical Resistant, Clear Object Detection, Ecolab Certified, Quick Disconnect |
| Housing Style | Barrel |
| Input/Output | Discrete |
| Item Status | RELEASED |
| Number of pins | 5 |
| Operating voltage | 10-30 V dc |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67, IP69K |
| Receptacle housing material B | Stainless Steel |
| RS-232 | No |
| Screw-in thread | M25 |
| Sensing Beam | Ultrasonic |
| NEMA / UL Type Rating | NEMA 4X |
| Max Sensing Distance (mm) | 500 |
Description
M25U Series Ultrasonic Receiver
Range: 500 mm (Normal Speed); 250 mm (High Speed); Input: 10-30 V dc
Rating: IP69K; Output: Bipolar (1 NPN & 1 PNP)
5-pin M12 QD
