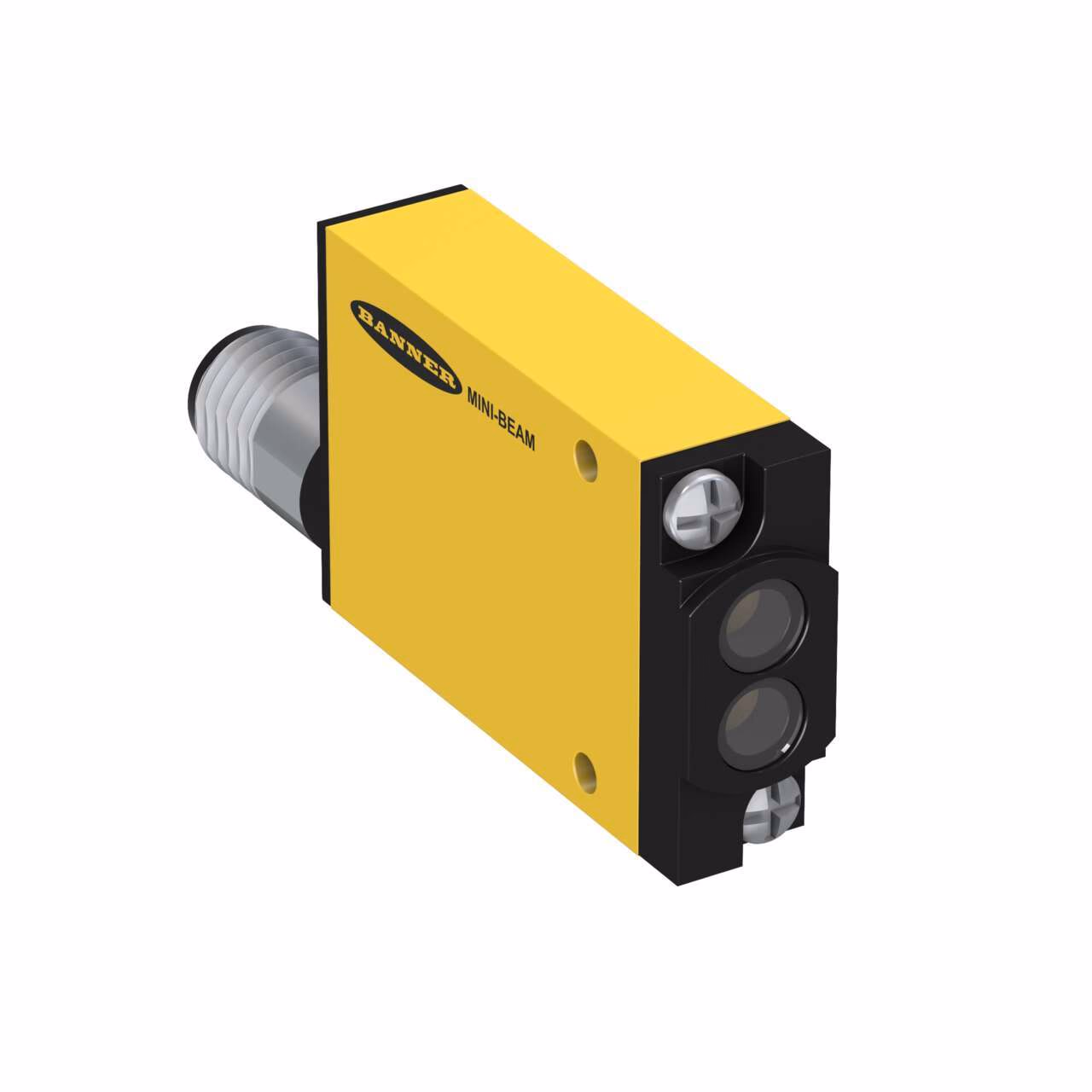

Mini-Beam Series Industry Standard Sensor – Banner – MIAD9WQ
MINI-BEAM NAMUR: Divergent Diffuse
Range: 75 mm; Input: 5-15 V dc
Output: NAMUR
4-pin M12 Integral QD
| Connection | Integral QD |
|---|---|
| Feature: Audible | No |
| Outputs | Constant Current |
| Sensing Mode (General) | Proximity |
| Adjustments | Potentiometer |
| Connection technology signal | Divergent |
| DeviceNet | No |
| EPLAN Original Sent Date | 01/11/2023 |
| EPLAN Status | Published |
| Feature | Encapsulated, Hazardous Area, Quick Disconnect |
| Homerun Exit Location | 5 |
| Housing Style | Rectangular |
| Indicator | LEDs |
| Input/Output | Discrete |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 4 |
| Operating voltage | 5-15 V dc |
| Operation | Light/Dark Operate |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Infrared LED |
| Min Op. Temperature (C) | -40 |
| NEMA / UL Type Rating | NEMA 4X |
| Max Sensing Distance (mm) | 75 |
| Max Op. Temp. (C) | 70 |
| Max Op. Relative Humidity (%) | 90% @ 50°C |
| Special feature | Intrinsically Safe |
Description
MINI-BEAM NAMUR: Divergent Diffuse
Range: 75 mm; Input: 5-15 V dc
Output: NAMUR
4-pin M12 Integral QD
