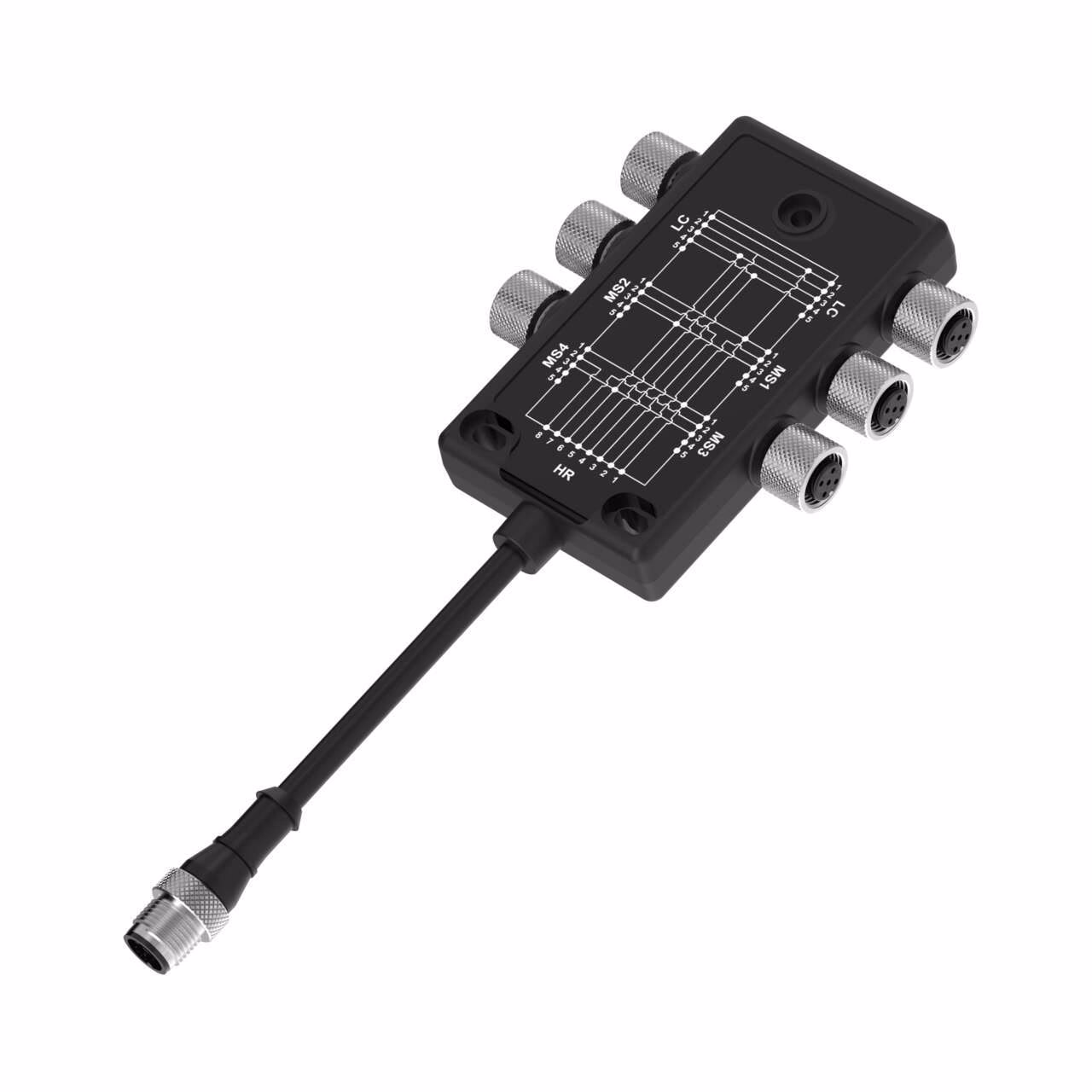

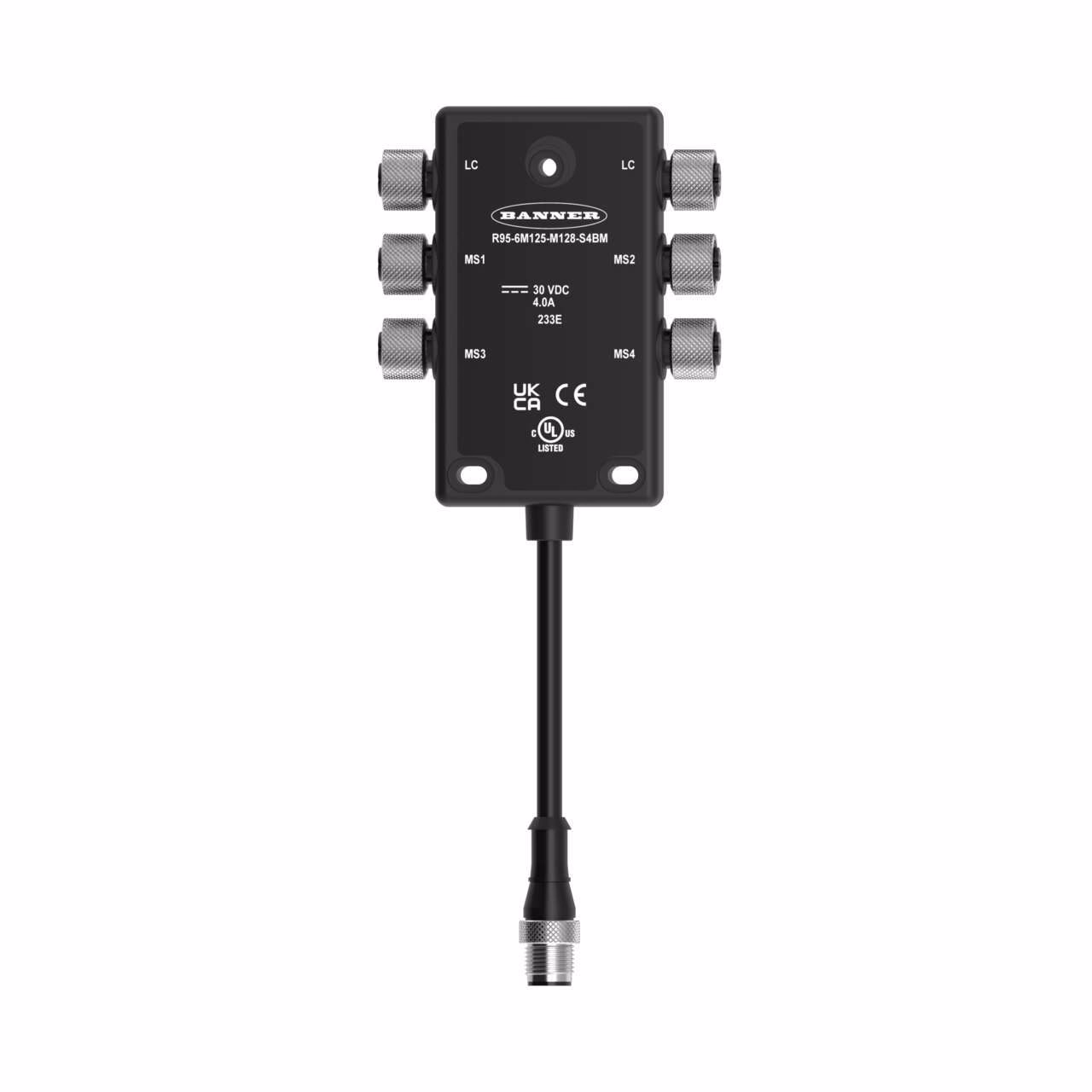

Mute Blocks – Banner – R95-6M125-M128-S4BM
R95 Molded Junction Block with 8-pin M12 Male Connector
6 Female 5-pin M12 Ports
Male 8-pin M12 Pigtail Homerun
Muting Sensor Option for S4B
| Input Connection Type | Integral QD |
|---|---|
| Housing Style | R95 |
| Item Status | RELEASED |
| Operating voltage | 30 V dc |
| Protection class shaft | IP67 |
| Min Op. Temperature (C) | -40.0 |
| High Temperature (up to 100 C) | 70.0 |
| Output QD Type | M12 |
| Output Connection | M12 A Code |
| Number of Output Connections | 1.0 |
Description
R95 Molded Junction Block with 8-pin M12 Male Connector
6 Female 5-pin M12 Ports
Male 8-pin M12 Pigtail Homerun
Muting Sensor Option for S4B
