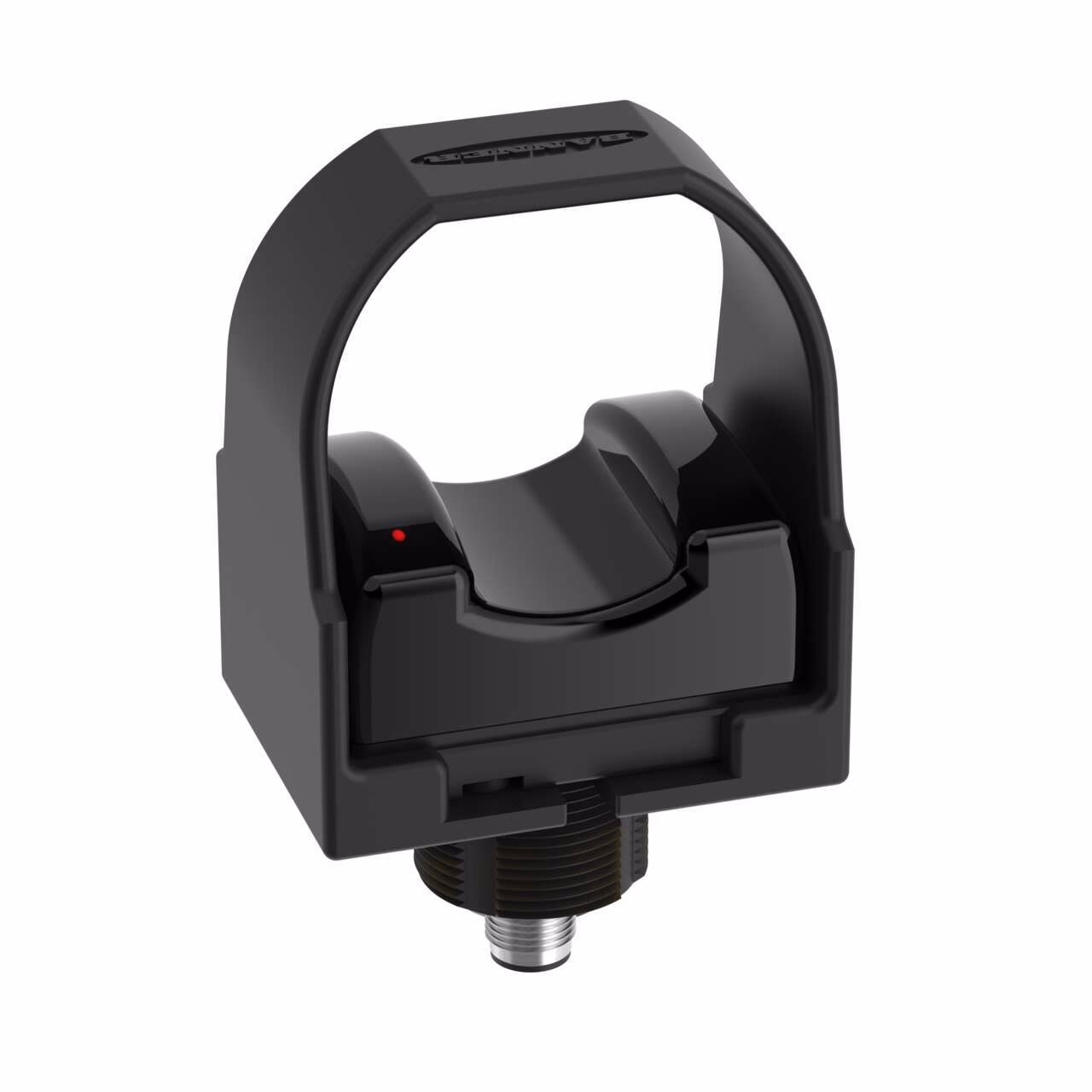

OTB Series Optical Touch Buttons – Banner – OTBVP6QDH
OTB Series: Momentary Action Touch Button w/Black F.C.
Input: 10-30 V dc; Upper Housing: Polysulfone
Output: Complementary PNP
M12 Integral QD
| Connection | Integral QD |
|---|---|
| Feature: Audible | No |
| Input Type | PNP |
| Primary Housing Color | Black |
| Secondary Material | Thermoplastic |
| Sensing Mode (General) | Single Point Optical |
| Actuation | Yes |
| Button Operation | Momentary |
| Cable color | Black |
| Environmental Rating | IP66 |
| EPLAN Original Sent Date | 04/21/2022 |
| EPLAN Status | Published |
| Eye Shield | No |
| Feature | Quick Disconnect |
| Housing Style | Base Mount – Saddle |
| Indication | No |
| Item Status | RELEASED |
| Light type | No |
| Max Op. Relative Humidity Non-Condensing (%) | 90% @ 50°C |
| Mounting | M30 x 1.5 |
| Non-Illuminated | Yes |
| Number of beams | 1 |
| Number of Conductors | 4 |
| Operating mode | Optical |
| Operating voltage | 10-30 V dc |
| Operation | Normally Open/Normally Closed |
| Output type | PNP |
| PFM Input | No |
| Physical Dimensions (LxWxH or DxH mm) | 59.9 x 43.2 x 48.0 |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP66 |
| Radio interface | No |
| Receptacle housing material B | Thermoplastic Polysulfone |
| Min Op. Temperature (C) | -20 |
| NEMA / UL Type Rating | NEMA 1, 3, 4, 4X, 12, 13 |
| High Temperature (up to 100 C) | 50 |
| Product Size (mm) | Other |
| Touchscreen | No |
| USB | No |
| Max Input Response Time (ms) | 100 |
| Max Output Response Time (ms) | 100 |
Description
OTB Series: Momentary Action Touch Button w/Black F.C.
Input: 10-30 V dc; Upper Housing: Polysulfone
Output: Complementary PNP
M12 Integral QD
