Panel Mount Emergency Stop Button – Banner – SSA-EB1PS1-02-A01

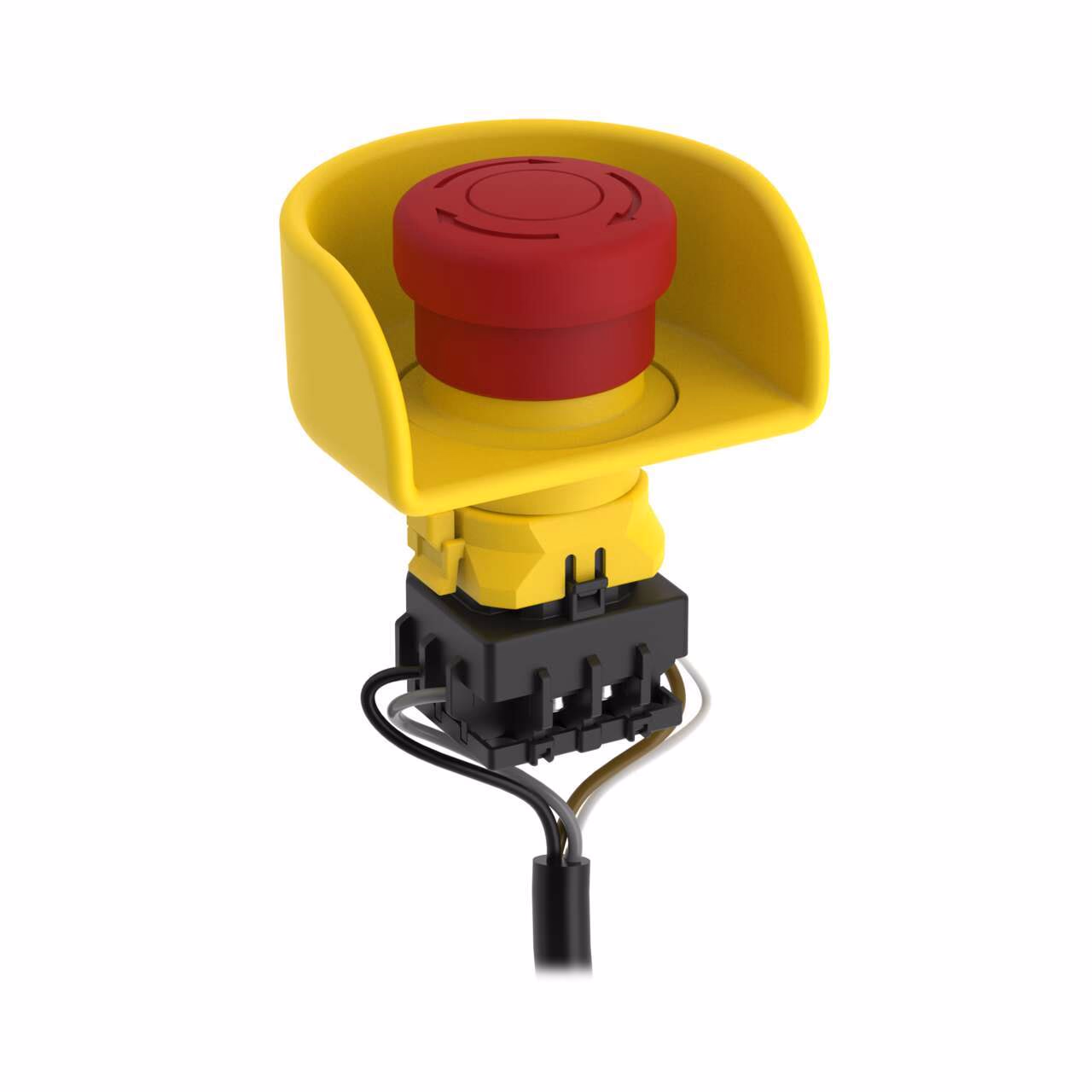

SSA-EB1 Panel-mount Emergency Stop Push Button
ISD Connect Compatible
40 mm Actuator
Contacts: 2NC
M12 Integral QD Pigtail; 30 mm Mounting Hole
ESC-1-YW Button Shroud Included
| Button Diameter (mm) | 40.0 |
|---|---|
| Connection | Integral QD |
| Contact Quantity | 2 NC |
| Contact Rating | 2 A @ 24 V dc |
| Dimensions (HxWxD mm ) | 81 x 37 x 40 |
| ISD Connect Compatible | Yes |
| Max Operating Temperature (C) | 60.0 |
| Min Operating Temperature (C) | -25.0 |
| Mounting Thread/Style | Panel |
| Actuation | Twist/Pull-to-Release |
| Device type | Push Button |
| EPLAN Original Sent Date | 10/18/2024 |
| EPLAN Status | Published |
| Feature | Quick Disconnect |
| Housing Style | Base |
| Item Status | RELEASED |
| Protection class shaft | IP65 |
| Receptacle housing material A | Thermoplastic |
| Receptacle housing material B | Polycarbonate |
| Voltage supply connection | M12 |
| Options Available | Push Buttons |
Description
SSA-EB1 Panel-mount Emergency Stop Push Button
ISD Connect Compatible
40 mm Actuator
Contacts: 2NC
M12 Integral QD Pigtail; 30 mm Mounting Hole
ESC-1-YW Button Shroud Included
