30 mm Mount Emergency Stop Buttons – Banner – SSA-EB1PLXYS1-02ECQ5B

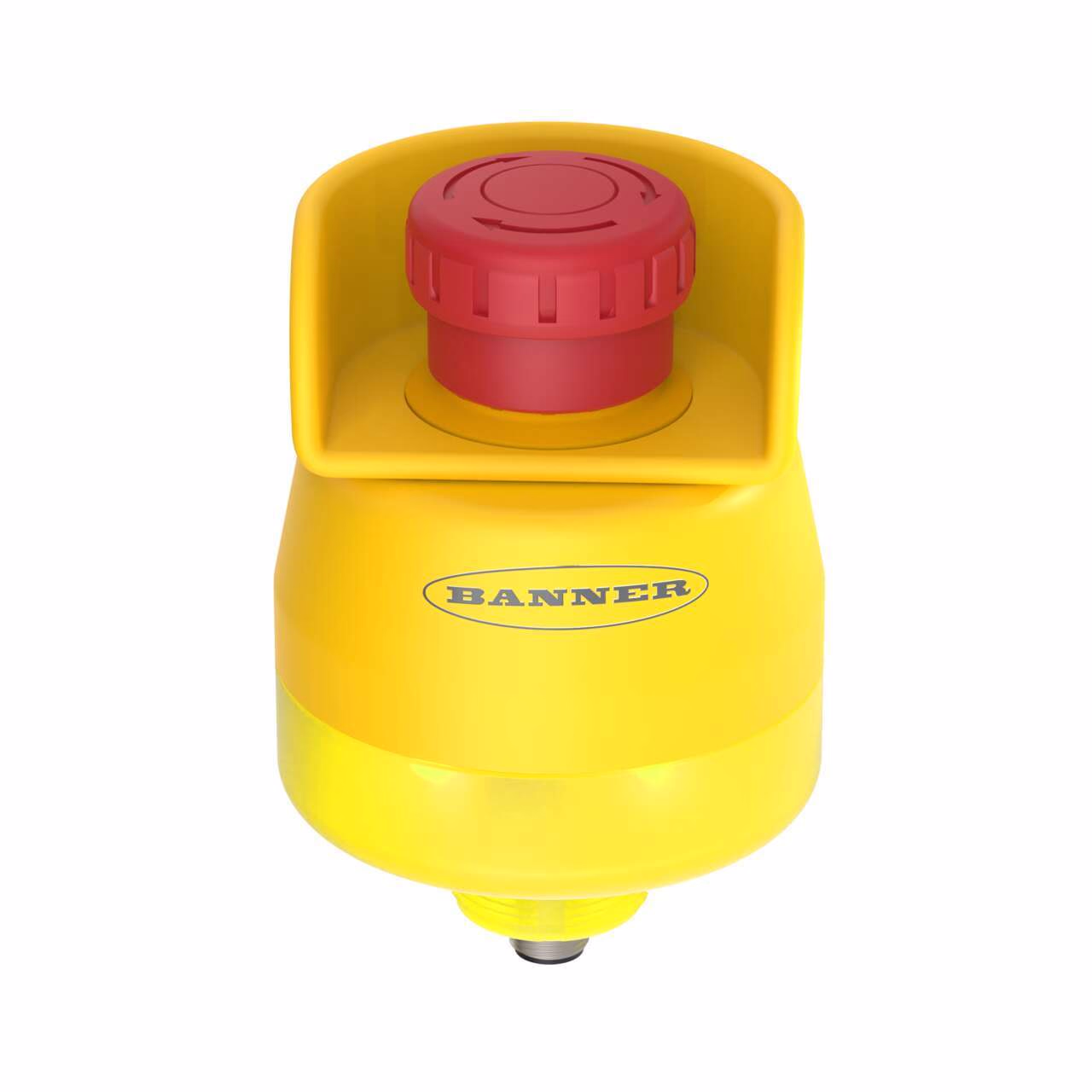

SSA-EB1 30 mm Mount Emergency Stop Push Button
Yellow-Flash Illuminated Base; 40 mm Actuator
IP65; Contacts: 2 NC; 5-pin M12 Integral QD
Safety BUS Node Compatible CH1=pins1&4 CH2=pins2&5
ESC-1-YW Button Shroud Installed
| Actuated Color | Yellow – Flash |
|---|---|
| Armed Color (Solid) | OFF |
| Button Diameter (mm) | 40.0 |
| Connection | Integral QD |
| Contact Quantity | 2 NC |
| Contact Rating | 2 A @ 24 V dc |
| Dimensions (HxWxD mm ) | 120 x 80 |
| Illumination Type | Base |
| Max Operating Temperature (C) | 55.0 |
| Min Operating Temperature (C) | -25.0 |
| Mounting Thread/Style | 30 mm |
| Actuation | Twist/Pull-to-Release |
| Device type | Push Button |
| EPLAN Original Sent Date | 10/18/2024 |
| EPLAN Status | Published |
| Feature | Illuminated, Quick Disconnect |
| Housing Style | Base |
| Item Status | RELEASED |
| Operating voltage | 12-30 V dc |
| Protection class shaft | IP65 |
| Receptacle housing material A | Thermoplastic |
| Receptacle housing material B | Polycarbonate |
| Voltage supply connection | M12 |
| Options Available | Push Buttons |
Description
SSA-EB1 30 mm Mount Emergency Stop Push Button
Yellow-Flash Illuminated Base; 40 mm Actuator
IP65; Contacts: 2 NC; 5-pin M12 Integral QD
Safety BUS Node Compatible CH1=pins1&4 CH2=pins2&5
ESC-1-YW Button Shroud Installed
