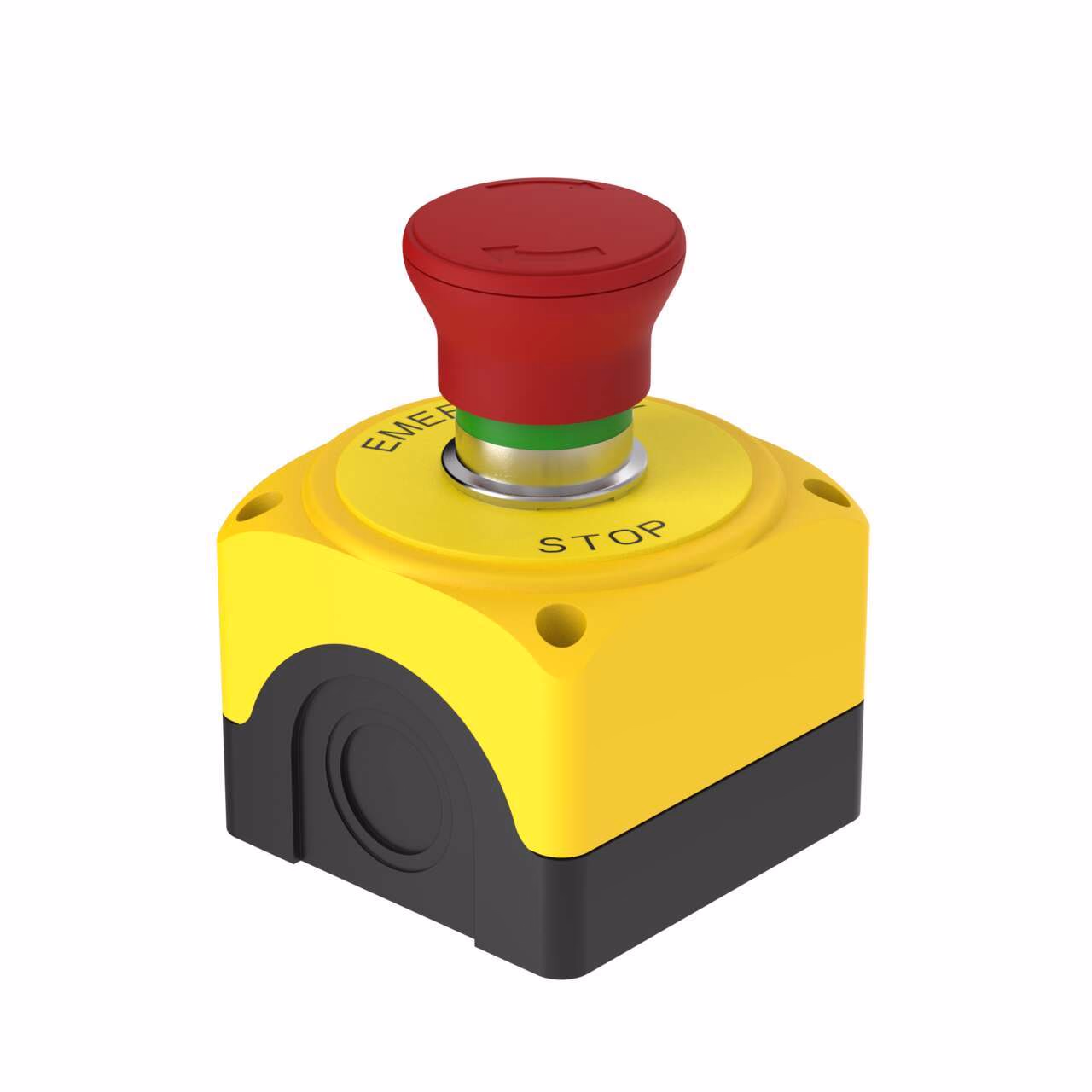

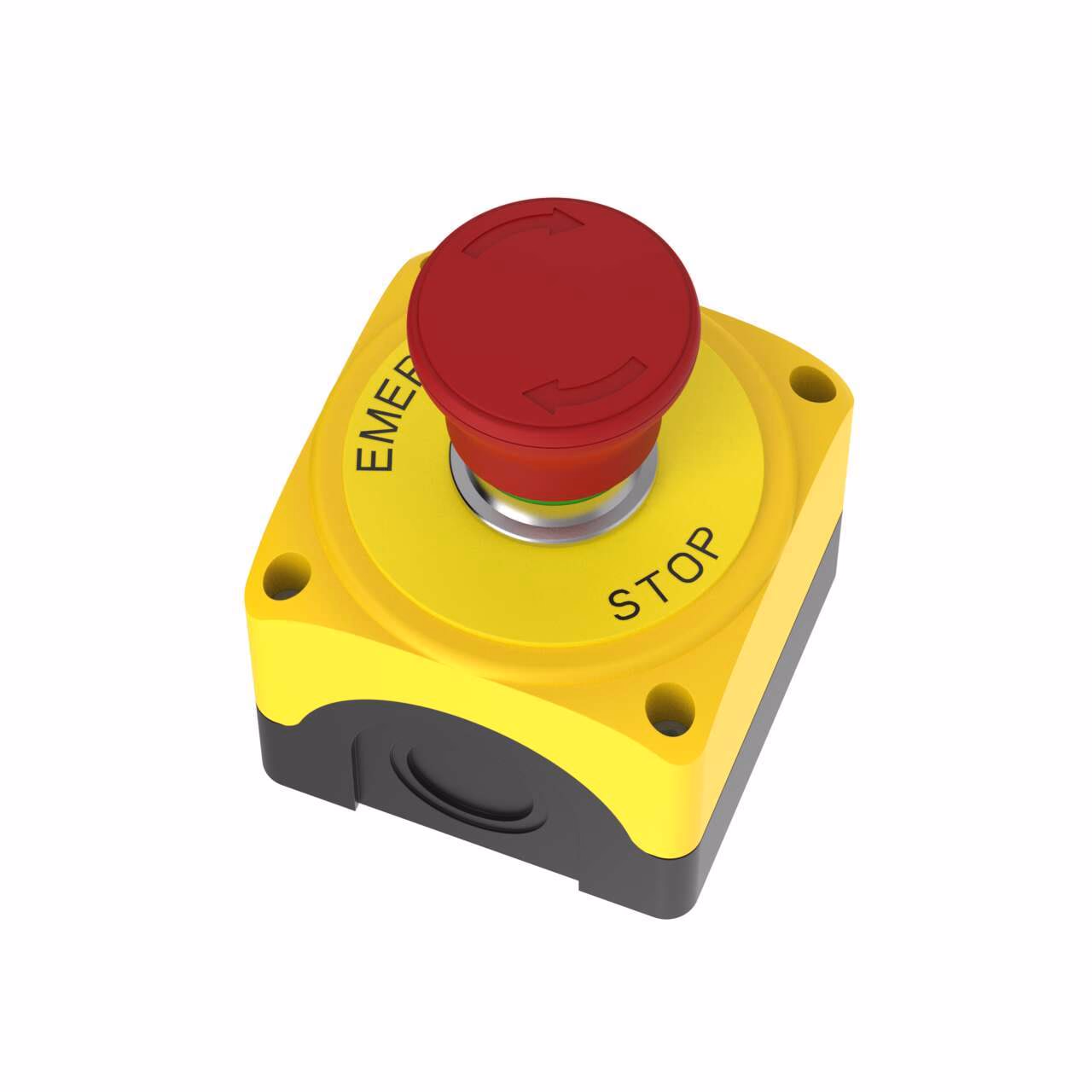

Panel Mount Emergency Stop Button – Banner – SSA-EBM-12E
22 mm Metal E-Stop Button Kit
Kit Includes: 40 mm Actuator on Metal Shaft
Metal Mounting Adapter, 2 NC & 1 NO Contacts
70 mm x 70 mm x 56 mm Plastic Enclosure, E-Stop Legend
| Button Diameter (mm) | 40 |
|---|---|
| Contact Quantity | 2 NC, 1 NO |
| Contact Rating | 2 A @ 24 V dc |
| Dimensions (HxWxD mm ) | 105 x 70 x 70 |
| In-Series Diagnostics | No |
| Max Operating Temperature (C) | 60 |
| Min Operating Temperature (C) | -25 |
| Mounting Thread/Style | Flat |
| Actuation | Twist-to-Release |
| Device type | Push Button |
| EPLAN Original Sent Date | 10/18/2024 |
| EPLAN Status | Published |
| Housing Style | Base |
| Item Status | RELEASED |
| Protection class shaft | IP65 |
| Receptacle housing material A | Thermoplastic |
| Receptacle housing material B | Polycarbonate |
Description
22 mm Metal E-Stop Button Kit
Kit Includes: 40 mm Actuator on Metal Shaft
Metal Mounting Adapter, 2 NC & 1 NO Contacts
70 mm x 70 mm x 56 mm Plastic Enclosure, E-Stop Legend
