Pinout Adapters – Banner – S15A-F2X54X-MX1X43-Q
S15 A Series: In-Line Adapter
Voltage: 12-30 V dc; IP67
Female: F2X54X; Male: MX1X43
Male-Female 5-pin M12 QD
| Connector 2 Gender | Male |
|---|---|
| Connector B | Female |
| Item Status | RELEASED |
| Protection class shaft | IP65, IP67, IP68 |
| Setting option | Pass Through |
| IO-Link Device | No |
| Modbus Server | No |
| Connector 1 | Integral M12 |
| Function | Wiring Adapter |
| IO-Link Master | No |
| Form Factor | S15 |
| Modbus Client | No |
| Input | Pass Through |
| Device Size (mm) | 15 x 58 |
| Connector 1 Pin Count | 5.0 |
| Connector 2 | Integral M12 |
| Connector 2 Pin Count | 5.0 |

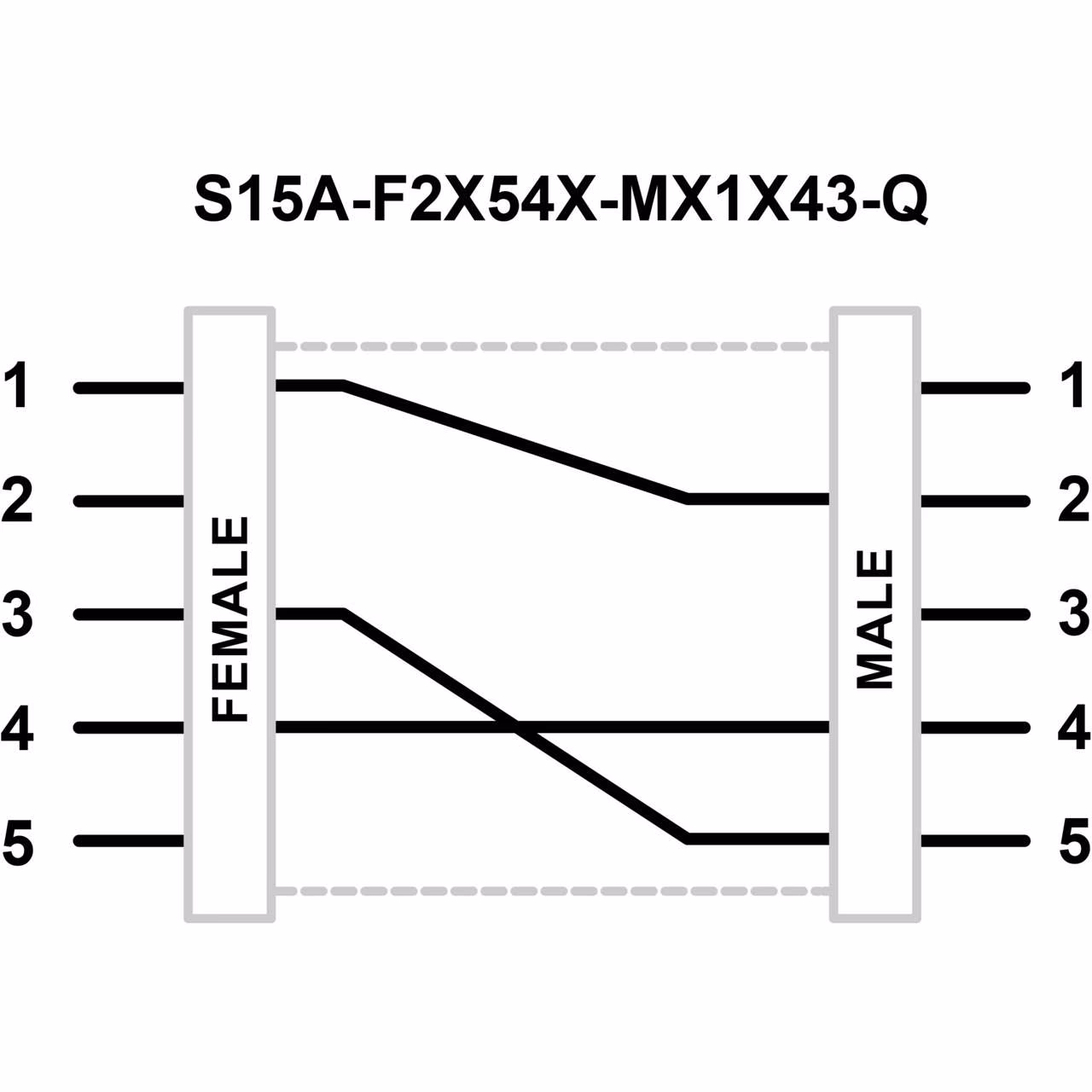

| Female Pin 4 Destination | 4 |
| Female Pin 2 Destination | NC |
| Female Pin 5 Destination | NC |
| Female Pin 1 Destination | 2 |
| Female Pin 3 Destination | 5.0 |
Description
S15 A Series: In-Line Adapter
Voltage: 12-30 V dc; IP67
Female: F2X54X; Male: MX1X43
Male-Female 5-pin M12 QD
