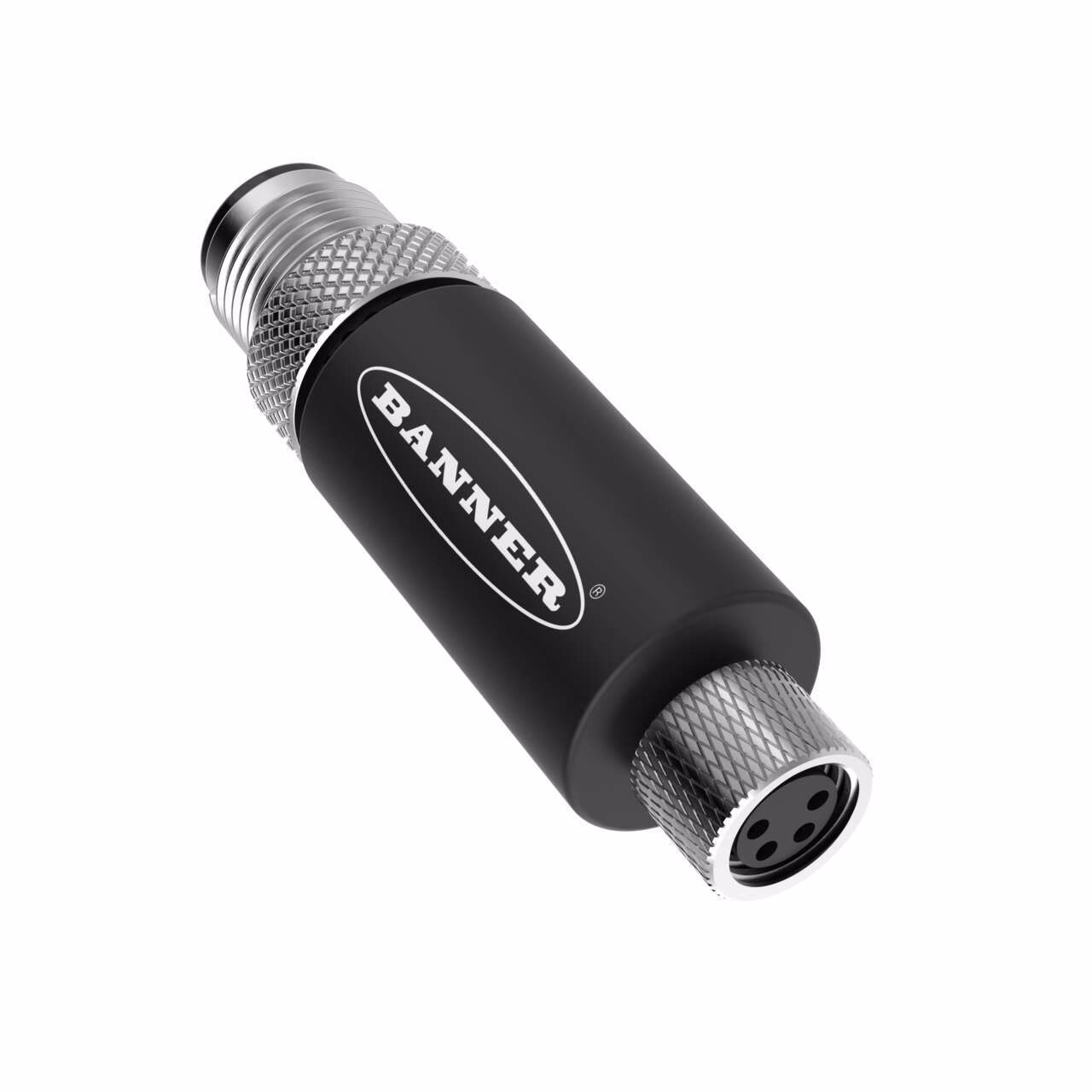

Pinout Adapters – Banner – S15A-M12M4M8F4
S15 A Series: In-Line Adapter
Voltage: 12-30 V dc; IP67
M12 Male 4-pin to M8 Female 4-pin
| Connector 2 Gender | Female |
|---|---|
| Connector B | Male |
| EPLAN Original Sent Date | 01/29/2024 |
| EPLAN Status | Published |
| Item Status | RELEASED |
| Protection class shaft | IP65, IP67, IP68 |
| Setting option | Pass Through |
| IO-Link Device | No |
| Modbus Server | No |
| Connector 1 | Integral M12 |
| Function | Converter |
| IO-Link Master | No |
| Form Factor | S15 |
| Modbus Client | No |
| Input | Pass Through |
| Device Size (mm) | 15 x 58 |
| Connector 1 Pin Count | 4.0 |
| Connector 2 | Integral M8 |
| Connector 2 Pin Count | 4.0 |
Description
S15 A Series: In-Line Adapter
Voltage: 12-30 V dc; IP67
M12 Male 4-pin to M8 Female 4-pin
