Plastic Compact Safety Interlock Switches – Banner – SI-LS100F

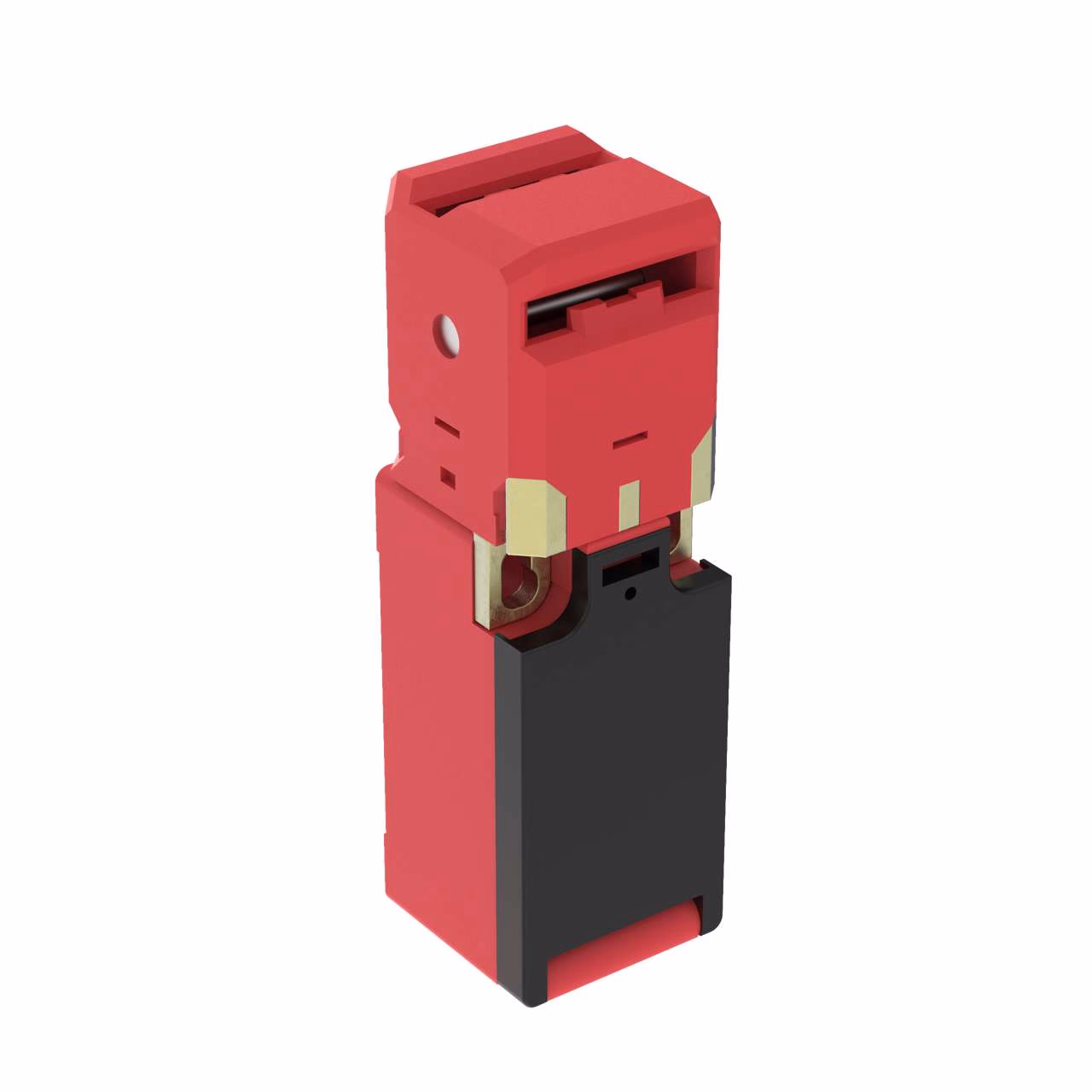

SI-LS100F Limit-Style Machine Safety Switch Interlock Body; Two N.C. One N.O.
| Actuator (Safety) Contacts | 2 NC/1 NO |
|---|---|
| Auxilliary Output | No |
| Device Size | 100 x 30 x 31 |
| ISD Connect Compatible | No |
| In-Series Diagnostics | No |
| Mechanical Life (operations in millions) | 1 |
| SISTEMA | B10d = 2 million |
| Safety Category | Cat 4 |
| Switch Style | Contact |
| Coding level/tamper protection | Low |
| Design | Rectangular |
| Device type | Mechanical – Sensor |
| EPLAN Original Sent Date | 02/25/2026 |
| EPLAN Status | Pending Publish |
| Functional safety (SIL/PL) | SIL CL 3 |
| Item Status | RELEASED |
| Output type | Contacts |
| PL Rating | PL e |
| Protection class shaft | IP65 |
| Receptacle housing material B | Thermoplastic |
| Min Op. Temperature (C) | -30 |
| Max Op. Temperature (C) | 80 |
| Voltage supply connection | Wiring Chamber |
Description
SI-LS100F Limit-Style Machine Safety Switch Interlock Body; Two N.C. One N.O.
