PM Series – Wire Replacement – Banner – DX80K2M6-PM2

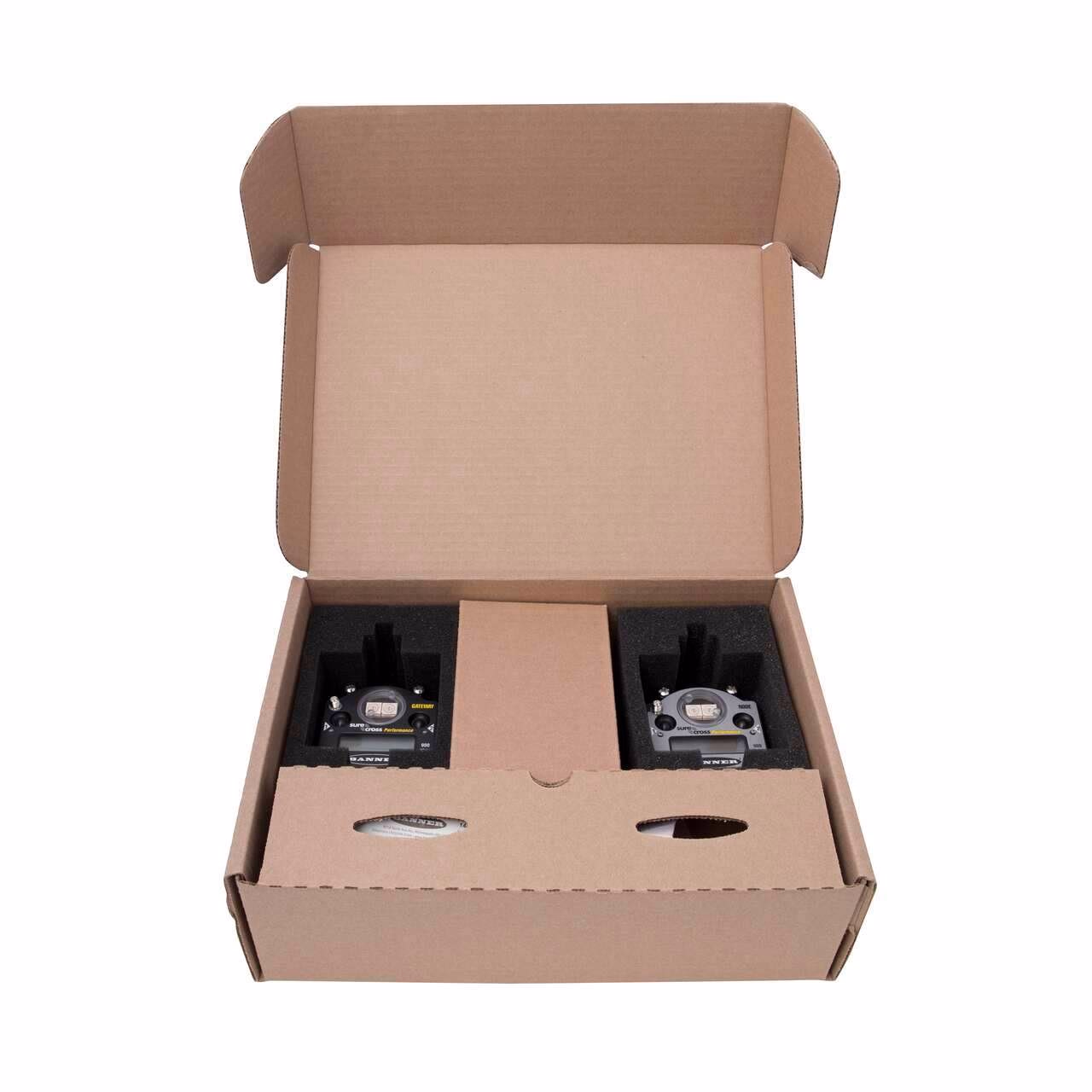

PM2 Series Kit
Includes one gateway and one node
pre-mapped and pre-bound
2.4 GHz 100 mW
LCD Selectable I/O Mapping
IP67 / NEMA 6
In: Four selectable NPN/PNP Discrete; Two 0-20 mA
| 1-wire Serial Interface | No |
|---|---|
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Discrete Inputs | 4 |
| Discrete Outputs | 4 |
| LCD Display | Yes |
| Max Operating Temperature (C) | 85.0 |
| Max Temp Operating Conditions (C) | 85.0 |
| Min Operating Temperature (C) | -40.0 |
| Min Temp Operating Conditions (C) | -40.0 |
| Output Details | 4 Sourcing Discrete, 2 0-20mA Analog |
| Point-to-Multipoint Topology | Yes |
| Point-to-Point Topology | Yes |
| Star Topology | Yes |
| Tree Topology | No |
| Wireless Radio Frequency | 2.4 GHz |
| Cert | Australia/New Zealand, Brazil, Canada, Korea, Taiwan, Thailand, US |
| Connection mode | 4 Selectable Discrete, 2 0-20 mA Analog |
| Device type | Kit |
| EtherNet/IP | No |
| Housing Style | Enclosed Terminals |
| Input/Output | Analog & Discrete |
| Intrinsically Safe | No |
| Item Status | RELEASED |
| Modbus RTU | Yes |
| Operating voltage | 10-30 V dc |
| Power Good Output | DC |
| PROFINET | No |
| Protection class shaft | IP67 |
| Radio interface | Yes |
| RS-232 | No |
| RS-485 | Yes |
| NEMA / UL Type Rating | NEMA 4X |
Description
PM2 Series Kit
Includes one gateway and one node
pre-mapped and pre-bound
2.4 GHz 100 mW
LCD Selectable I/O Mapping
IP67 / NEMA 6
In: Four selectable NPN/PNP Discrete; Two 0-20 mA
