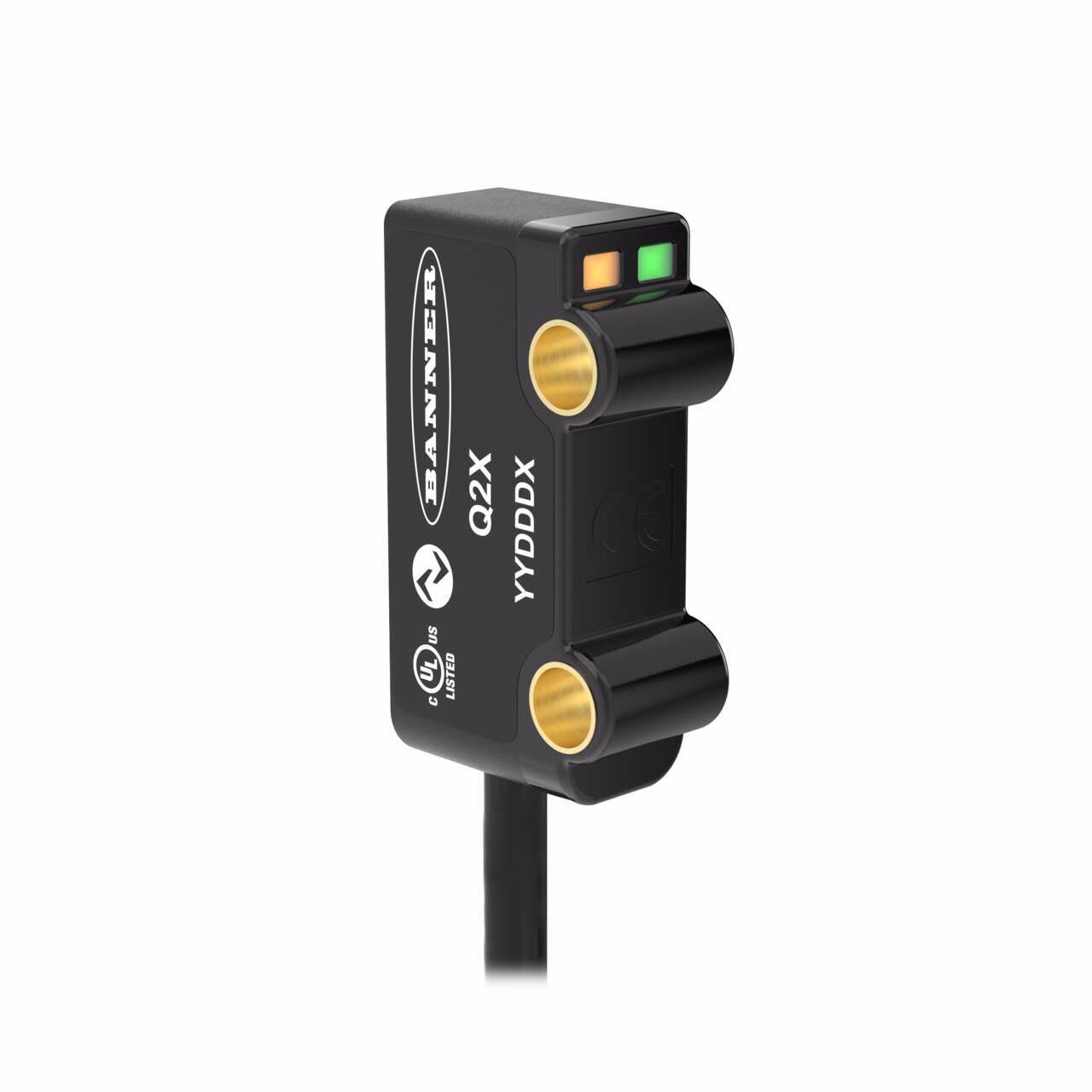

Q2X Series Miniature Sensor – Banner – Q2XABFF15-2M
Q2X Fixed Field
Range: 15 mm; Input 10-30 V dc
Output: LO (Light Operate), Bipolar: 1 NPN, 1 PNP
2 m (6.5 ft) Cable
| Connection | Flying Leads |
|---|---|
| Outputs | Bipolar (NPN & PNP) |
| Sensing Mode (General) | Proximity |
| Connection technology signal | Background Suppression (Fixed) |
| DeviceNet | No |
| EPLAN Original Sent Date | 02/15/2024 |
| EPLAN Status | Published |
| Homerun Exit Location | 0.85 |
| Housing Style | Rectangular |
| Indicator | LEDs |
| Input/Output | Discrete |
| IO Link | No |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 4 |
| Operating voltage | 10-30 V dc |
| Operation | Light Operate |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | ABS/Polycarbonate |
| Sensing Beam | Visible Red LED |
| Sensing Beam Wavelength | 645 |
| Slot width (mm) | 2 |
| Small Visible Spot | LED |
| Min Op. Temperature (C) | -25.0 |
| NEMA / UL Type Rating | NEMA 4X |
| Delay at Power-up (ms) | 120 |
| Max Sensing Distance (mm) | 15.0 |
| Max Op. Temp. (C) | 50 |
| Max Op. Relative Humidity (%) | 95% @ 50°C |
Description
Q2X Fixed Field
Range: 15 mm; Input 10-30 V dc
Output: LO (Light Operate), Bipolar: 1 NPN, 1 PNP
2 m (6.5 ft) Cable
