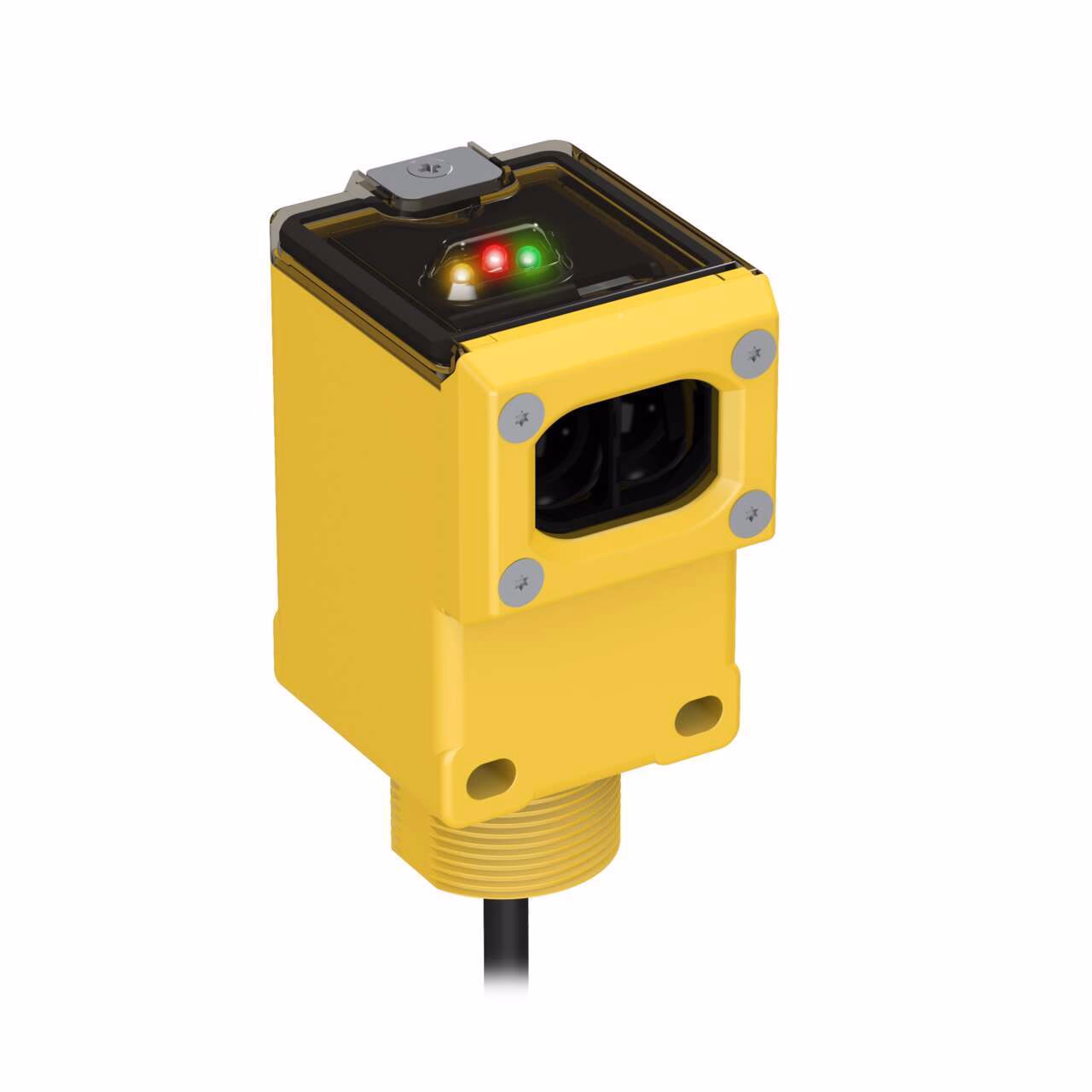

Q45 Series Rugged Rectangle Sensor – Banner – Q45AD9R W/30
Q45 NAMUR: Receiver
Range: 6 m; Input: 5-15 V dc
Output: NAMUR
9 m (30 ft) Cable
| Connection | Cable |
|---|---|
| Feature: Audible | No |
| Outputs | Constant Current |
| Sensing Mode (General) | Opposed |
| Adjustments | Potentiometer |
| Connection technology signal | Receiver |
| DeviceNet | No |
| Feature | Hazardous Area |
| Homerun Exit Location | 2 ON/0.4 OFF |
| Housing Style | Rectangular |

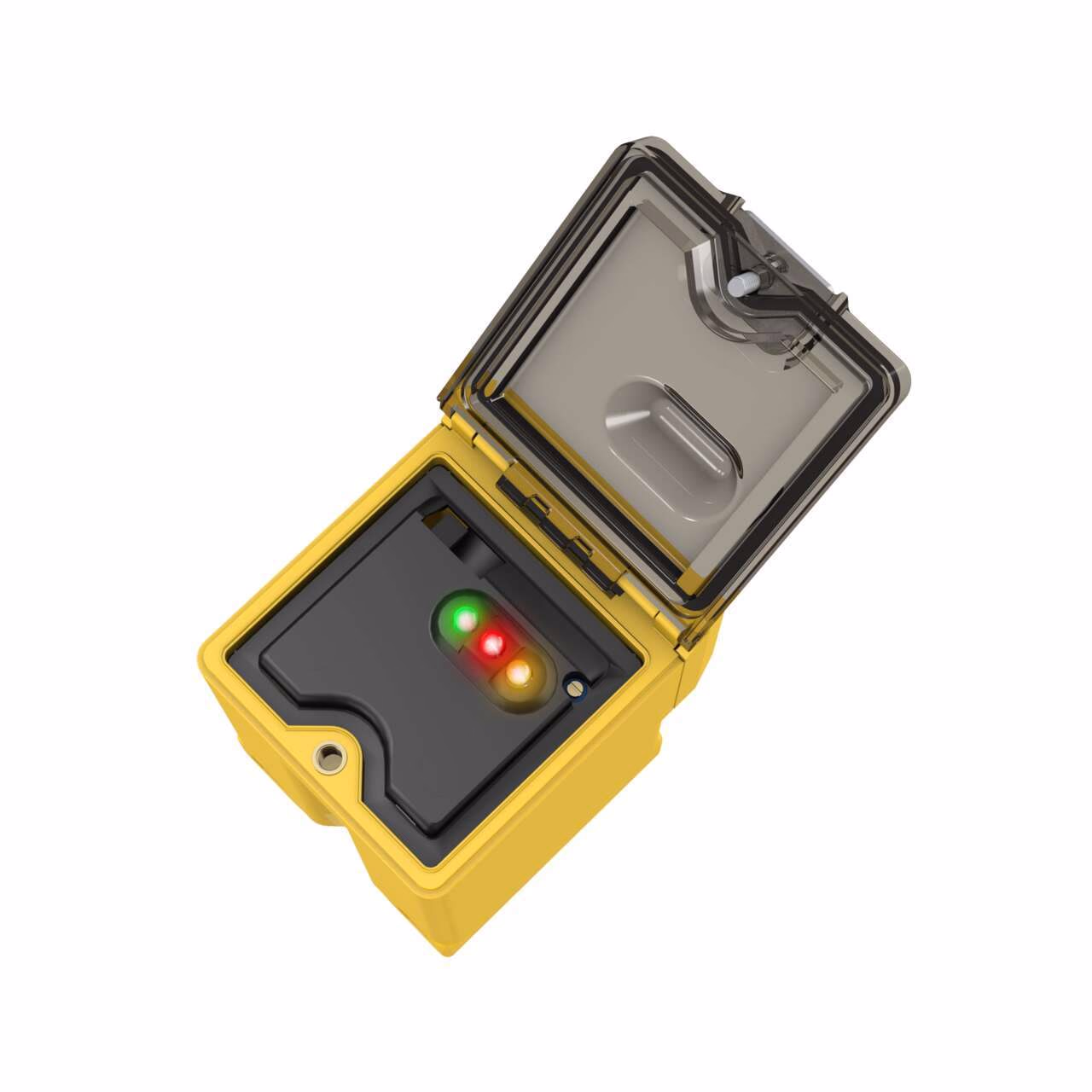

| Indicator | LEDs |
| Input/Output | Discrete |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 2 |
| Operating voltage | 5-15 V dc |
| Operation | Light/Dark Operate |
| Opposed Mode Emitter/Receiver | Receiver |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Infrared LED |
| Min Op. Temperature (C) | -40 |
| NEMA / UL Type Rating | NEMA 4X |
| Slot width (mm) | 9 |
| Max Sensing Distance (mm) | 6000 |
| Max Op. Temp. (C) | 70 |
| Max Op. Relative Humidity (%) | 90% @ 50°C |
| Barrel Diameter (mm) | 30 |
| Special feature | Intrinsically Safe |
Description
Q45 NAMUR: Receiver
Range: 6 m; Input: 5-15 V dc
Output: NAMUR
9 m (30 ft) Cable
