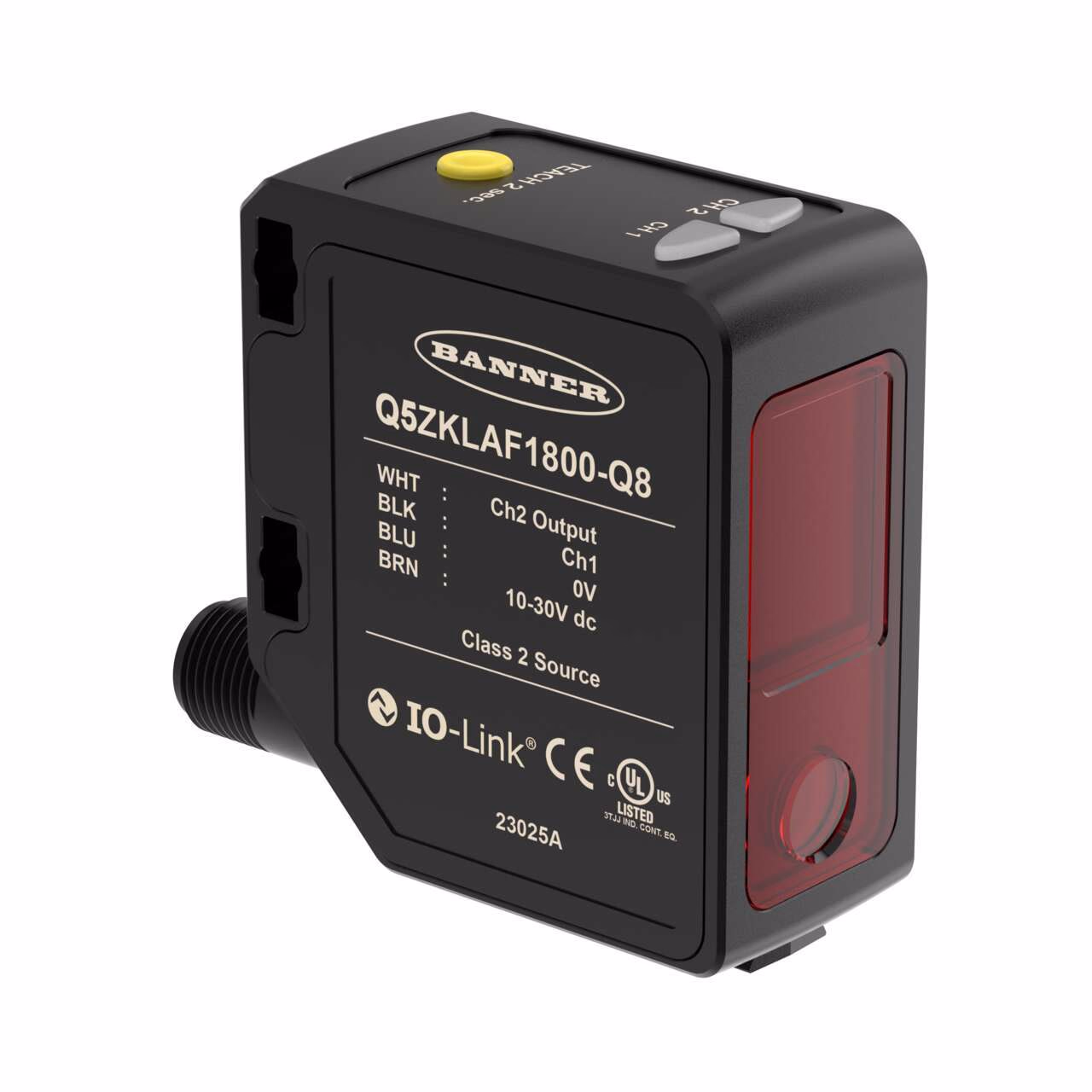

Q5Z Laser Measurement Sensor – Banner – Q5ZKLAF1800-Q8
Q5Z Series: Laser Adjustable Field
Range: 95-1800 mm; Input: 10-30 V dc
Output: 1 PNP/NPN with IO-Link; 1 LO PNP

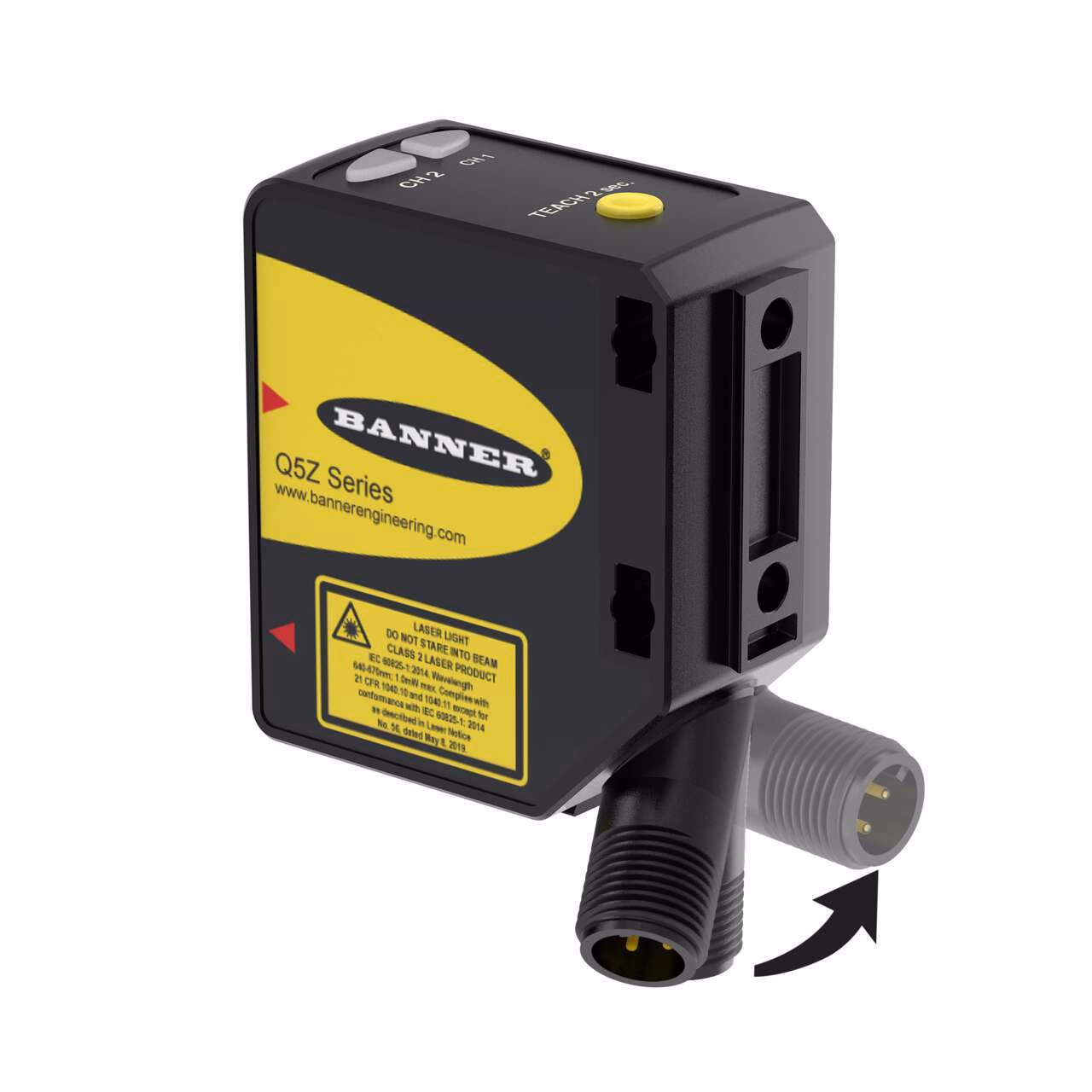

4-pin M12 Rotatable Connector
| Connection | Integral QD |
|---|---|
| Discrete (Switched) Outputs | 1 NPN/PNP Configurable; 1 PNP |
| Jam Detection | No |
| Laser Classification | Class 2 |
| Laser Control | No |
| Max Ambient Light (Lux) | up to 5000 lux at 1000 mm and up to 2000 lux at 2000 mm |
| Min Operating Temperature (C) | -10.0 |
| Minimum Sensing Distance (mm) | 95.0 |
| PC Configurable | No |
| PFM Output | No |
| Sensing Mode (General) | Proximity |
| Adjustments | Push Button; Remote Teach |
| Connection technology signal | Background/Foreground Suppression |
| Device type | Sensor |
| EPLAN Original Sent Date | 09/22/2023 |
| EPLAN Status | Published |
| Feature | Clear Object Detection, Pump-in/ Pump-out, Quick Disconnect, Timing (Hold/Delay) |
| Housing Style | Rectangular |
| Input/Output | Discrete |
| IO Link | Yes |
| Item Status | RELEASED |
| Network protocol | No |
| Number of pins | 4 |
| Operating voltage | 10-30 V dc |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Radio interface | No |
| Receptacle housing material B | ABS |
| RS-232 | No |
| Sensing Beam | Visible Red Laser |
| Max Sensing Distance (mm) | 1800.0 |
| Minimum Response Time (ms) | 3.0 |
