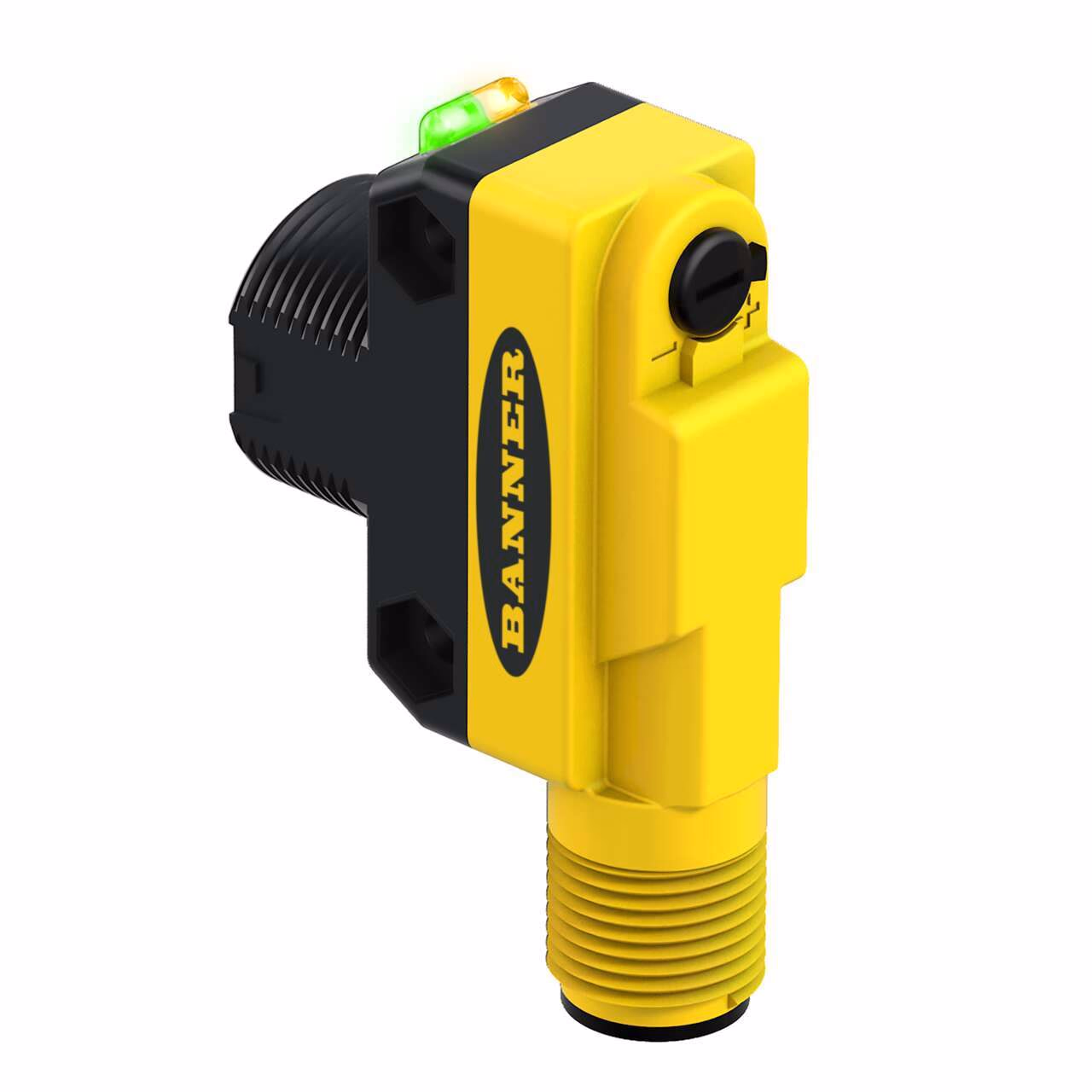

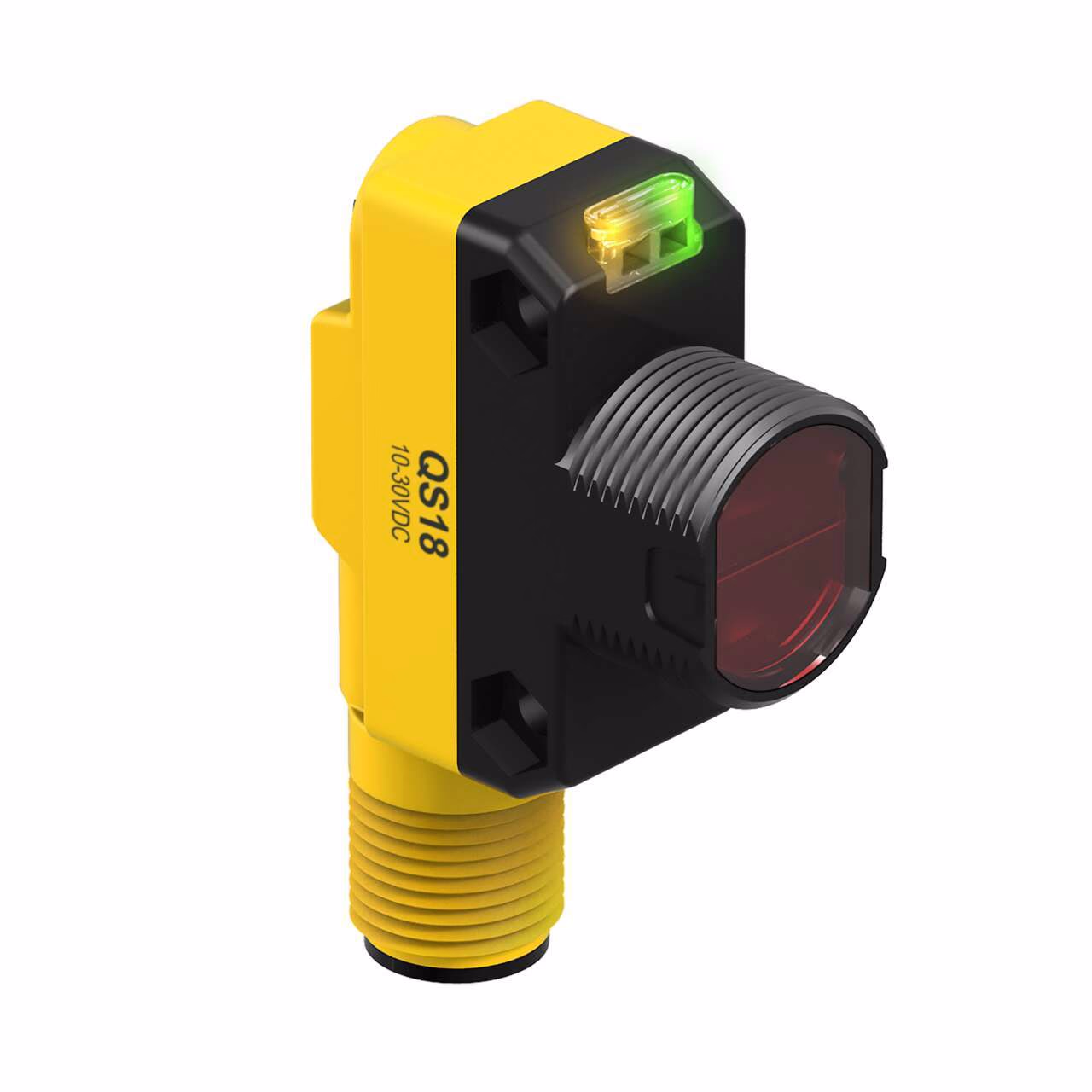

QS18 Series All Purpose Photoelectric Sensor – Banner – QS18VN6AF120Q8
WORLD-BEAM: Adjustable Field
Range: 120 mm; Input: 10-30 V dc
Outputs: Complementary NPN
M12 Integral QD
| Connection | Integral QD |
|---|---|
| Feature: Audible | No |
| Outputs | NPN |
| Sensing Mode (General) | Proximity |
| Adjustments | Potentiometer |
| Connection technology signal | Background Suppression (Adjustable) |
| DeviceNet | No |
| Feature | Quick Disconnect |
| Homerun Exit Location | 2.8 |
| Housing Style | Rectangular w/M18 Mount |
| Indicator | LEDs |
| Input/Output | Discrete |
| IO Link | No |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 4 |
| Operating voltage | 10-30 V dc |
| Operation | Light/Dark Operate |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | ABS |
| Sensing Beam | Visible Red LED |
| Sensing Beam Wavelength | 640 |
| Small Visible Spot | LED |
| Min Op. Temperature (C) | -40.0 |
| NEMA / UL Type Rating | NEMA 4X |
| Delay at Power-up (ms) | 200 |
| Max Sensing Distance (mm) | 120.0 |
| Max Op. Temp. (C) | 60 |
| Max Op. Relative Humidity (%) | 95% @ 50°C |
| Barrel Diameter (mm) | 18.0 |
Description
WORLD-BEAM: Adjustable Field
Range: 120 mm; Input: 10-30 V dc
Outputs: Complementary NPN
M12 Integral QD
