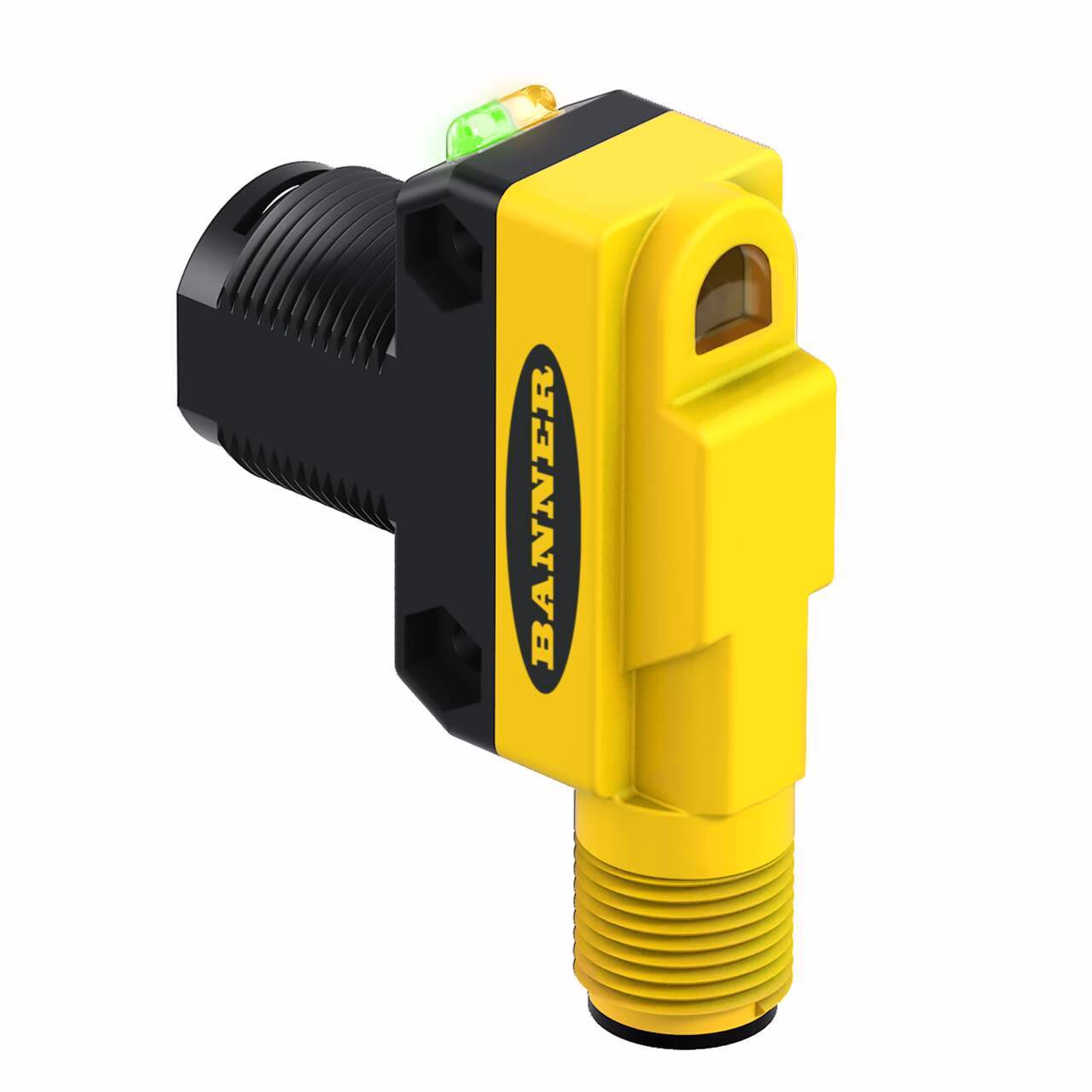

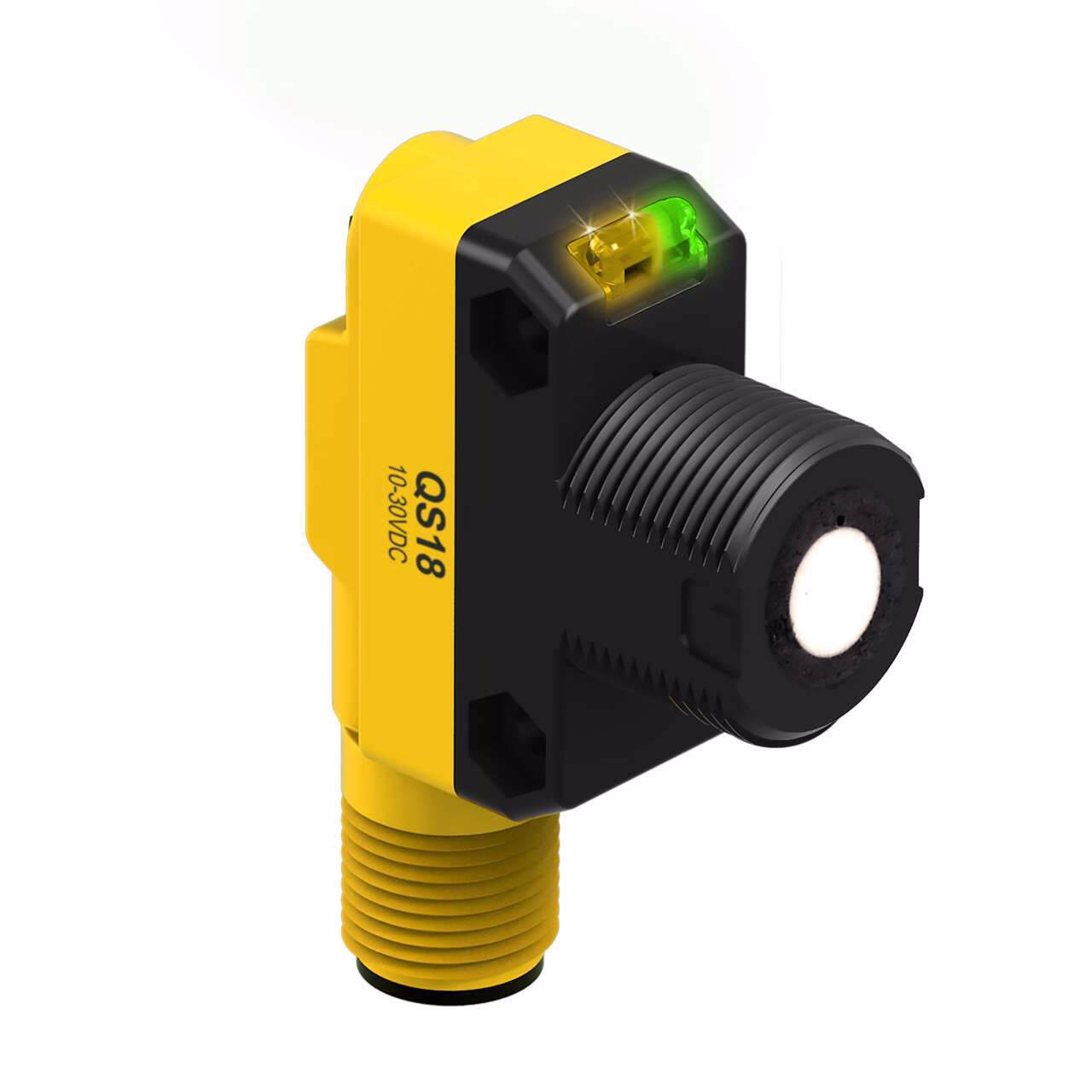

QS18U Series Compact High Speed Ultrasonic Sensor – Banner – QS18UNAEQ8
WORLD-BEAM QS18U: Ultrasonic remote TEACH
Range: 50-500 mm; Input: 12-30 V dc
Output: NPN; Epoxy-encapsulated
4-pin M12 Integral QD
| Connection | Integral QD |
|---|---|
| Discrete (Switched) Outputs | 1 NPN |
| Jam Detection | No |
| Laser Control | No |
| Min Operating Temperature (C) | -20 |
| Minimum Sensing Distance (mm) | 50 |
| PC Configurable | No |
| PFM Output | No |
| Sensing Mode (General) | Proximity |
| Ultrasonic Frequency (kHz) | 300 |
| Adjustments | Remote Teach |
| Connection technology signal | Time of Flight |
| Device type | Sensor |
| Feature | Clear Object Detection, Quick Disconnect, Remote Teach |
| Housing Style | Rectangular w/ Threaded Mount |
| Input/Output | Discrete |
| Item Status | RELEASED – APPROVAL REQUIRED |
| Network protocol | No |
| Number of pins | 4 |
| Operating voltage | 12-30 V dc |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP68 |
| Radio interface | No |
| Receptacle housing material B | ABS |
| RS-232 | No |
| Screw-in thread | M18 |
| Sensing Beam | Ultrasonic |
| NEMA / UL Type Rating | NEMA 4X |
| Max Sensing Distance (mm) | 500 |
| Minimum Response Time (ms) | 15 |
| Application.1 | Ultrasonic |
Description
WORLD-BEAM QS18U: Ultrasonic remote TEACH
Range: 50-500 mm; Input: 12-30 V dc
Output: NPN; Epoxy-encapsulated
4-pin M12 Integral QD
