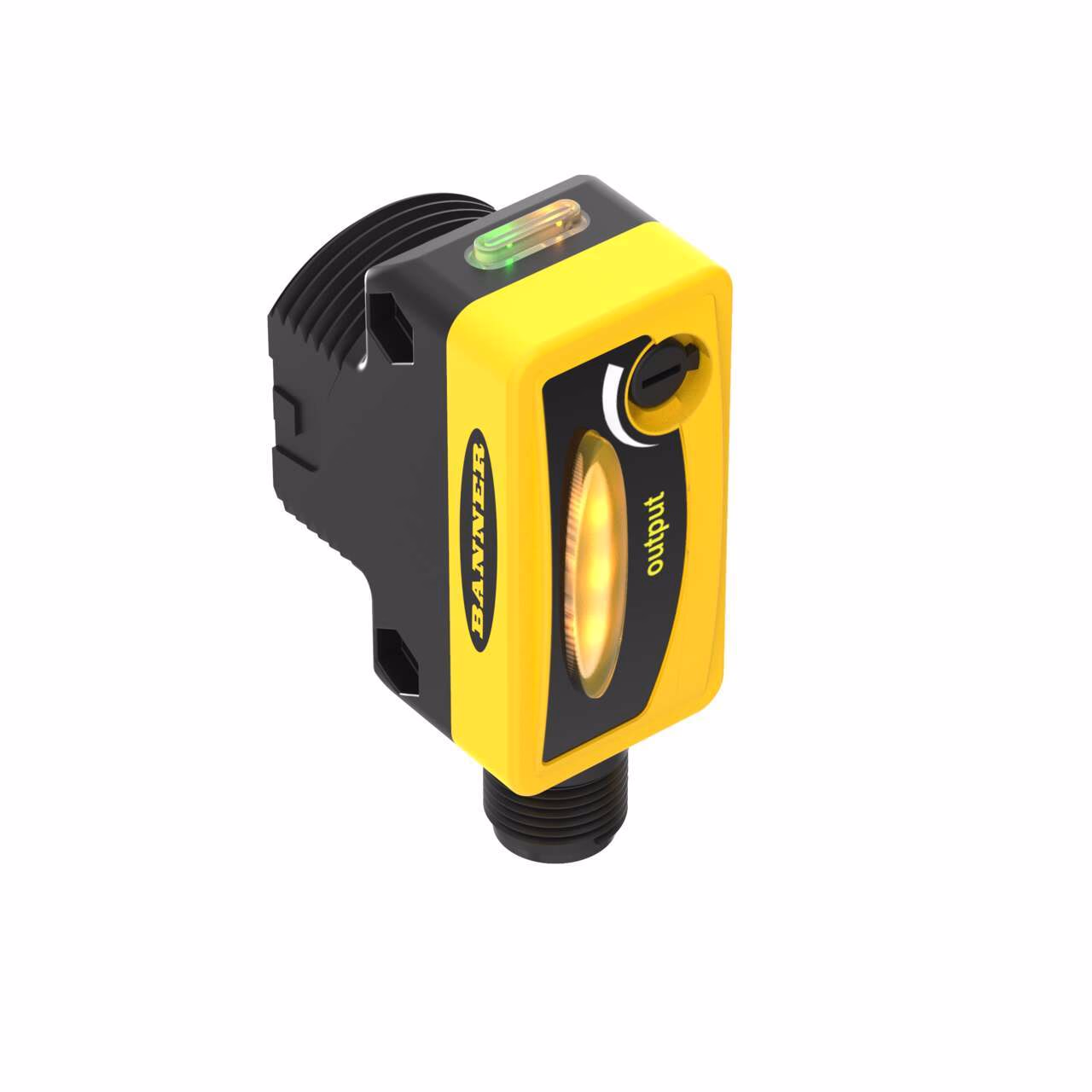

QS30 Series High-Performance Long-Range Sensor – Banner – QS30DQ
WORLD-BEAM QS30 Series: Diffuse
Range: 1.0 m; Input: 10-30 V dc
Output: Bipolar: 1 NPN; 1 PNP
5-pin M12 Integral QD
| Connection | Integral QD |
|---|---|
| Feature: Audible | No |
| Outputs | Bipolar (NPN & PNP) |
| Sensing Mode (General) | Proximity |
| Adjustments | Potentiometer |
| Connection technology signal | Diffuse |
| DeviceNet | No |
| EPLAN Original Sent Date | 10/27/2022 |
| EPLAN Status | Published |
| Feature | Quick Disconnect |
| Homerun Exit Location | 2 |
| Housing Style | Rectangular w/M30 Mount |
| Indicator | LEDs |
| Input/Output | Discrete |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 5 |
| Operating voltage | 10-30 V dc |
| Operation | Light/Dark Operate |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Infrared LED |
| Min Op. Temperature (C) | -20 |
| NEMA / UL Type Rating | NEMA 4X |
| Delay at Power-up (ms) | 100 |
| Max Sensing Distance (mm) | 1000 |
| Max Op. Temp. (C) | 70 |
| Max Op. Relative Humidity (%) | 95% @ 55°C |
| Barrel Diameter (mm) | 30 |
Description
WORLD-BEAM QS30 Series: Diffuse
Range: 1.0 m; Input: 10-30 V dc
Output: Bipolar: 1 NPN; 1 PNP
5-pin M12 Integral QD
