QS30 Series High-Performance Long-Range Sensor – Banner – QS30ELVCQ

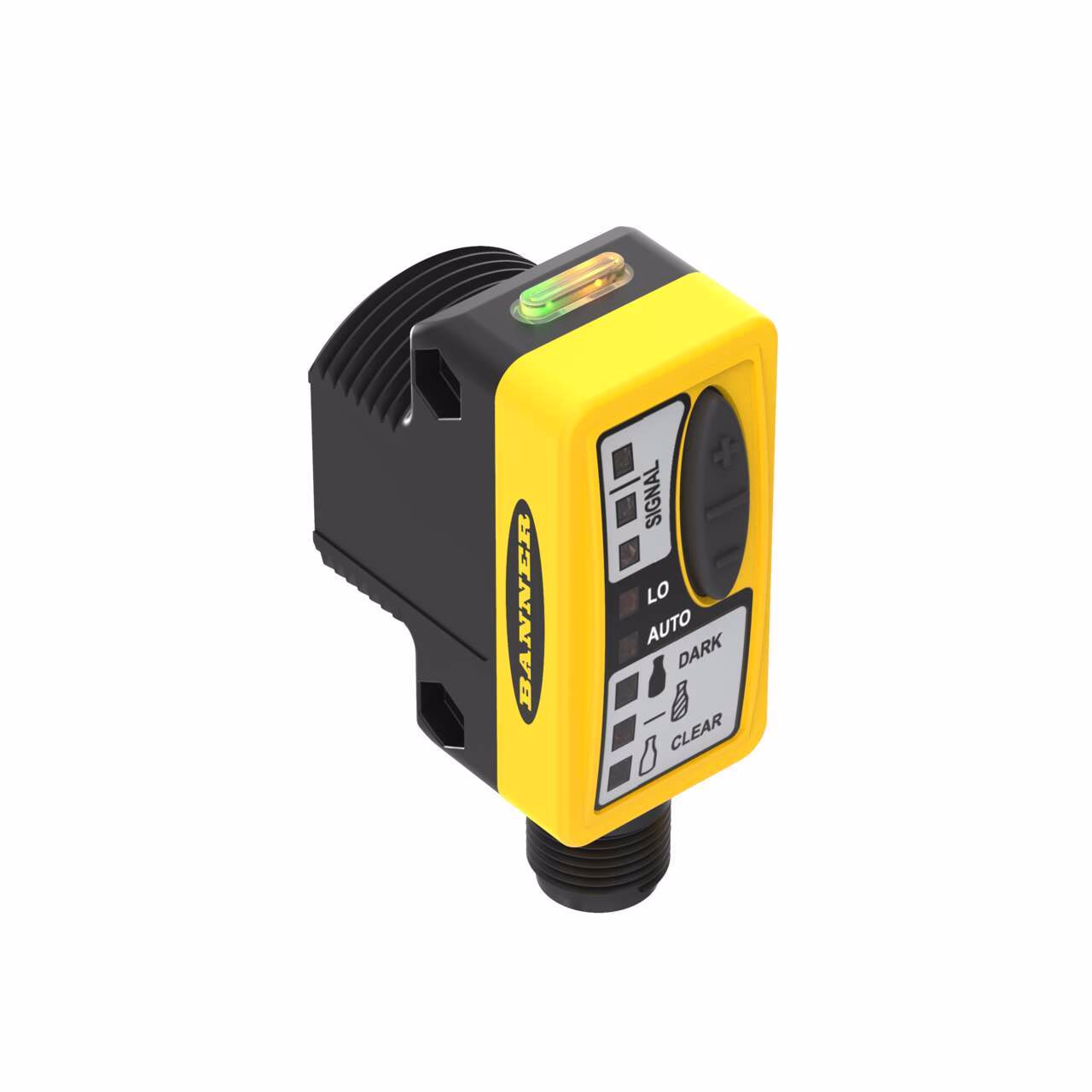

WORLD-BEAM QS30 Series Clear Object Sensor
Range: 100 mm-2 m; Input: 10-30 V dc
Rating: IP67; Output: Bipolar (NPN & PNP)
5-pin M12 QD
| Connection | Integral QD |
|---|---|
| Feature: Audible | No |
| Outputs | Bipolar (NPN & PNP) |
| Sensing Mode (General) | Retroreflective |
| Adjustments | Teach Button |
| Connection technology signal | Non-Polarized |
| DeviceNet | No |
| EPLAN Original Sent Date | 10/27/2022 |
| EPLAN Status | Published |
| Feature | Clear Object Detection, Quick Disconnect |
| Homerun Exit Location | 0.5 |
| Housing Style | Rectangular w/M30 Mount |
| Indicator | Bargraph |
| Input/Output | Discrete |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 5 |
| Operating voltage | 10-30 V dc |
| Operation | Light/Dark Operate |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Visible Red LED |
| Sensing Beam Wavelength | 660 |
| Special feature | Remote Teach |
| Min Op. Temperature (C) | -10.0 |
| NEMA / UL Type Rating | NEMA 4X |
| Delay at Power-up (ms) | 250 |
| Max Sensing Distance (mm) | 2000.0 |
| Max Op. Temp. (C) | 55 |
| Max Op. Relative Humidity (%) | 95% @ 55°C |
| Barrel Diameter (mm) | 30.0 |
| Repeatability (µs) | 150 |
Description
WORLD-BEAM QS30 Series Clear Object Sensor
Range: 100 mm-2 m; Input: 10-30 V dc
Rating: IP67; Output: Bipolar (NPN & PNP)
5-pin M12 QD
