QS30 Series High-Performance Long-Range Sensor – Banner – QS30RRXSH2OQ5

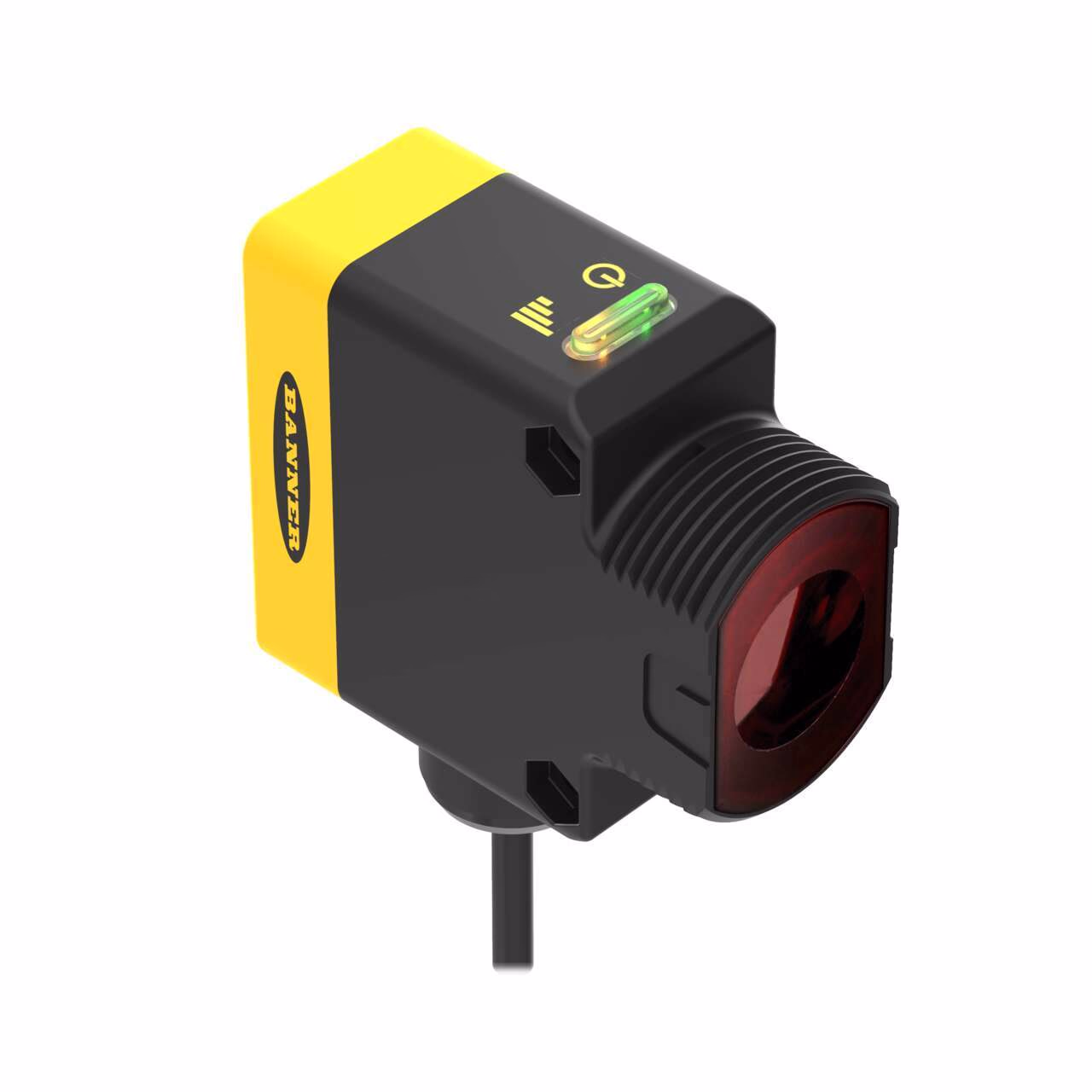

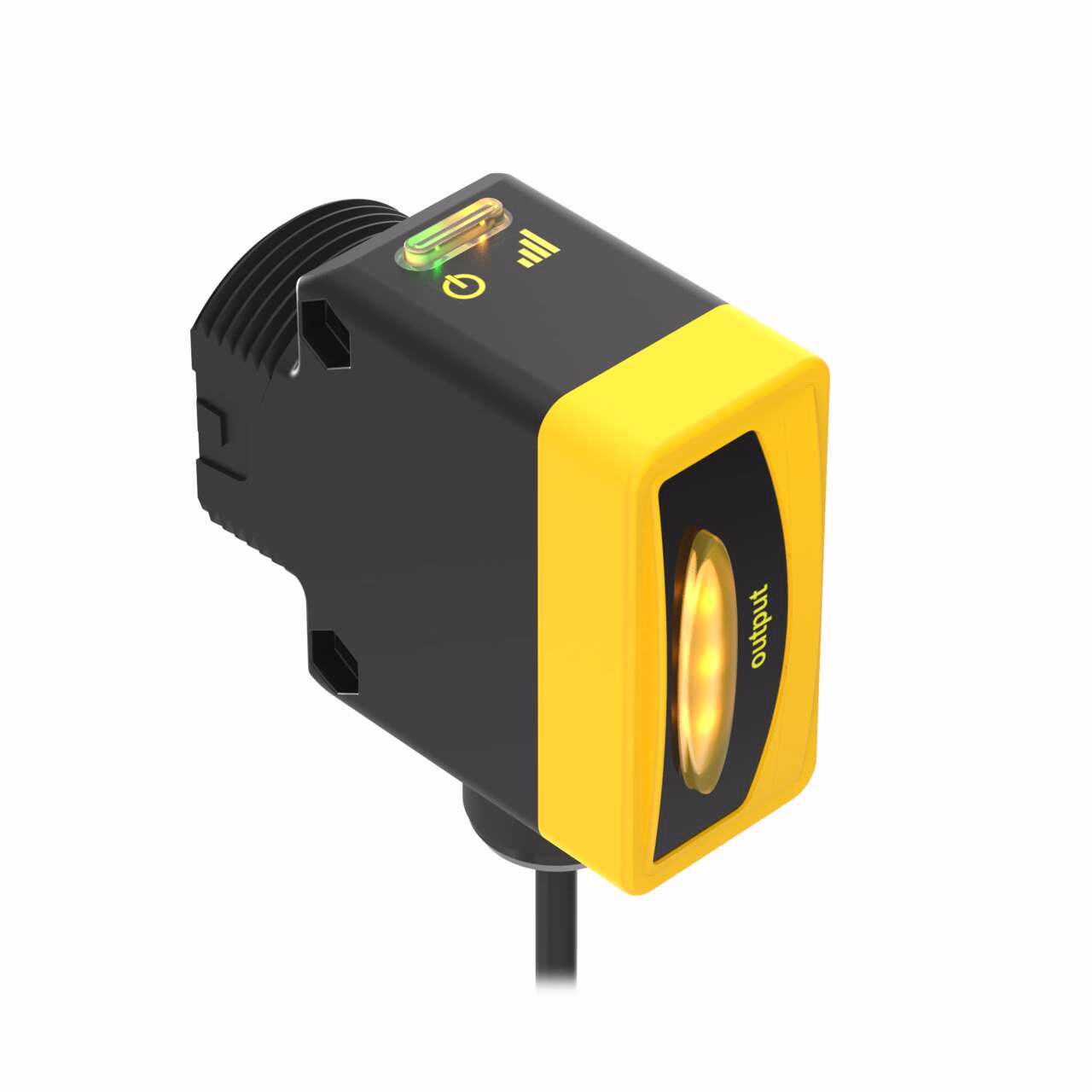

WORLD-BEAM QS30 Series: H2O SHP Receiver
Range: 8 m; Input: 10-30 V dc
Output: DO; Bipolar: 1 NPN; 1 PNP
150 mm (6 in) 5-pin M12 Pigtail QD
| Connection | Pigtail QD |
|---|---|
| Feature: Audible | No |
| Outputs | Bipolar (NPN & PNP) |
| Sensing Mode (General) | Opposed |
| Connection technology signal | Receiver |
| DeviceNet | No |
| EPLAN Original Sent Date | 07/03/2024 |
| EPLAN Status | Published |
| Feature | Encapsulated, Quick Disconnect, Washdown Rated |
| Homerun Exit Location | 10 |
| Housing Style | Rectangular w/M30 Mount |
| Indicator | Bargraph |
| Input/Output | Discrete |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 5 |
| Operating voltage | 10-30 V dc |
| Operation | Dark Operate |
| Opposed Mode Emitter/Receiver | Receiver |
| Port | M12 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Long Infrared (Water Detection) |
| Slot width (mm) | 0.15 |
| Special feature | Water Detection |
| Min Op. Temperature (C) | -20.0 |
| NEMA / UL Type Rating | NEMA PW12 |
| Delay at Power-up (ms) | 100 |
| Max Sensing Distance (mm) | 8000.0 |
| Max Op. Temp. (C) | 60 |
| Max Op. Relative Humidity (%) | 95% @ 50°C |
| Barrel Diameter (mm) | 30.0 |
Description
WORLD-BEAM QS30 Series: H2O SHP Receiver
Range: 8 m; Input: 10-30 V dc
Output: DO; Bipolar: 1 NPN; 1 PNP
150 mm (6 in) 5-pin M12 Pigtail QD
