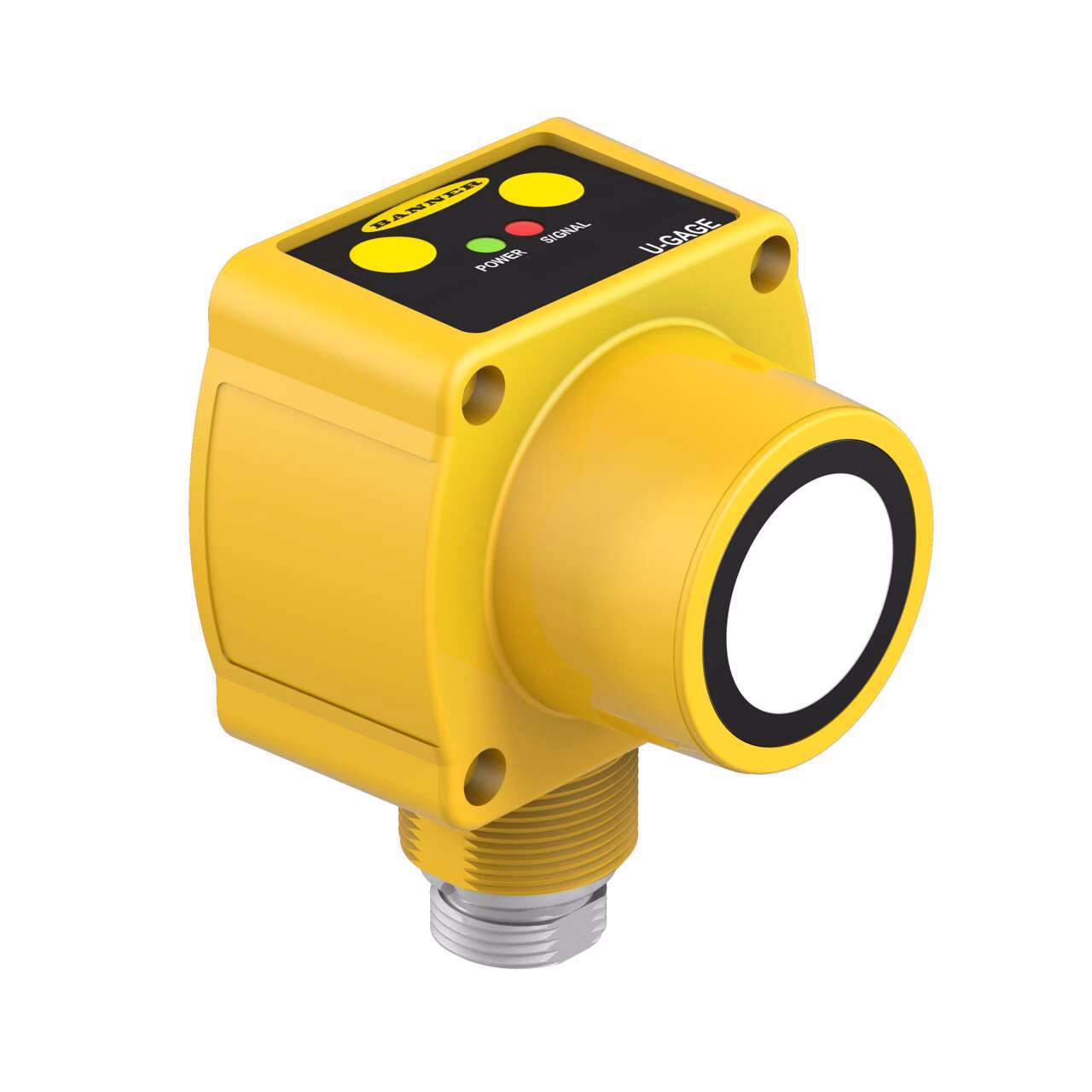

QT50U 8 m Range Chemical Resistant Ultrasonic Sensor – Banner – QT50UDBQ
QT50U Dual-Discrete Series: Proximity Mode
Range: 200 mm – 8 m; Input: 10-30 V dc
Outputs: 2 Discrete NPN or PNP
5-pin Mini-Style Integral QD
| Connection | Integral QD |
|---|---|
| Discrete (Switched) Outputs | 2 NPN/PNP Configurable |
| Jam Detection | No |
| Laser Control | No |
| Min Operating Temperature (C) | -20 |
| Minimum Sensing Distance (mm) | 200 |
| PC Configurable | No |
| PFM Output | No |
| Sensing Mode (General) | Proximity |
| Ultrasonic Frequency (kHz) | 75 |
| Adjustments | Push Button (s) |
| Connection technology signal | Time of Flight |
| Device type | Sensor |
| EPLAN Original Sent Date | 01/11/2023 |
| EPLAN Status | Published |
| Feature | Clear Object Detection, Pump-in/ Pump-out, Quick Disconnect, Remote Teach |
| Housing Style | Rectangular |
| Input/Output | Discrete |
| Item Status | RELEASED |
| Network protocol | No |
| Number of pins | 5 |
| Operating voltage | 10-30 V dc |
| Port | 7/8 in. (Mini) |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Radio interface | No |
| Receptacle housing material B | PBT |
| RS-232 | No |
| Sensing Beam | Ultrasonic |
| NEMA / UL Type Rating | NEMA 4X |
| Max Sensing Distance (mm) | 8000 |
| Minimum Response Time (ms) | 100 |
| Application.1 | Ultrasonic |
Description
QT50U Dual-Discrete Series: Proximity Mode
Range: 200 mm – 8 m; Input: 10-30 V dc
Outputs: 2 Discrete NPN or PNP
5-pin Mini-Style Integral QD
