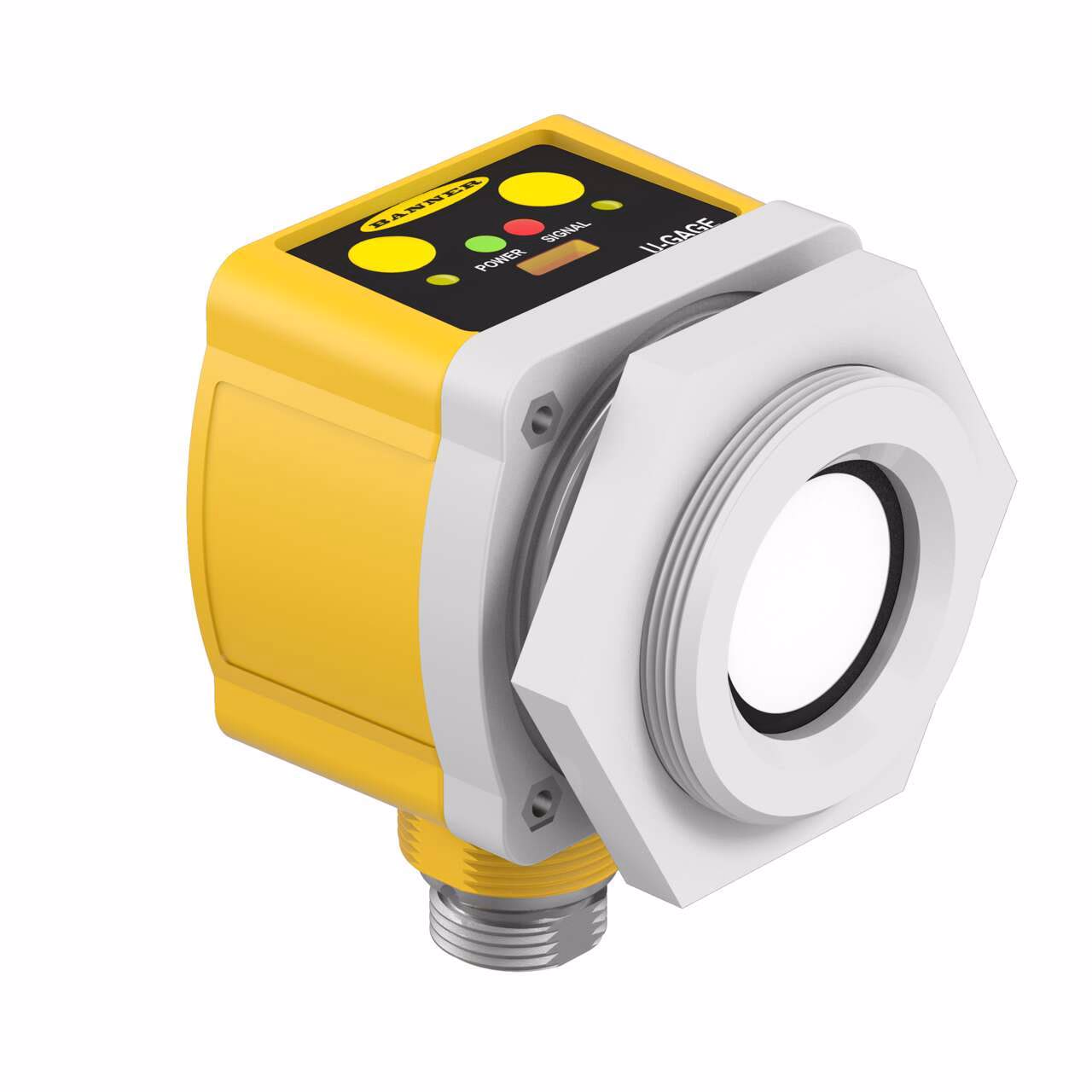

QT50U 8 m Range Chemical Resistant Ultrasonic Sensor – Banner – QT50UVR3WQ-CRFV
QT50U Chemical Resistant Universal Voltage Series: Proximity Mode
Range: 200 mm – 6 m
Input: 85-264 V ac 50/60 Hz/48 – 250 V dc
Output: SPDT electromechanical relay
5-pin Mini Integral QD
| Connection | Integral QD |
|---|---|
| Discrete (Switched) Outputs | SPDT e/m Relay |
| Jam Detection | No |
| Laser Control | No |
| Minimum Sensing Distance (mm) | 200.0 |
| PC Configurable | No |
| PFM Output | No |
| Sensing Mode (General) | Proximity |
| Ultrasonic Frequency (kHz) | 75.0 |
| Connection technology signal | Time of Flight |
| Device type | Sensor |
| Feature | Chemical Resistant, Clear Object Detection, Quick Disconnect, Remote Teach |
| Housing Style | Rectangular w/ Threaded Mount |
| Input/Output | Discrete |
| Item Status | RELEASED |
| Number of pins | 5 |
| Operating voltage | 85-264 V ac / 48-250 V dc |
| Port | 7/8 in. (Mini) |
| Power Good Output | AC/DC Universal |
| Protection class shaft | IP67 |
| Receptacle housing material B | PBT |
| RS-232 | No |
| Screw-in thread | M56 |
| Sensing Beam | Ultrasonic |
| NEMA / UL Type Rating | NEMA 4X |
| Max Sensing Distance (mm) | 6000.0 |
Description
QT50U Chemical Resistant Universal Voltage Series: Proximity Mode
Range: 200 mm – 6 m
Input: 85-264 V ac 50/60 Hz/48 – 250 V dc
Output: SPDT electromechanical relay
5-pin Mini Integral QD
