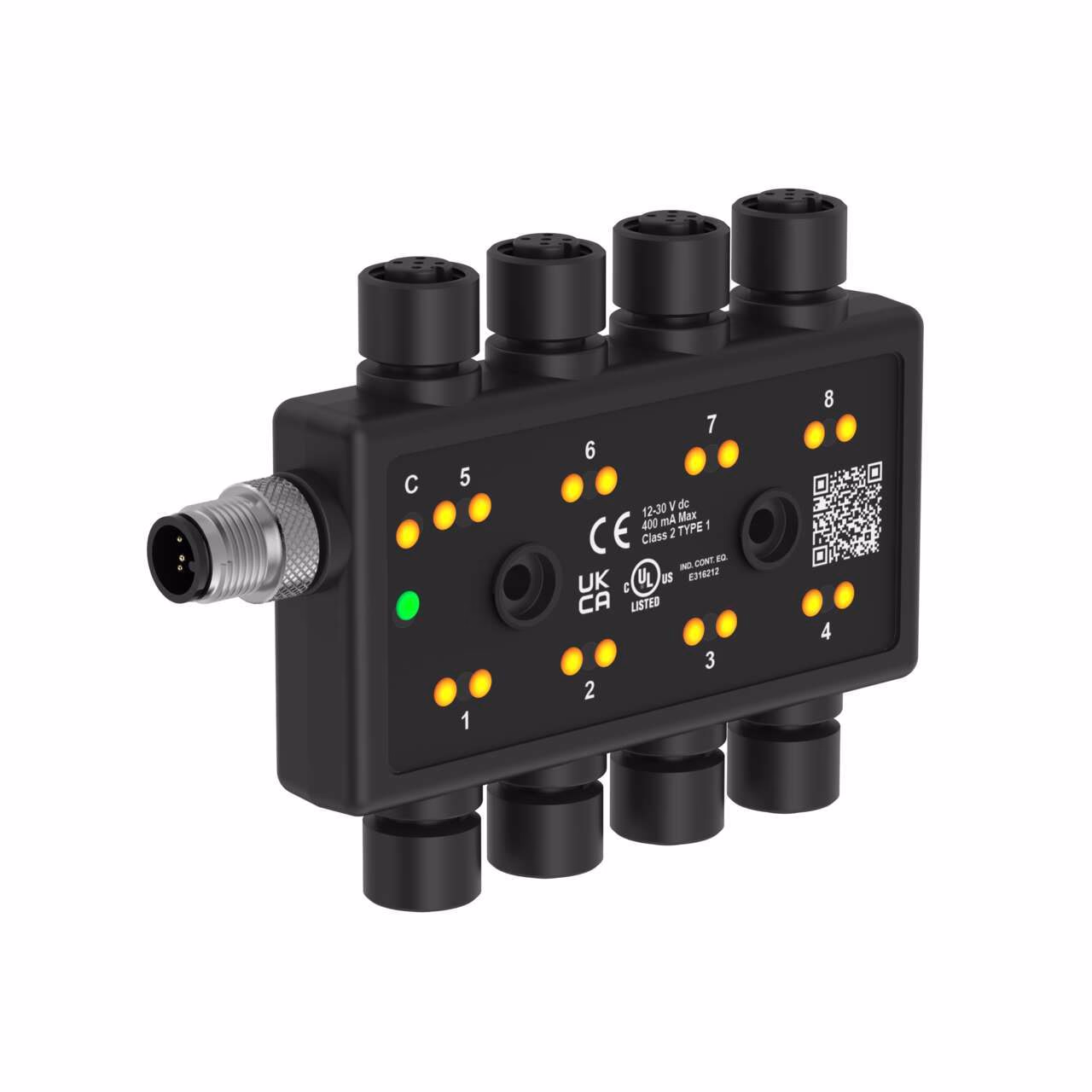

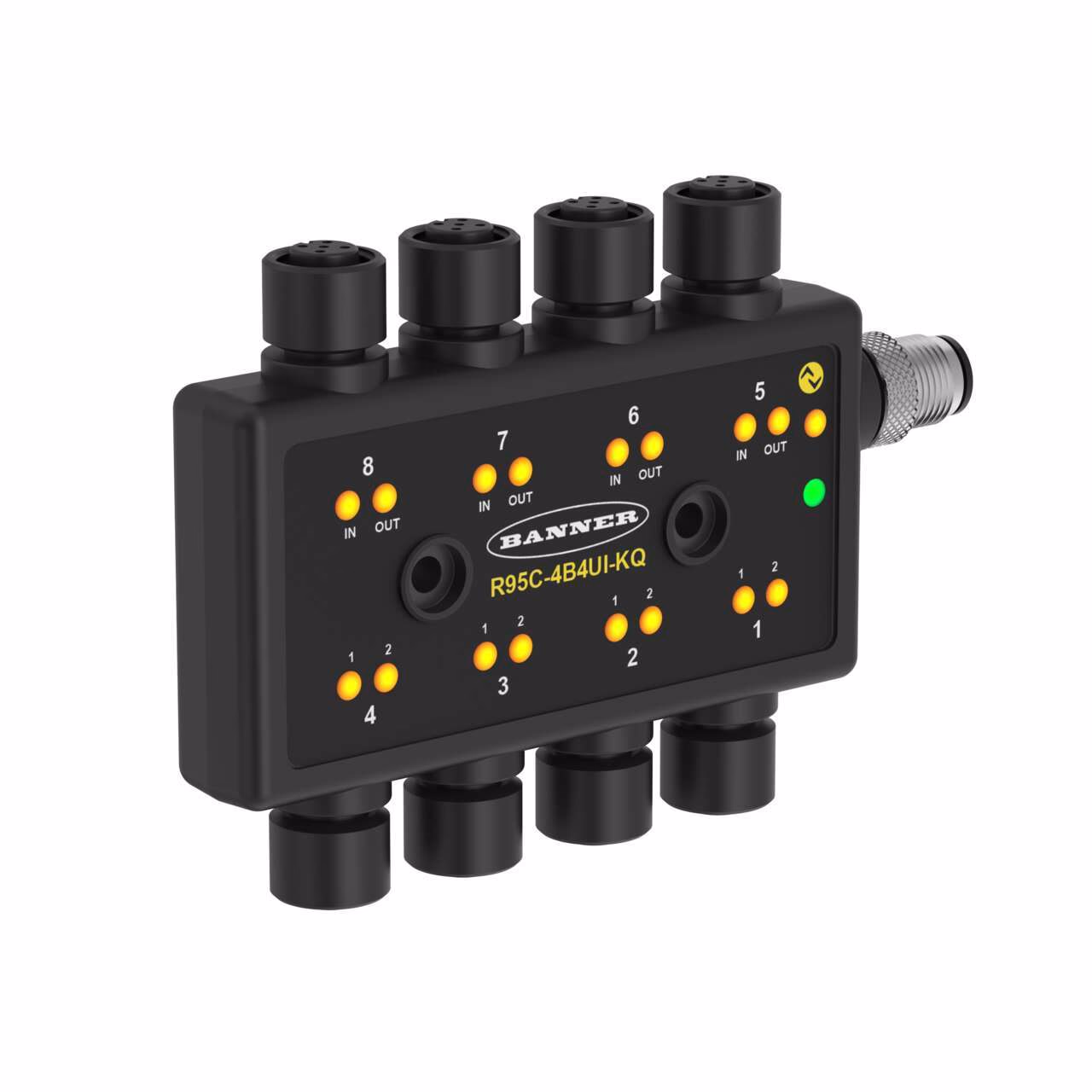

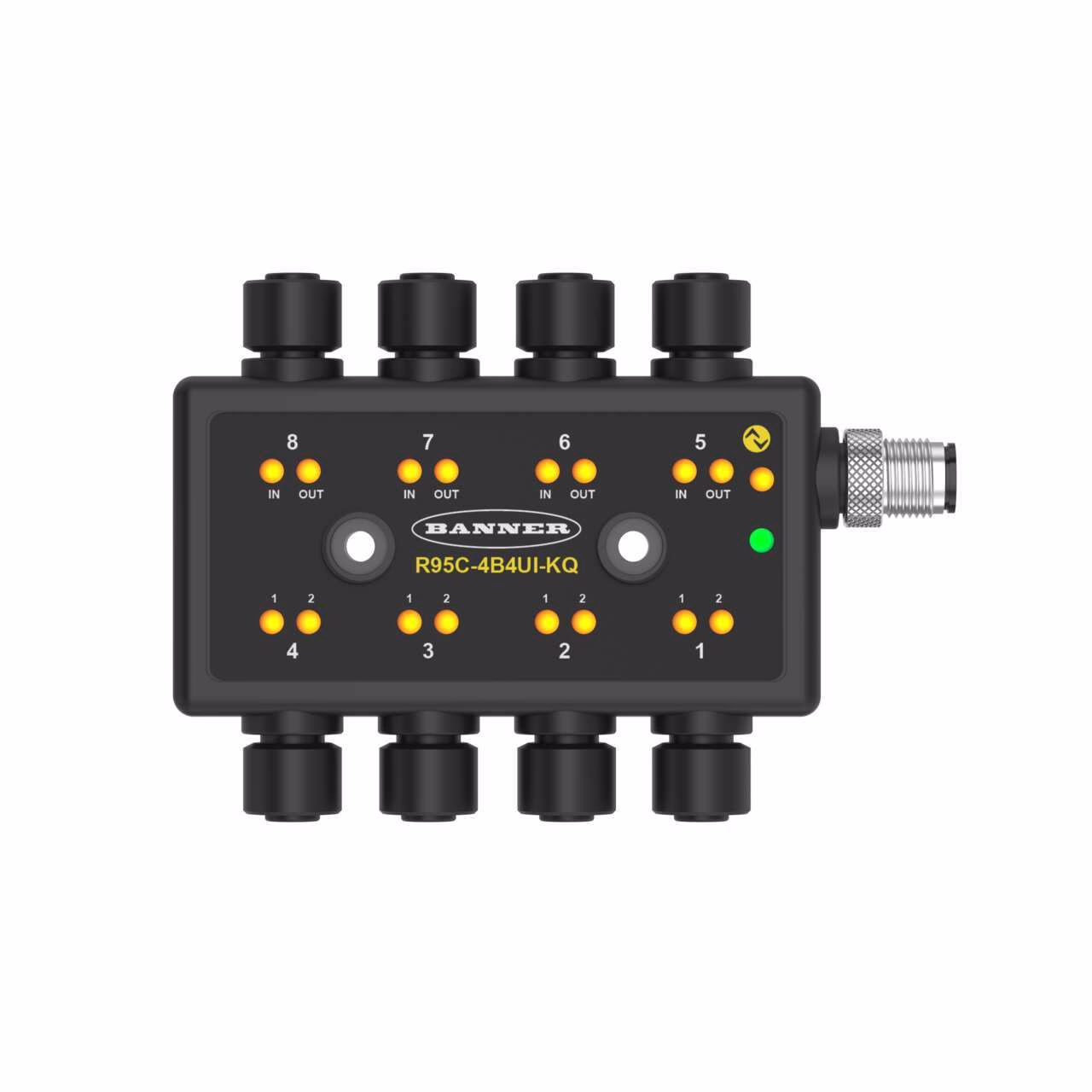

R95C IO-Link Hub – Banner – R95C-4B4UI-KQ
R95C Series: 8 Port Hybrid IO-Link Hub
4 Analog Inputs and 4 Analog Outputs and 8 Discrete Inputs or 8 Discrete Outputs (Configurable)
IO-Link Interface
4-pin M12 QDs
| Connector 2 Gender | Male |
|---|---|
| Connector B | Female |
| EPLAN Original Sent Date | 10/18/2024 |
| EPLAN Status | Published |
| IO Link | Yes |
| Item Status | RELEASED |
| Operating voltage | 18-30 V dc |
| Protection class shaft | IP65, IP67, IP68 |
| Setting option | Analog Current or Voltage |
| Signal type | Analog Current or Voltage |
| IO-Link Device | Yes |
| Modbus Server | No |
| Connector 1 | Integral M12 |
| Function | Converter |
| IO-Link Master | No |
| Form Factor | R95 |
| Modbus Client | No |
| Input | Discrete Input & Output |
| Device Size (mm) | 50 x 95 |
| Connector 1 Pin Count | 5.0 |
| Connector 2 | Integral M12 |
| Connector 2 Pin Count | 5.0 |
| Current | <400 mA |
| Output 2 | PFM |
Description
R95C Series: 8 Port Hybrid IO-Link Hub
4 Analog Inputs and 4 Analog Outputs and 8 Discrete Inputs or 8 Discrete Outputs (Configurable)
IO-Link Interface
4-pin M12 QDs
