Radio Transmission System DX80N2X2S-P7C
Radio Transmission System
| Ambient temperature max. (°C) | 80 |
|---|---|
| Ambient temperature min. (°C) | -20 |
| Antenna connection | RP-SMA female connector |
| Approvals | ATEX, CE, CSA |
| Communication protocol | RS485 |
| Design | Rectangular |

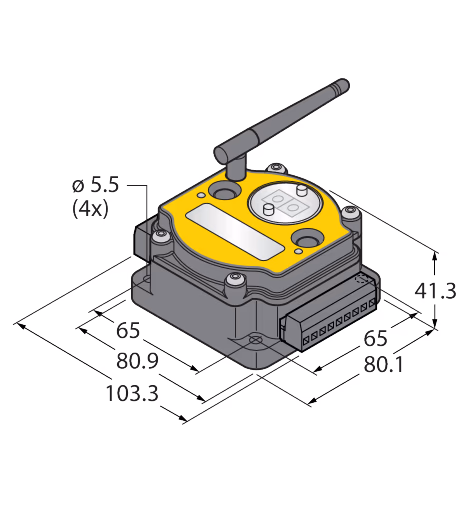

| Dimensions | 80.1 mm x 103.3 mm x 41.3 mm |
| Frequency band | 2.4-GHz ISM band |
| Frequency range | 2.402 – 2.483 GHz |
| Function | Star topology |
| Housing material | Plastic |
| Housing quality | PC |
| Input type | NPN |
| Max. range (mm) | 3200000 |
| Operating voltage | DC |
| Output type | NMOS |
| Protection class | IP20 |
| Runs with battery | Yes |
