Ring Lights – Banner – LEDIRV75PM

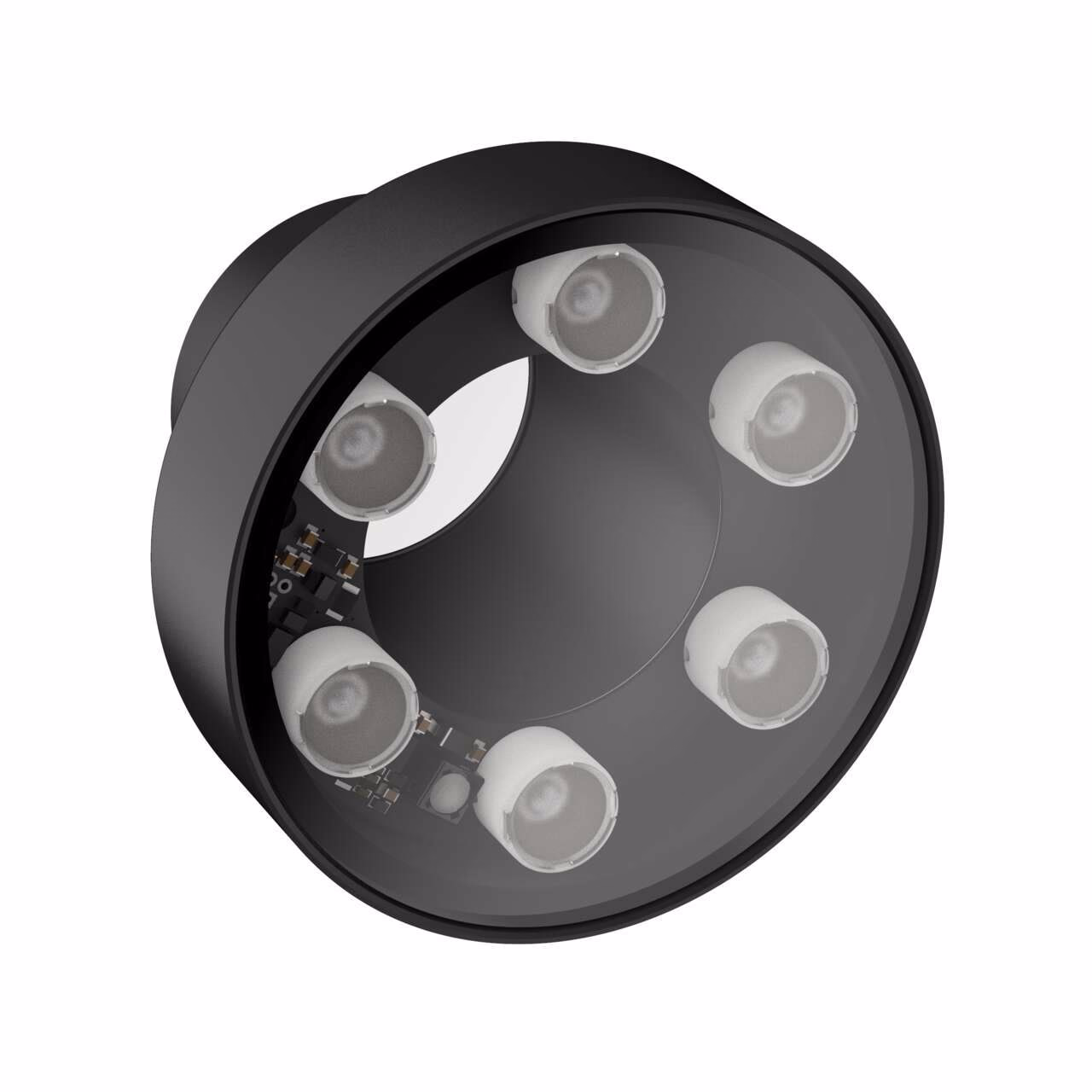

VE Series Sealed IP67 Ring Light
Infrared LED; 24 V dc; Polycarbonate Window
3-pin M8 QD
Connects to VE Smart Camera; 75 mm Length
| Color | Infrared |
|---|---|
| Color Technology | Standard LED |
| Connection | Integral QD |
| QD Type/Cable Length | 350 mm; M8 |
| Window Material | Polycarbonate |
| Device type | Ring Light |
| EPLAN Original Sent Date | 12/07/2024 |
| EPLAN Status | Published |
| Feature | Quick Disconnect |
| Housing Style | Round |
| Item Status | RELEASED |
| Number of Conductors | 3.0 |
| Physical Dimensions (LxWxH or DxH mm) | 98.0 x 75.8 |
| Port | M8 |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Aluminum |
| Voltage supply connection | Pigtail QD |
| Min Op. Temperature (C) | -20.0 |
| High Temperature (up to 100 C) | 50.0 |
| Max Current Color (mA) | 270.0 |
Description
VE Series Sealed IP67 Ring Light
Infrared LED; 24 V dc; Polycarbonate Window
3-pin M8 QD
Connects to VE Smart Camera; 75 mm Length
