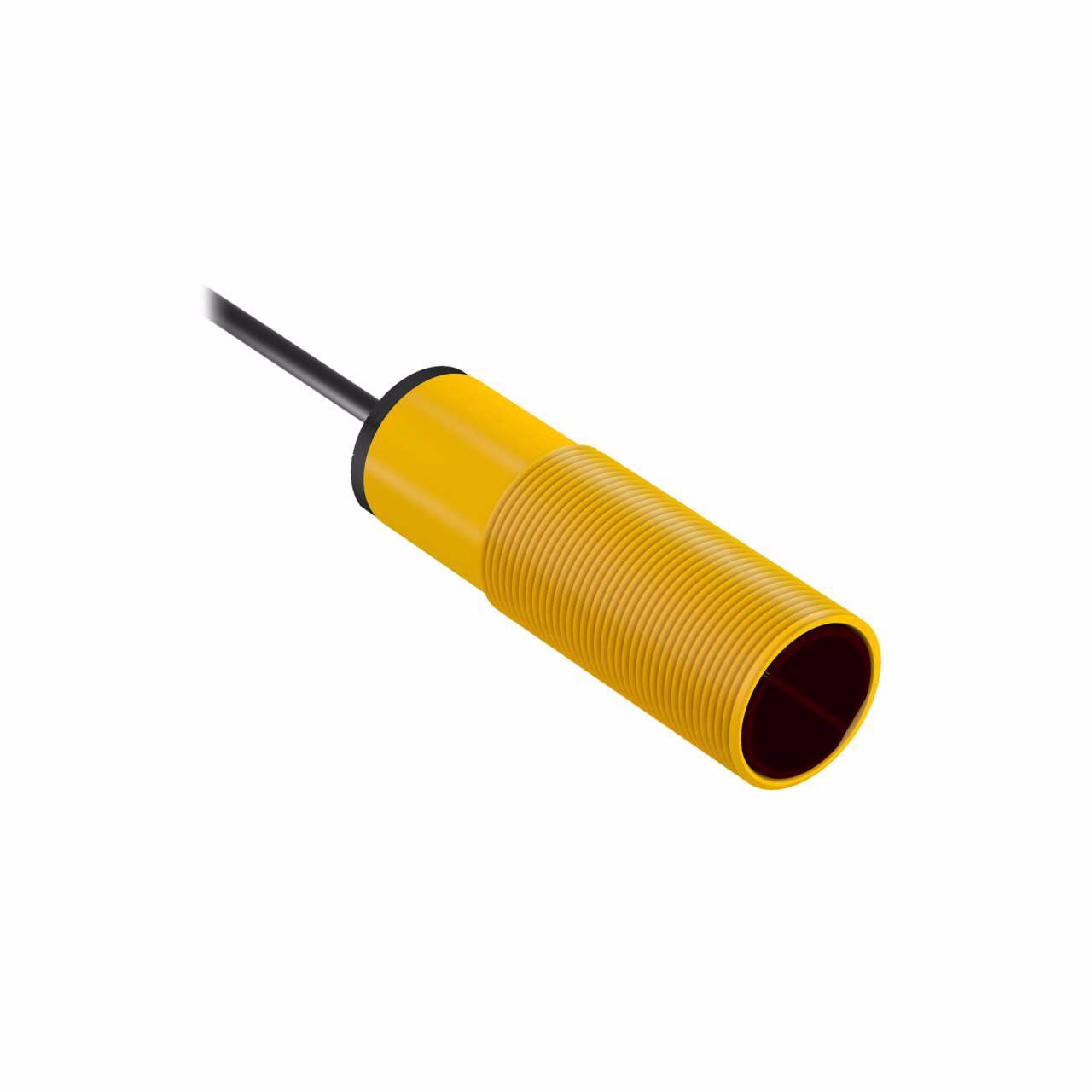

S18 Series Epoxy Encapsulated Barrel-Mount Sensor – Banner – S18SP6R W/30
EZ-BEAM S18 Series: Receiver
Range: 20 m; Input: 10-30 V dc
Output: Complementary PNP
9 m (30 ft) Cable
| Connection | Cable |
|---|---|
| Feature: Audible | No |
| Outputs | PNP |
| Sensing Mode (General) | Opposed |
| Connection technology signal | Receiver |
| DeviceNet | No |
| Feature | Ecolab Certified, Encapsulated, Health/Marginal Signal Output, Washdown Rated |
| Homerun Exit Location | 3 ON/1.5 OFF |
| Housing Style | Barrel |
| Indicator | LEDs |
| Input/Output | Discrete |
| Item Status | RELEASED |
| Lens Material | Polycarbonate |
| Number of pins | 4 |
| Operating voltage | 10-30 V dc |
| Operation | Light/Dark Operate |
| Opposed Mode Emitter/Receiver | Receiver |
| Power Good Output | DC |
| Protection class shaft | IP67, IP69K |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Infrared LED |
| Min Op. Temperature (C) | -40 |
| NEMA / UL Type Rating | NEMA 4X |
| Slot width (mm) | 9 |
| Delay at Power-up (ms) | 100 |
| Max Sensing Distance (mm) | 20000 |
| Max Op. Temp. (C) | 70 |
| Max Op. Relative Humidity (%) | 90% @ 50°C |
| Barrel Diameter (mm) | 18 |
Description
EZ-BEAM S18 Series: Receiver
Range: 20 m; Input: 10-30 V dc
Output: Complementary PNP
9 m (30 ft) Cable
