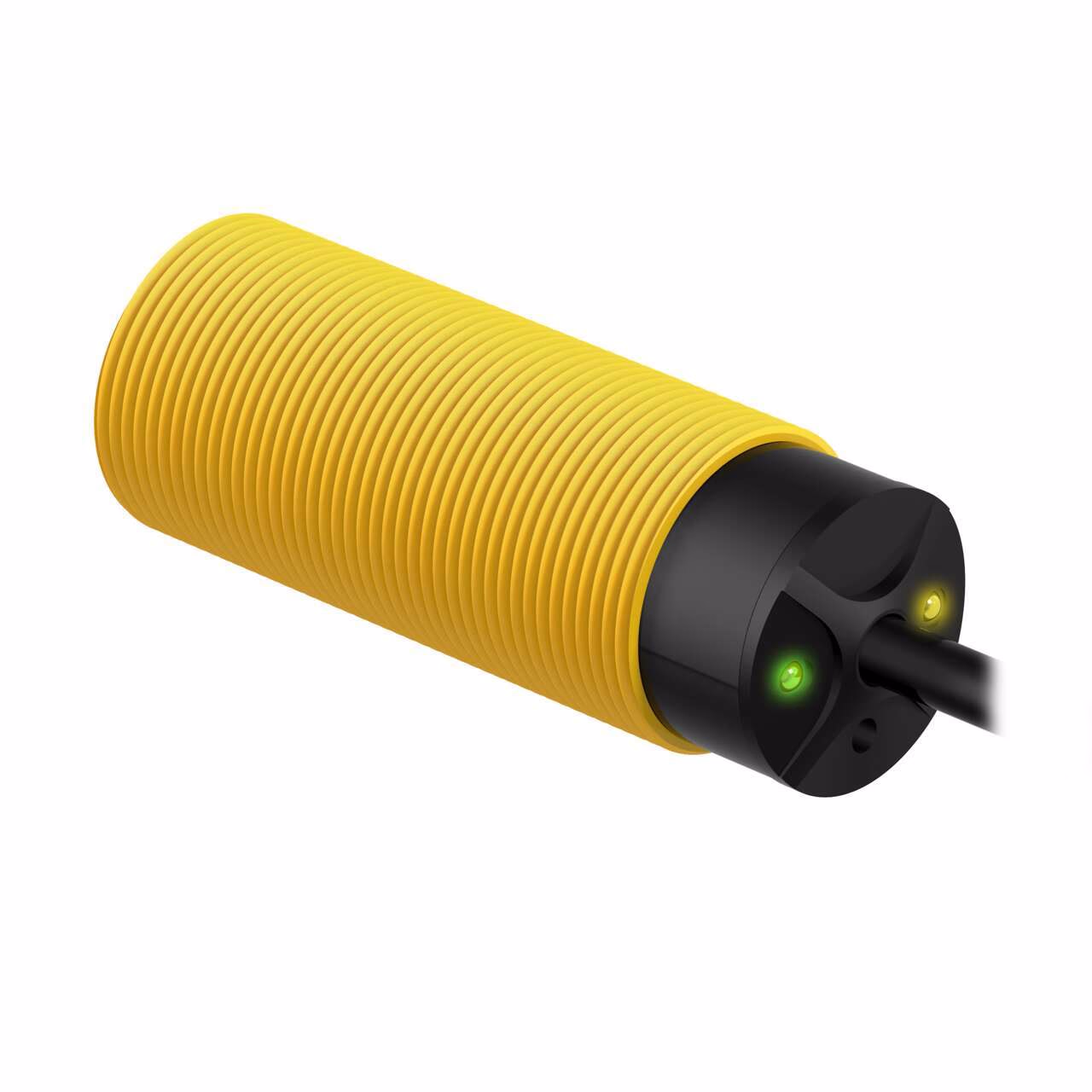

S30 Series 30mm Plastic Threaded Barrel Sensor – Banner – S30RW3LP
EZ-BEAM S30 Series: Polarized Retro
Range: 6 m; Input: 20-250 V ac
Output: SPST Solid-state Dark Operate
2 m (6.5 ft) Cable
| Connection | Cable |
|---|---|
| Feature: Audible | No |
| Outputs | Solid-State AC Switch |
| Sensing Mode (General) | Retroreflective |
| Connection technology signal | Polarized |
| DeviceNet | No |
| Feature | Ecolab Certified, Encapsulated |
| Homerun Exit Location | 16 |
| Housing Style | Barrel |
| Indicator | LEDs |
| Input/Output | Solid-State AC Switch |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 3 |
| Operating voltage | 20-250 V ac |
| Operation | Dark Operate |
| Power Good Output | AC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Visible Red LED |
| Min Op. Temperature (C) | -40 |
| NEMA / UL Type Rating | NEMA 4X |
| Slot width (mm) | 2 |
| Delay at Power-up (ms) | 100 |
| Max Sensing Distance (mm) | 6000 |
| Max Op. Temp. (C) | 70 |
| Max Op. Relative Humidity (%) | 90% @ 50°C |
| Barrel Diameter (mm) | 30 |
Description
EZ-BEAM S30 Series: Polarized Retro
Range: 6 m; Input: 20-250 V ac
Output: SPST Solid-state Dark Operate
2 m (6.5 ft) Cable
