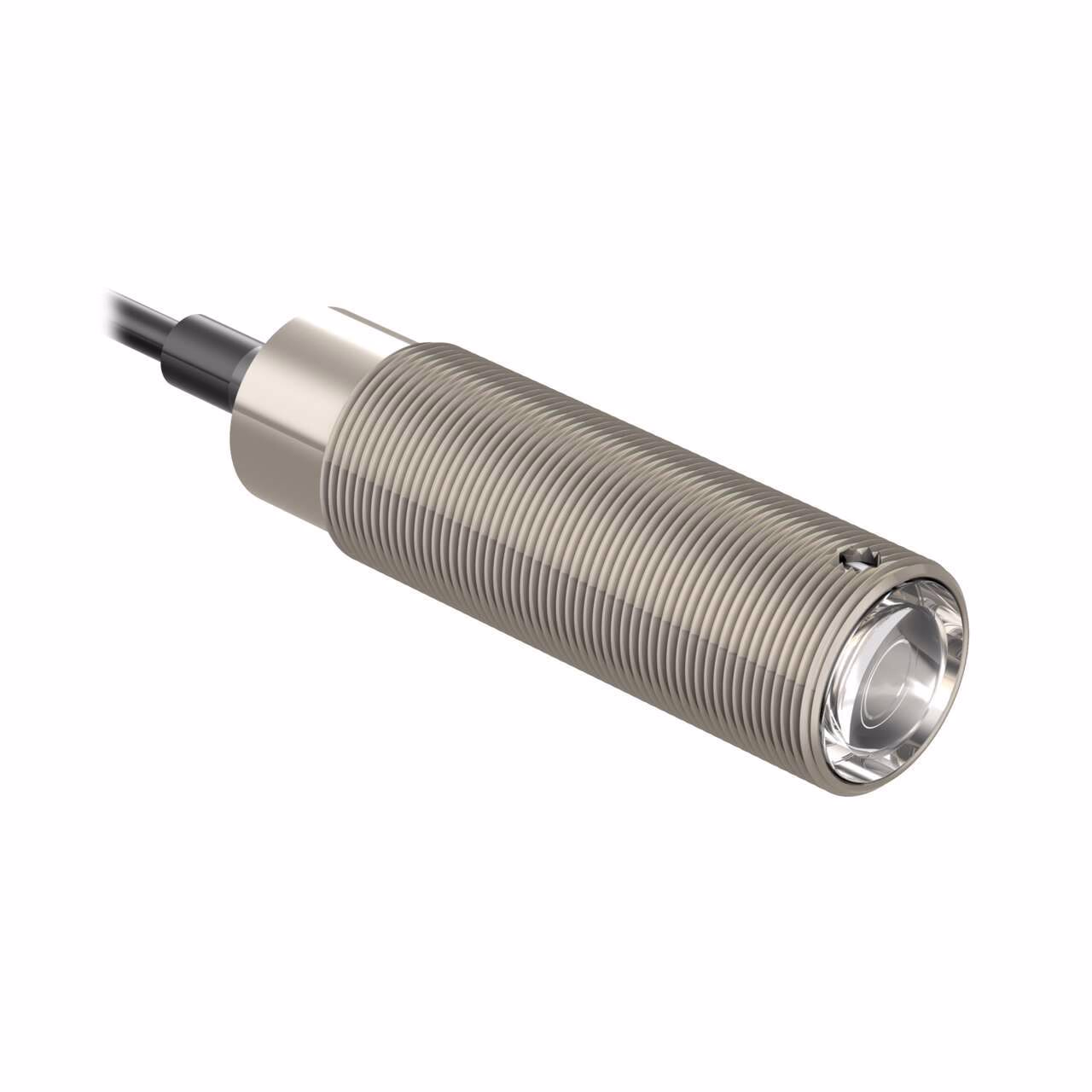

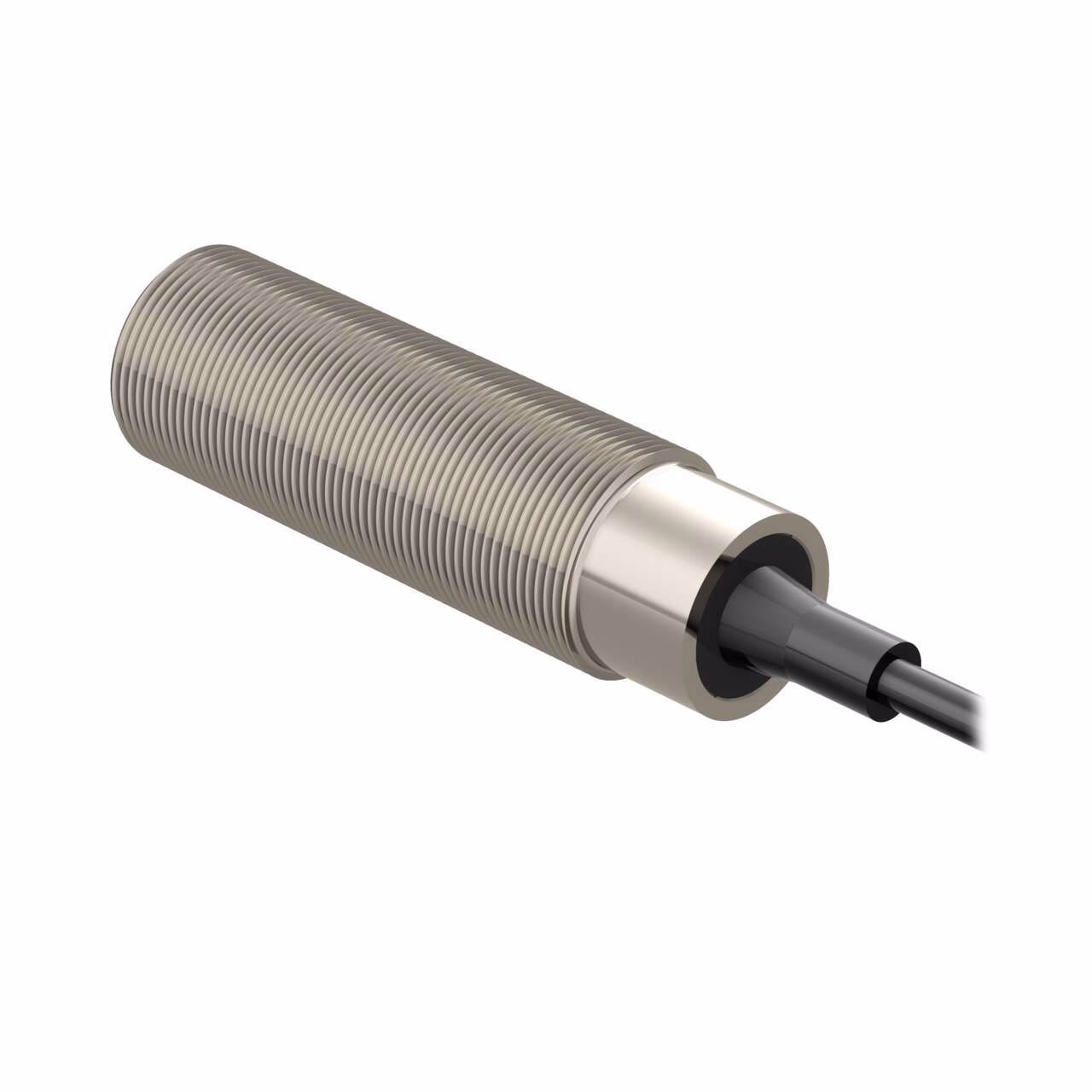

SM30 Series 150 m Range Opposed Mode Barrel Sensor – Banner – SM30SN6R
EZ-BEAM SM30 Series: Receiver
Range: 60 m; Input: 10-30 V dc
Output: Complementary NPN
2 m (6.5 ft) Cable
| Connection | Cable |
|---|---|
| Feature: Audible | No |
| Outputs | NPN |
| Sensing Mode (General) | Opposed |
| Connection technology signal | Receiver |
| DeviceNet | No |
| Feature | Encapsulated, Health/Marginal Signal Output |
| Homerun Exit Location | 3 ON/1.5 OFF |
| Housing Style | Barrel |
| Indicator | LEDs |
| Input/Output | Discrete |
| Item Status | RELEASED |
| Lens Material | Acrylic |
| Number of pins | 3 |
| Operating voltage | 10-30 V dc |
| Operation | Light/Dark Operate |
| Opposed Mode Emitter/Receiver | Receiver |
| Power Good Output | DC |
| Protection class shaft | IP67 |
| Receptacle housing material B | Thermoplastic |
| Sensing Beam | Infrared LED |
| Sensing Beam Wavelength | 880 |
| Min Op. Temperature (C) | -40 |
| NEMA / UL Type Rating | NEMA 4X |
| Slot width (mm) | 2 |
| Delay at Power-up (ms) | 100 |
| Max Sensing Distance (mm) | 150000 |
| Max Op. Temp. (C) | 70 |
| Max Op. Relative Humidity (%) | 90% @ 50°C |
| Barrel Diameter (mm) | 30 |
Description
EZ-BEAM SM30 Series: Receiver
Range: 60 m; Input: 10-30 V dc
Output: Complementary NPN
2 m (6.5 ft) Cable
