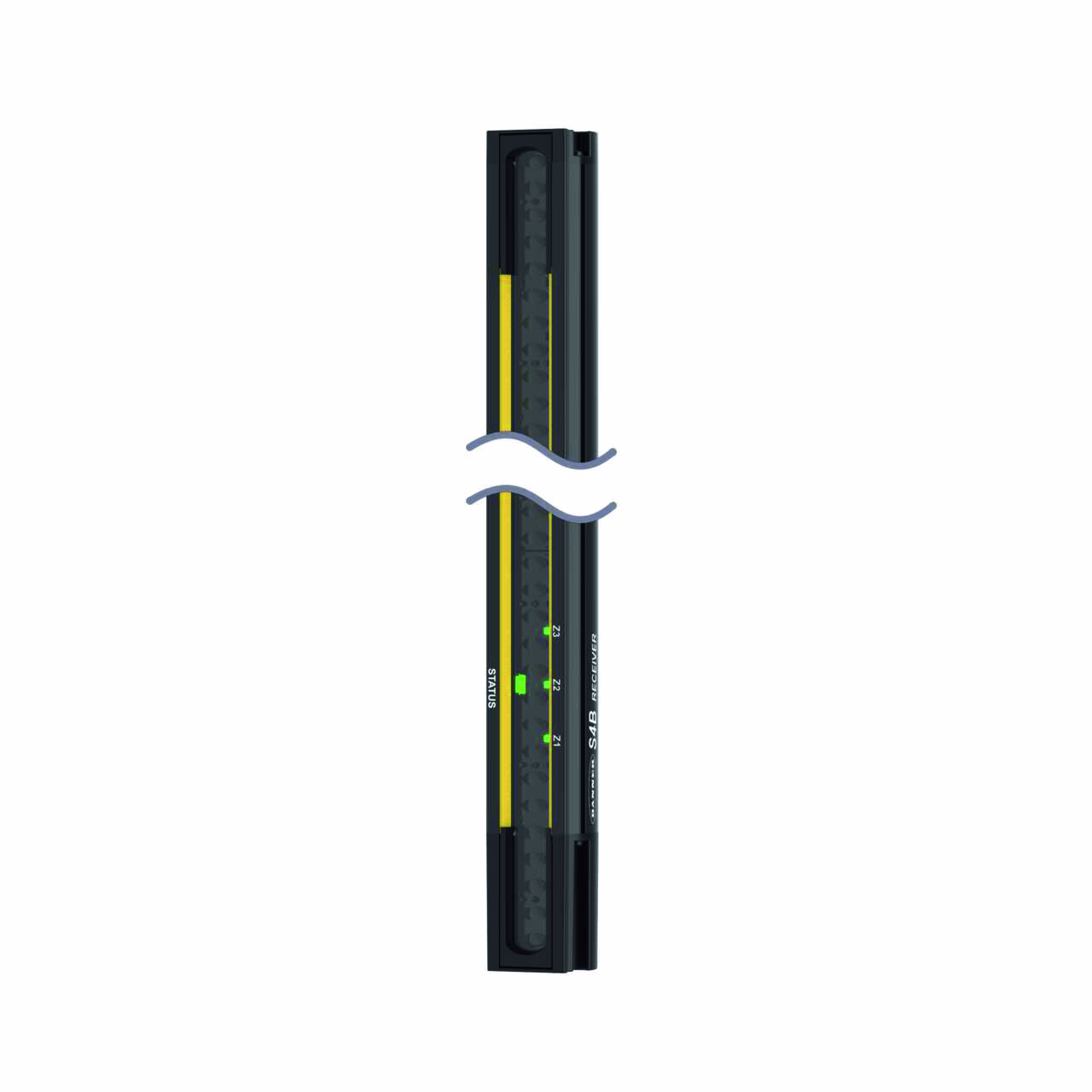

Safety Light Curtain S4BR14-600-S
Safety Light Curtain
| Ambient temperature max. (°C) | 55 |
|---|---|
| Ambient temperature min. (°C) | -20 |
| Cascadable | Yes |
| Design | With display |
| Dimensions | 610 mm x 38 mm x 39.6 mm |
| Electrical output | Connection cable |
| Function | Light screen |
| Housing material | Aluminum/plastic/die-cast zinc |
| Housing quality | Anodized AL |
| Light type | IR |
| Max. range (mm) | 12000 |
| Optical resolution (mm) | 14 |
| Protection class | IP65 |
| Scan field (mm) | 600 |
| Switching element function | 2 x OSSD, NO contact |
| Start/Restart interlock | adjustable |
| With muting function | Yes |
