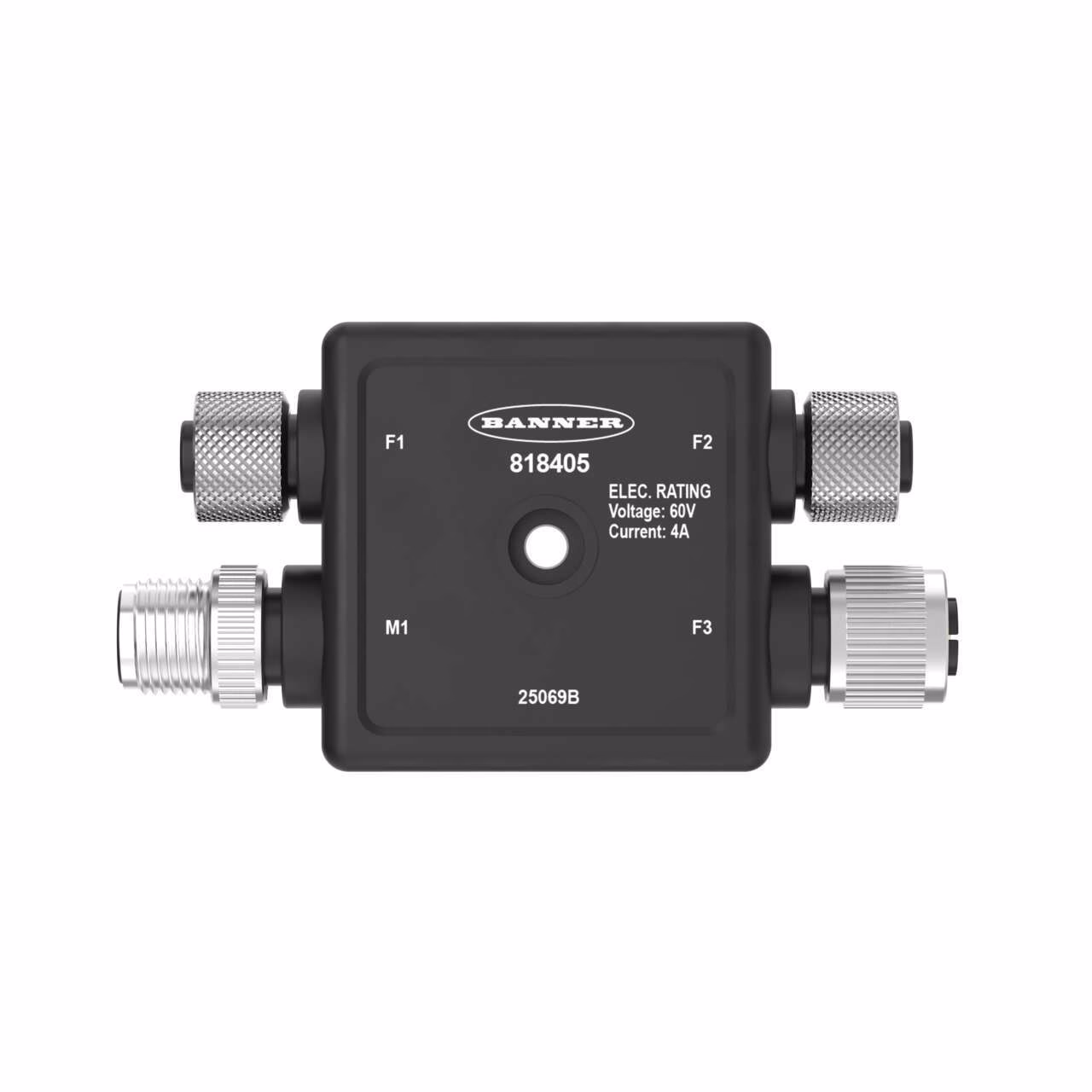

Side Exit – Banner – R50-M12LM5-M12LF5-2M12F5-P
4-Port Molded Junction Block
2 Female 4-pin M12 A-Code Drops, 1 Female 5-pin M12 L-Code Ports
Male 5-pin M12 L-Code Integral Homerun

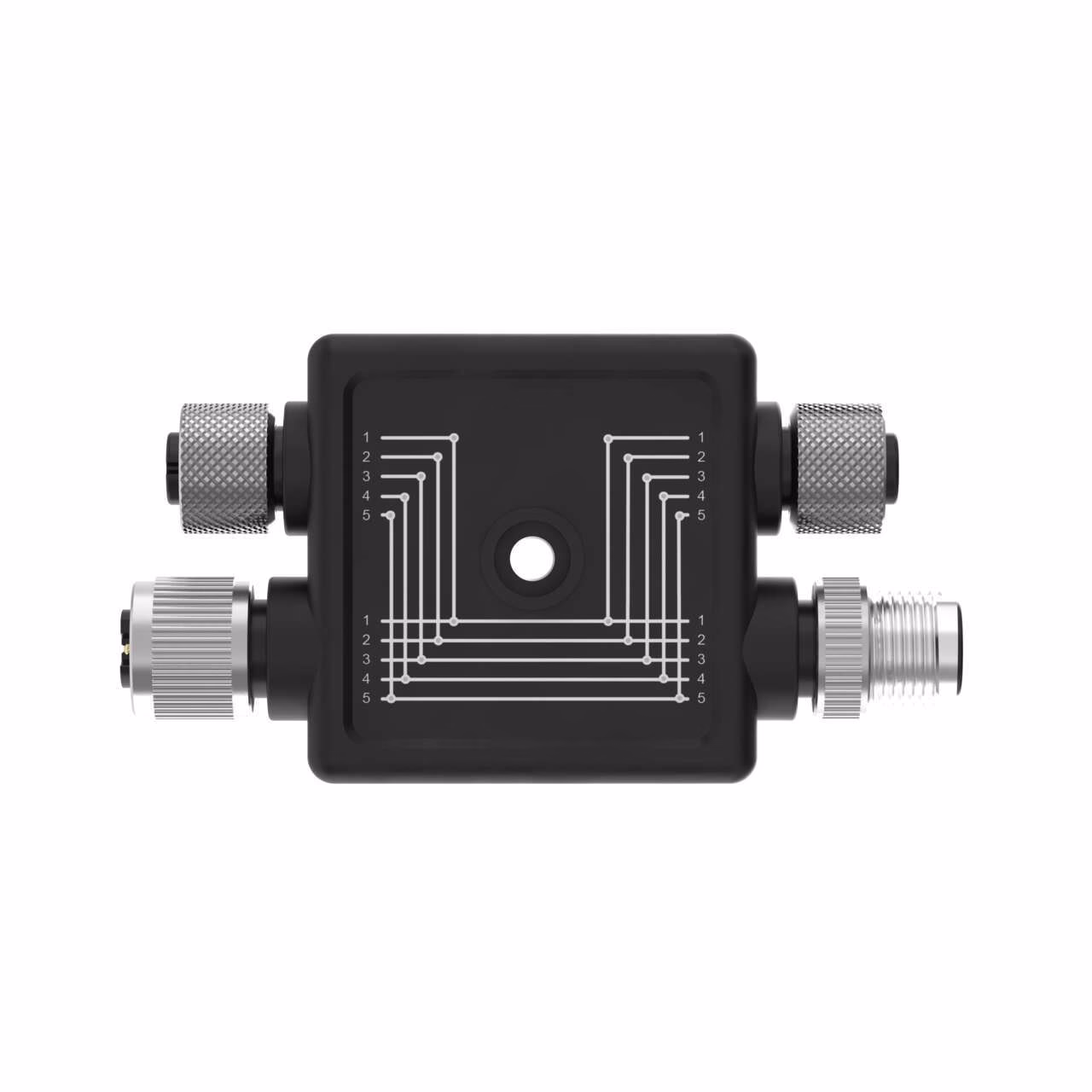

Parallel Wiring, H Configuration
| Coupling Nut Material | Nickel Plated Brass |
|---|---|
| EPLAN Original Sent Date | 02/25/2026 |
| EPLAN Status | Pending Publish |
| Group terminal | Integral M12 |
| Housing Style | R50 |
| Item Status | RELEASED |
| Operating voltage | 63 V dc |
| Receptacle housing material B | TPU |
| Signal Port Type | M12-A |
| Homerun Connector Pins | 5.0 |
| Wiring Type | Power |
Description
4-Port Molded Junction Block
2 Female 4-pin M12 A-Code Drops, 1 Female 5-pin M12 L-Code Ports
Male 5-pin M12 L-Code Integral Homerun
Parallel Wiring, H Configuration
