| Ambient temperature max. (°C) | 80 |
|---|---|
| Ambient temperature min. (°C) | -25 |
| Application | Signal |
| Approvals | cULus |
| Cable color | Black |
| Cable diameter (mm) | 4.8 |
| Cable length (m) | 2 |
| Cable quality | PUR |
| Connector A | A-coded, Angled, Female, M12×1 |
| Connector B | A-coded, Angled, M12×1, Male |
| Coupling nut/screw material A | Brass |
| Coupling nut/screw material B | Brass |
| Current (A) | 4 |

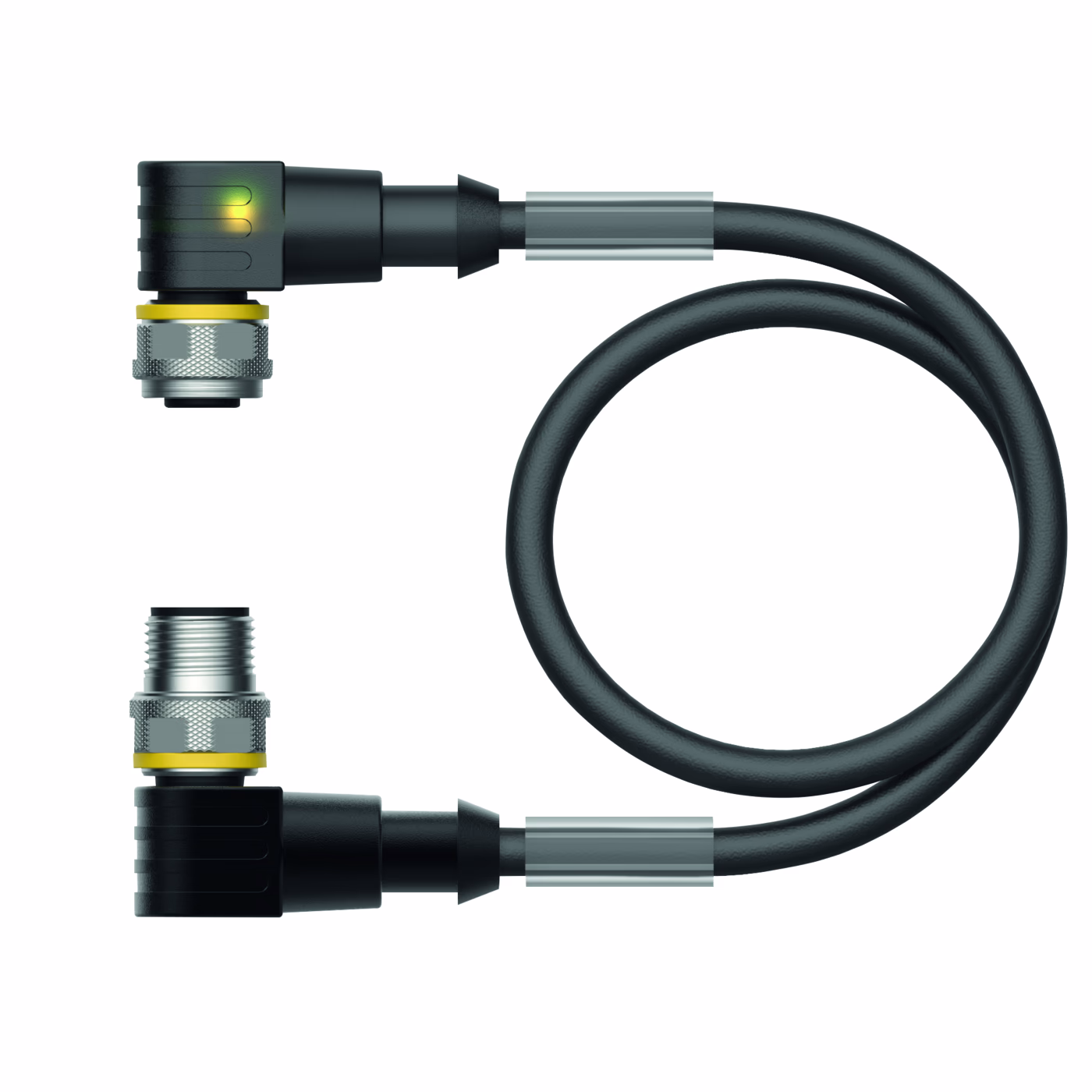

| Design | Extension Cable |
| Number of Conductors | 5 |
| Number of pins | 4+PE |
| Plug body | Plastic |
| Special features | Suitable for drag chain use |
| Core cross section mm? | 0.34 |
