Single-Ended – Banner – BC-M12F12A-24-10

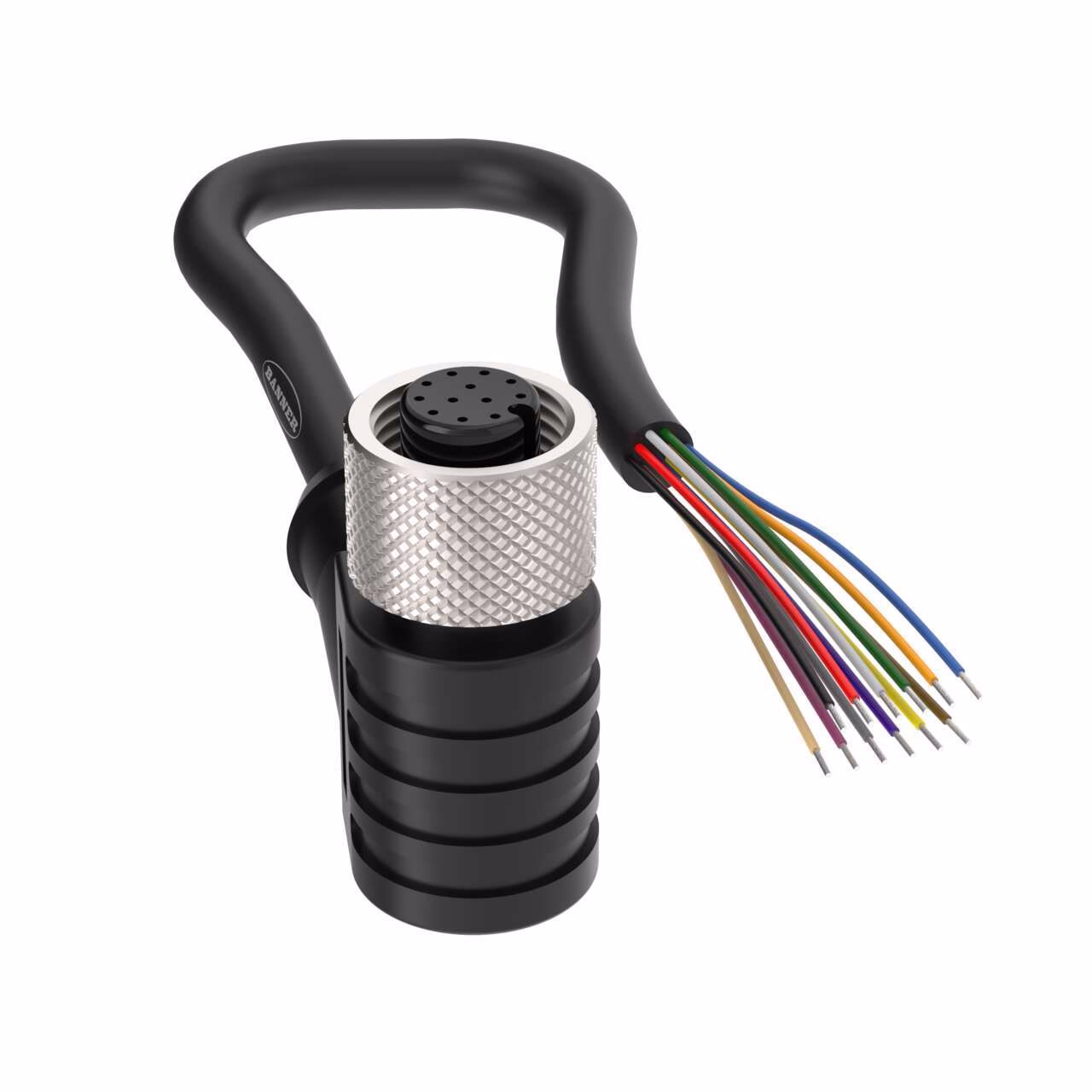

Cordset: Single-Ended M12
12-pin Right-Angle Female
10 m (32.80 ft) 12×24 Black PVC Jacket
TPU Black; Nickel-Plated Brass Coupling Nut
| Cable Jacket Color | Black |
|---|---|
| Cable Jacket Material | PVC |
| Cordset Length (m) | 10.0 |
| Coupling Nut Material | Nickel Plated Brass |
| Outside Cable Diameter (mm) | 6.35 |
| Shield/No Shield | No Shield |
| Connector 1 Key Code | A |
| Connector 1 Orientation | Right Angle |
| Connector 1 Type | M12 |
| Connector 2 Type | Flying Leads |
| Connector B | Female |
| Current (A) | 2.0 |
| EPLAN Original Sent Date | 05/07/2025 |
| EPLAN Status | Published |
| Item Status | RELEASED |
| Number of Ends | Single Ended |
| Operating voltage | 75 V ac/dc |
| Overmold Material and Color | PUR Black |
| Maximum Temp. (Celsius) | 70.0 |
| Number of pins.1 | 12.0 |
| Minimum Temp. (Celsius) | -40.0 |
Description
Cordset: Single-Ended M12
12-pin Right-Angle Female
10 m (32.80 ft) 12×24 Black PVC Jacket
TPU Black; Nickel-Plated Brass Coupling Nut
