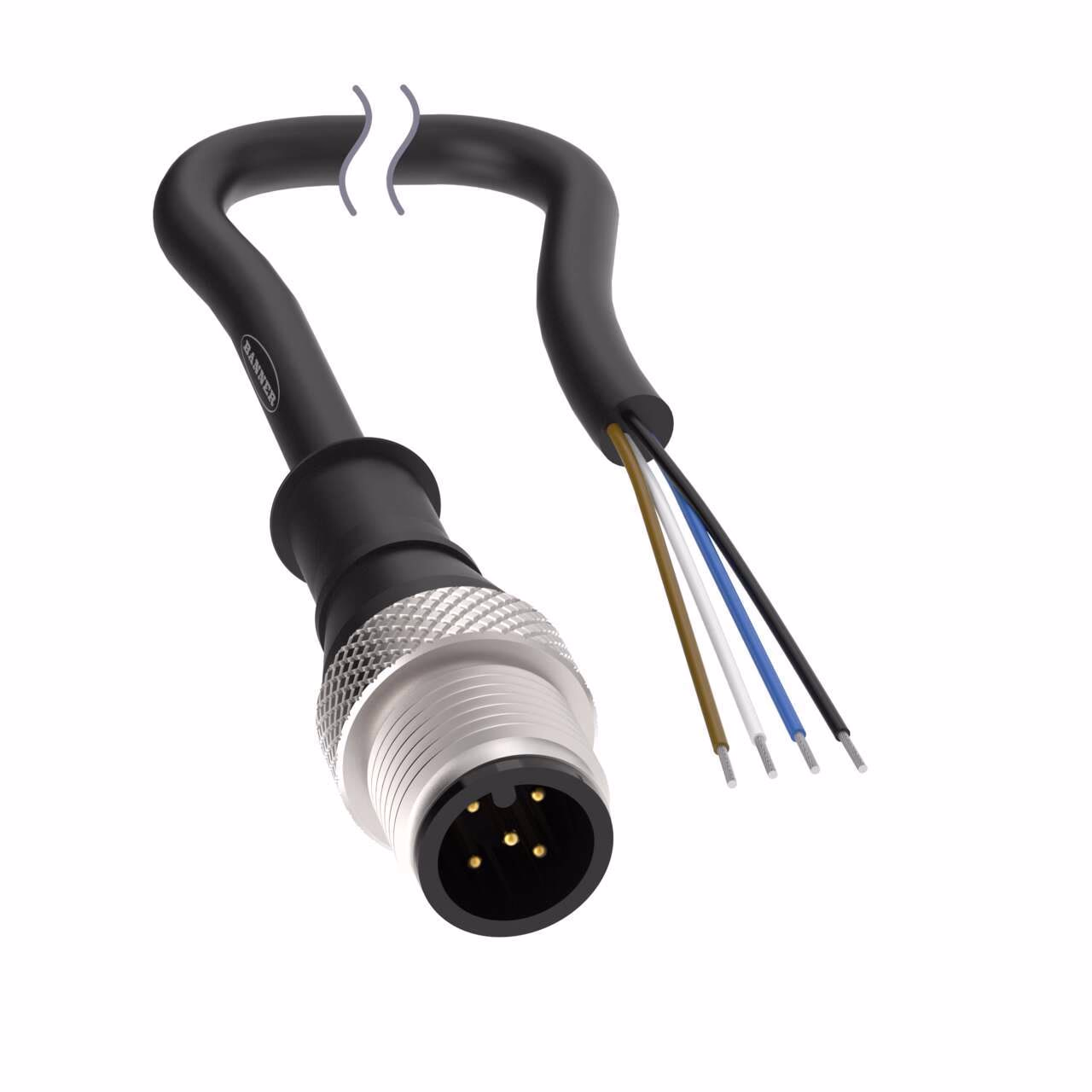

Single-Ended – Banner – BC-M12M4-22-2
Cordset: Single-Ended M12
4-pin Straight Male Connector
2 m (6.56 ft) 4×22 Black PVC Jacket
Nickel-Plated Brass Coupling Nut
| Cable Jacket Color | Black |
|---|---|
| Cable Jacket Material | PVC |
| Cordset Length (m) | 2.0 |
| Coupling Nut Material | Nickel Plated Brass |
| Outside Cable Diameter (mm) | 5.21 |
| Shield/No Shield | No Shield |
| Connector 1 Key Code | A |
| Connector 1 Orientation | Straight |
| Connector 1 Type | M12 |
| Connector 2 Type | Flying Leads |
| Connector B | Male |
| EPLAN Original Sent Date | 03/26/2025 |
| EPLAN Status | Published |
| Item Status | RELEASED |
| Number of Ends | Single Ended |
| Overmold Material and Color | PUR Black |
| Number of pins.1 | 4.0 |
Description
Cordset: Single-Ended M12
4-pin Straight Male Connector
2 m (6.56 ft) 4×22 Black PVC Jacket
Nickel-Plated Brass Coupling Nut
