Single-Ended – Banner – BC-M23F12A-22-10-SFP

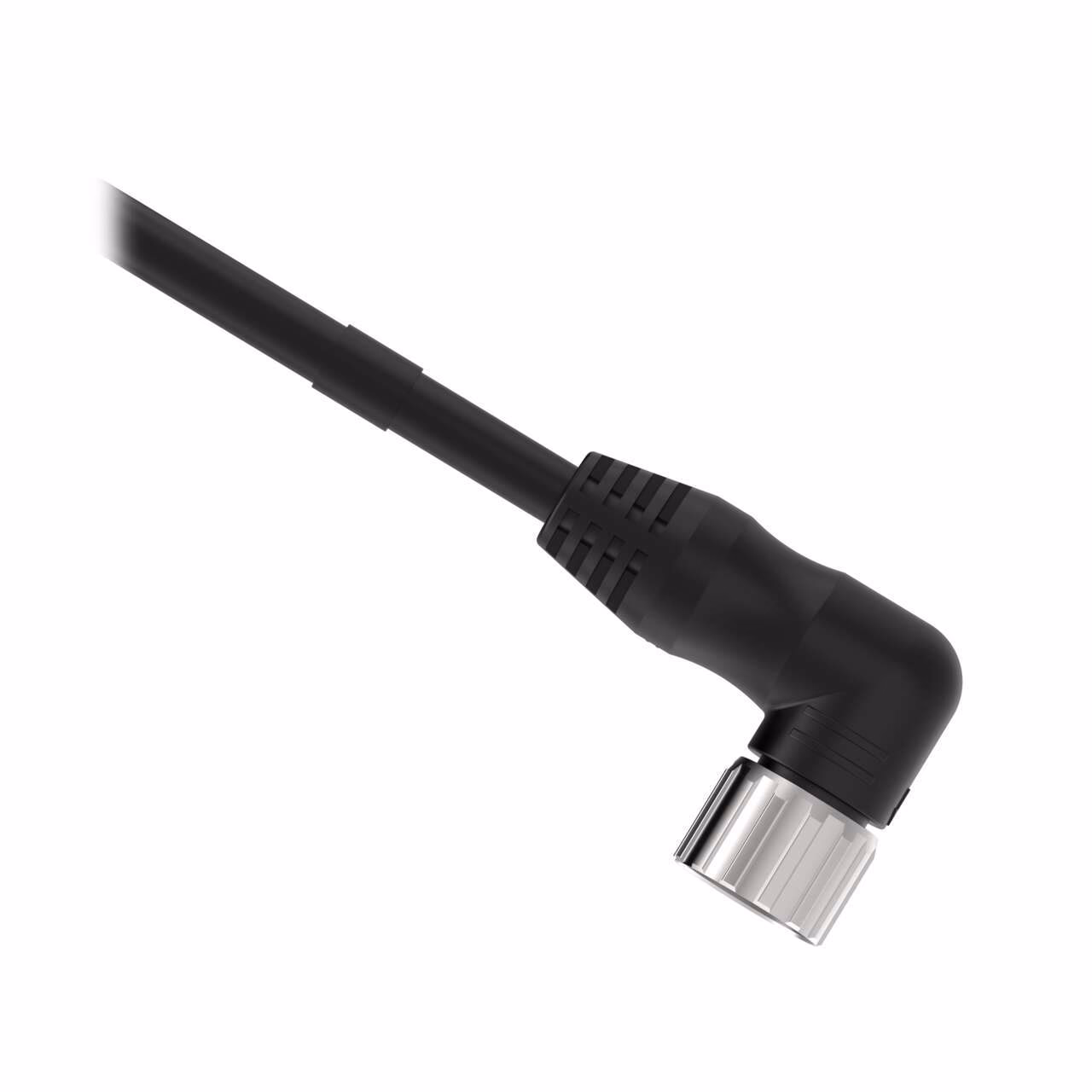

Cordset: Single-Ended M23
12-pin Right-Angle Female Connector
10 m (32.8 ft) 12×22 Shielded Black PVC Jacket
Nickel-Plated Brass Coupling Nut, Shield tied to Pin
| Cable Jacket Color | Black |
|---|---|
| Cable Jacket Material | PVC |
| Cordset Length (m) | 10.0 |
| Coupling Nut Material | Nickel Plated Brass |
| Shield/No Shield | Shield – Tied to Coupling Nut |
| Connector 1 Orientation | Right Angle |
| Connector 1 Type | M23 |
| Connector 2 Type | Flying Leads |
| Connector B | Female |
| Current (A) | 4.0 |
| EPLAN Original Sent Date | 02/14/2025 |
| EPLAN Status | Published |
| Item Status | RELEASED |
| Number of Ends | Single Ended |
| Operating voltage | 300 V ac/dc |
| Overmold Material and Color | TPU Black |
| Maximum Temp. (Celsius) | 80.0 |
| Number of pins.1 | 12.0 |
| Minimum Temp. (Celsius) | -25.0 |
Description
Cordset: Single-Ended M23
12-pin Right-Angle Female Connector
10 m (32.8 ft) 12×22 Shielded Black PVC Jacket
Nickel-Plated Brass Coupling Nut, Shield tied to Pin
