Single-Ended – Banner – BC-M23F19A-1822-2

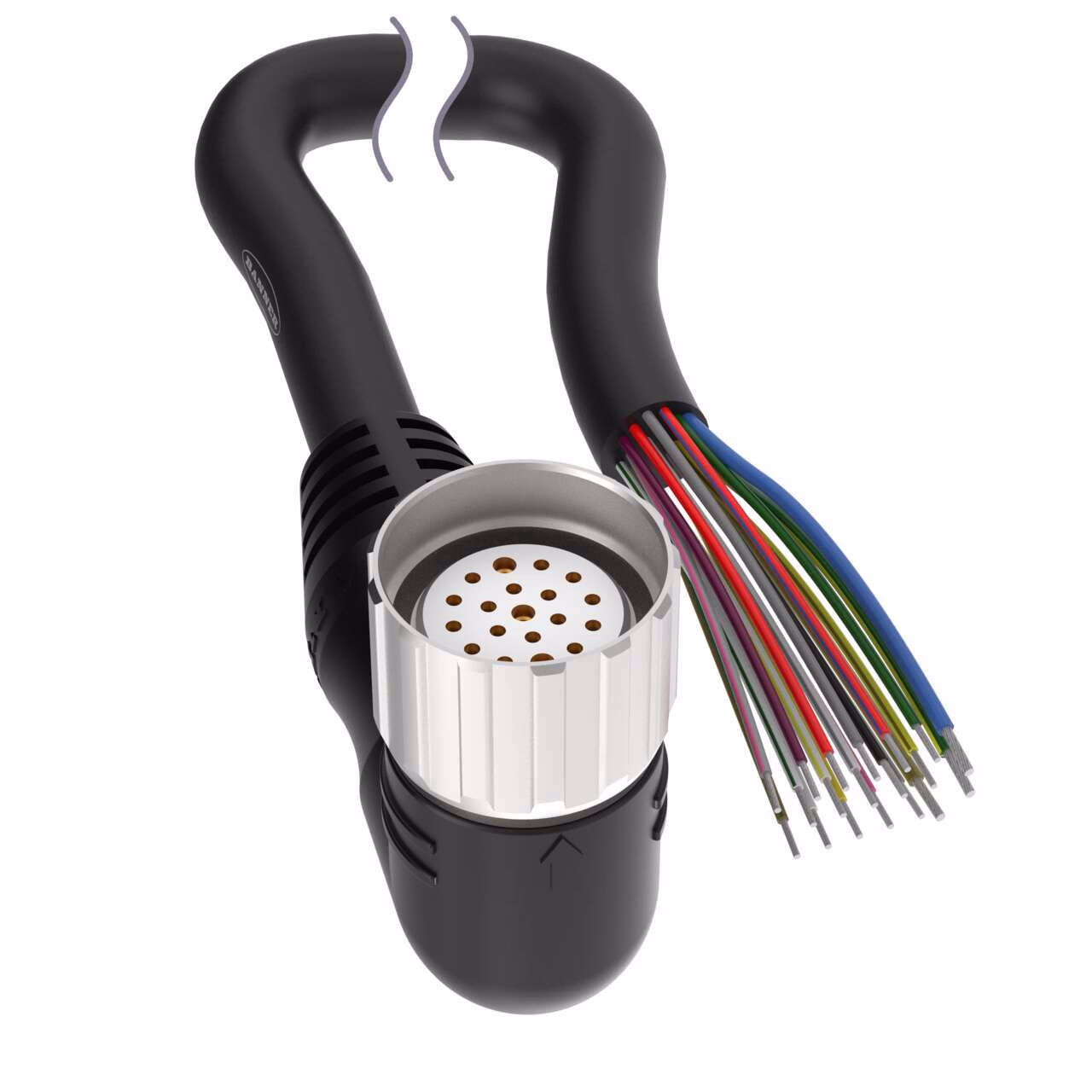

Cordset: Single-Ended M23
19-pin Right-Angle Female Connector
2 m (6.56 ft) 3×18+16×22 Black PVC Jacket
Nickel-Plated Brass Coupling Nut
| Cable Jacket Color | Black |
|---|---|
| Cable Jacket Material | PVC |
| Cordset Length (m) | 2.0 |
| Coupling Nut Material | Nickel Plated Brass |
| Shield/No Shield | No Shield |
| Connector 1 Orientation | Right Angle |
| Connector 1 Type | M23 |
| Connector 2 Type | Flying Leads |
| Connector B | Female |
| Current (A) | 4.0 |
| Item Status | RELEASED |
| Number of Ends | Single Ended |
| Operating voltage | 150 V ac/dc |
| Overmold Material and Color | TPU Black |
| Maximum Temp. (Celsius) | 80.0 |
| Number of pins.1 | 19.0 |
| Minimum Temp. (Celsius) | -25.0 |
Description
Cordset: Single-Ended M23
19-pin Right-Angle Female Connector
2 m (6.56 ft) 3×18+16×22 Black PVC Jacket
Nickel-Plated Brass Coupling Nut
