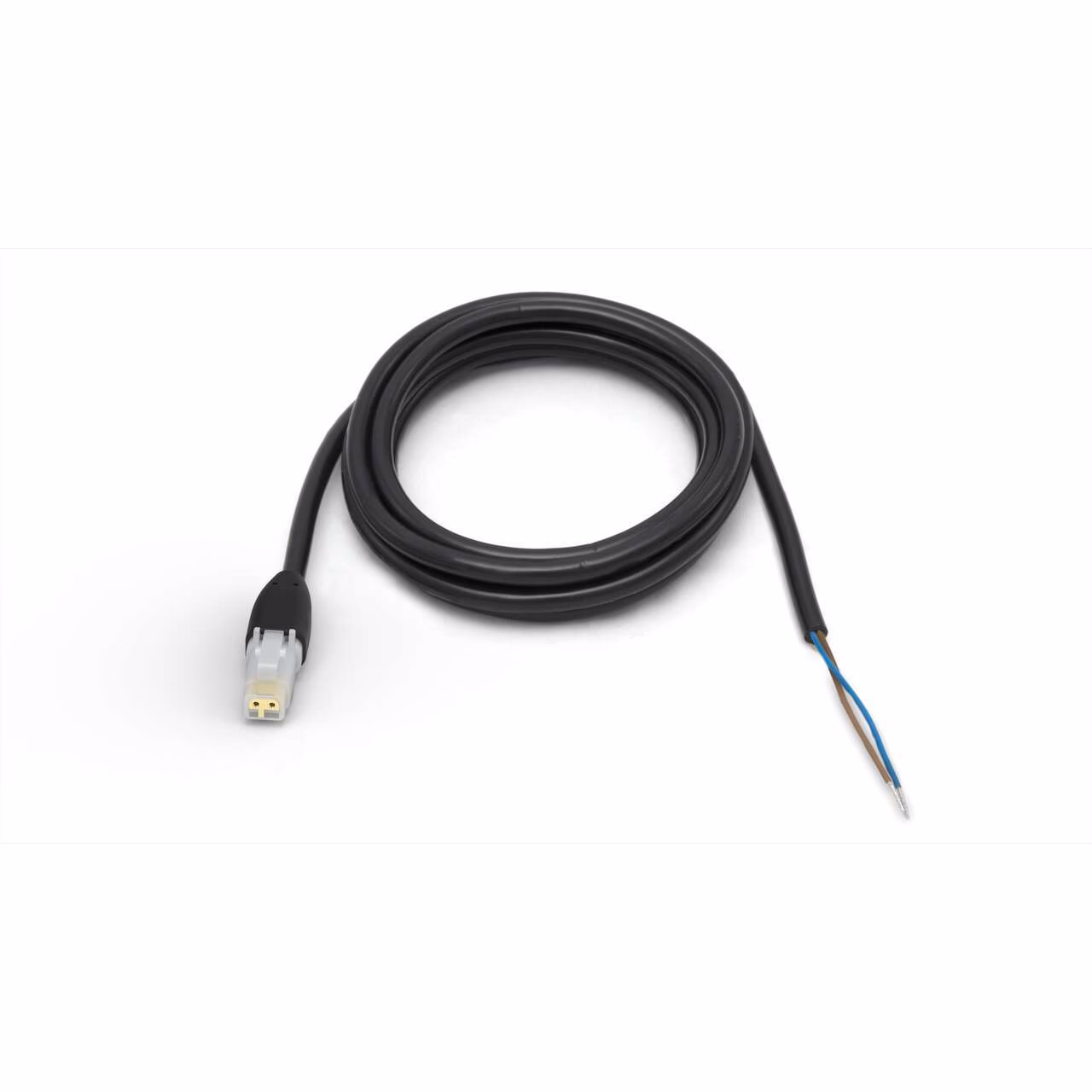

Single-Ended – Banner – DTMC-230
Cordset: Single-Ended DTM06-2S
2-pin Straight Female
9.15 m 2×22 Black PVC Jacket
PVC Black
| Cable Jacket Color | Black |
|---|---|
| Cable Jacket Material | PVC |
| Cordset Length (m) | 9.15 |
| Outside Cable Diameter (mm) | 4.8 |
| Shield/No Shield | No Shield |
| Coiled | No |
| Connector 1 Orientation | Straight |
| Connector 1 Type | DTM06-2S |
| Connector 2 Type | Flying Leads |
| Connector B | Female |
| Indication | No |
| Item Status | RELEASED |
| Number of Ends | Single Ended |
| Oil/Grease Resistant | No |
| Overmold Material and Color | PVC Black |
| Maximum Temp. (Celsius) | 105 |
| Number of pins.1 | 2 |
| Minimum Temp. (Celsius) | -40 |
| Trunk Length (m) | No Trunk |
Description
Cordset: Single-Ended DTM06-2S
2-pin Straight Female
9.15 m 2×22 Black PVC Jacket
PVC Black
