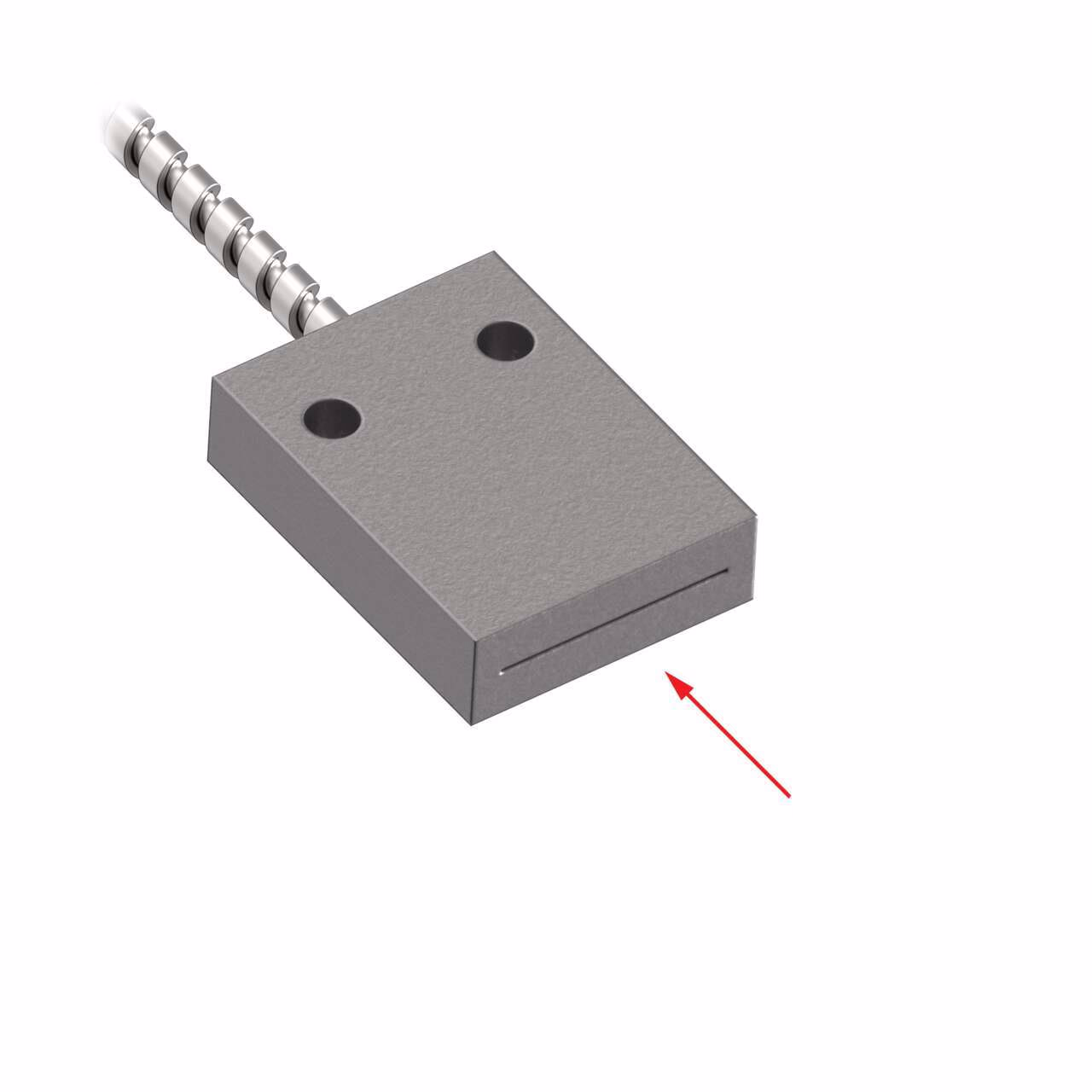

Heavy Duty Fiber Optics – Banner – IR13ST5AL7.6
Glass Fiber Opposed Mode
1 m long
Stainless Steel Sheath
Rectangle Sensing Tip
0.25 mm x 7.62 mm array
Max. Operating Temperature at Sensing Tip, 315C
Terminated for use in Plastic Fiber Sensors
| Array Length (mm) | 7.6 |
|---|---|
| Beam Exit | In-line |
| Fiber Sensing End Size | 19.1 x 25.4 mm |
| Fiber Sensing End Size - Mounting Area | 19.1 x 25.4 mm |
| Fiber Sensing End Tip | Array |
| Max Distance: DF-G2 (mm) | 1165 |
| Max Range: DF-G3 (mm) | >5m |
| Sensing End Material (Specific) | Aluminum |
| Sensing End Segment 1 | Rectangle |
| Sensing End Segment 2 | Array |
| Sensing Mode (General) | Opposed |
| Connection technology signal | Array |
| Core cross section mm? | 25 |
| Coupler/converter/switch | Plastic Fiber Sensors |
| Feature | Small Object Detection |
| Fiber Optic Type | Glass |
| Fiber Sheathing Material (Jacket) | Stainless Steel Monocoil |
| Flex Relief | No |
| Housing Style | Rectangular |
| Integrated Lens | No |
| Item Status | RELEASED |
| Quantity Included | 1 |
| Retractile | No |
| Termination | Terminated |
| Tariff Fiber Meters (fbm) | 829 |
| Max Temp (C) | 315 |
| Fiber Length (m) | 1 |
| Core Diameter (mm) | 1.6 |
| Max Distance: DF-G1 (mm) | 719 |
| Max Distance: DF-G3 (mm) | 5590 |
| Measured Max Distance (mm) | 719 |
Description
Glass Fiber Opposed Mode
1 m long
Stainless Steel Sheath
Rectangle Sensing Tip
0.25 mm x 7.62 mm array
Max. Operating Temperature at Sensing Tip, 315C
Terminated for use in Plastic Fiber Sensors
