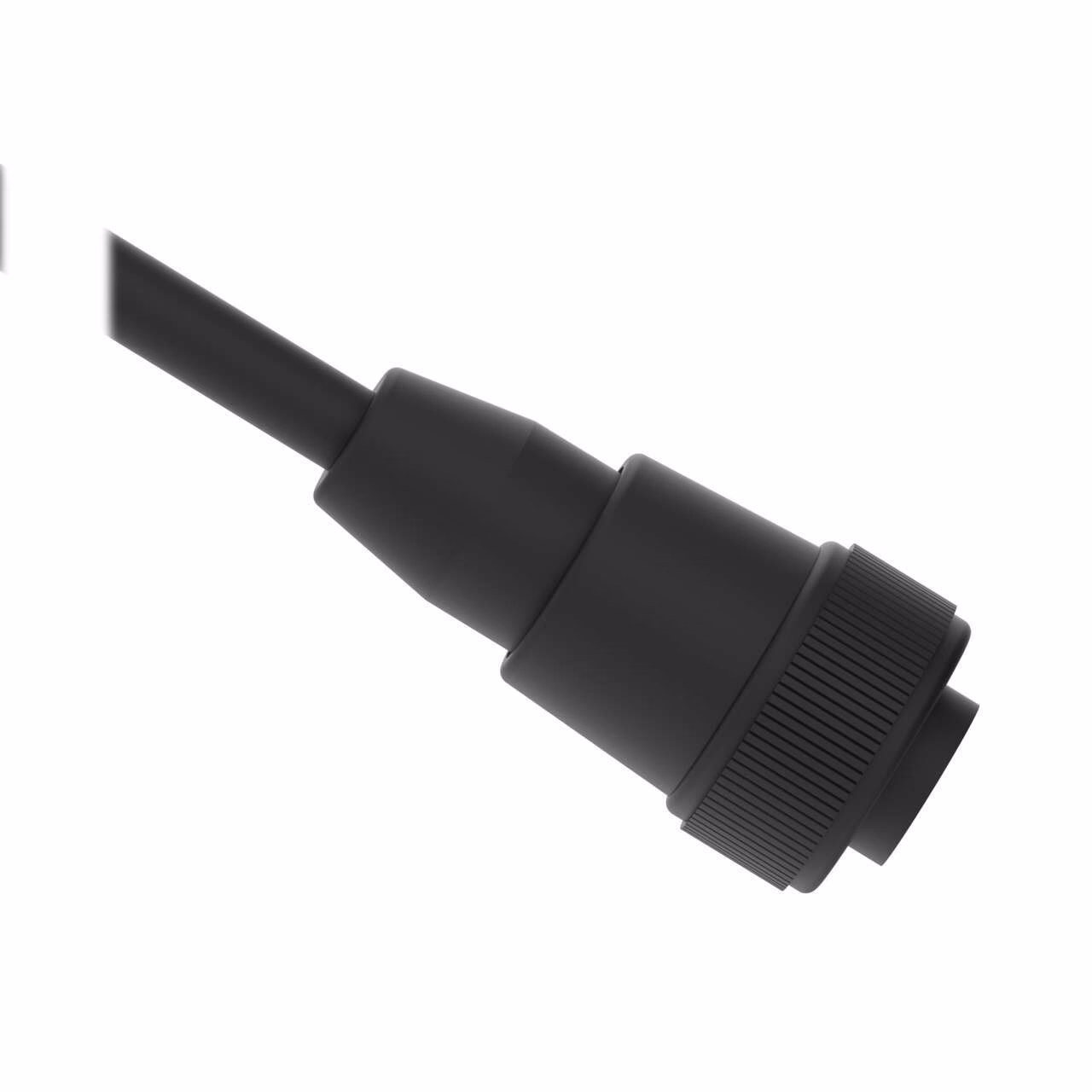

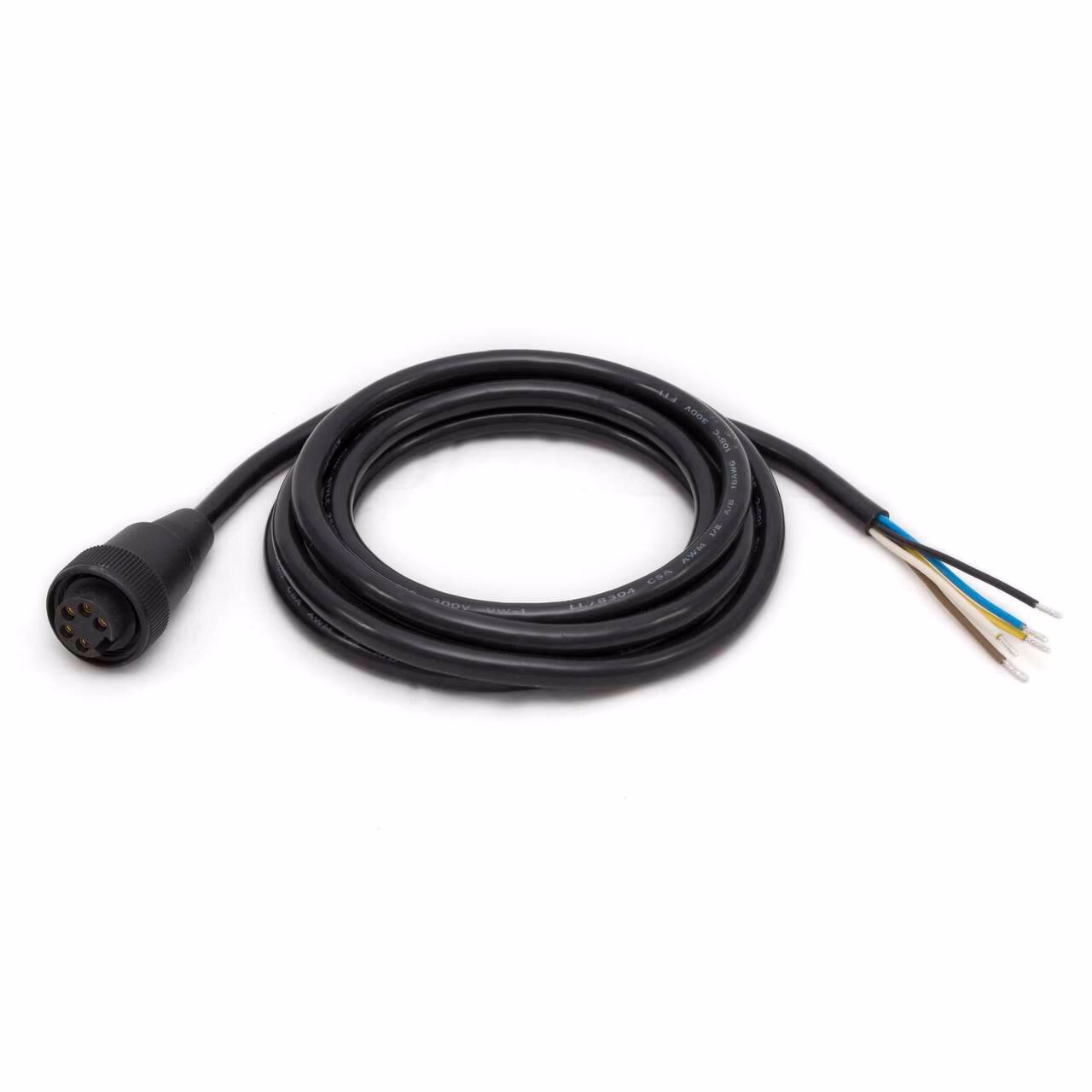

Single-Ended – Banner – MBCC-512
Cordset: Single-Ended 7/8 in
5-pin Straight Female
3.66 m 5×18 Black PVC Jacket
Nylon Black Coupling Nut
| Cable Jacket Color | Black |
|---|---|
| Cable Jacket Material | PVC |
| Cordset Length (m) | 3.66 |
| Coupling Nut Material | Nylon Black |
| Outside Cable Diameter (mm) | 7 |
| Shield/No Shield | No Shield |
| Coiled | No |
| Connector 1 Orientation | Straight |
| Connector 1 Type | 7/8 in. (Mini) |
| Connector 2 Type | Flying Leads |
| Connector B | Female |
| Current (A) | 9 |
| Indication | No |
| Item Status | RELEASED |
| Number of Ends | Single Ended |
| Oil/Grease Resistant | No |
| Operating voltage | 300 V ac/dc |
| Overmold Material and Color | PUR Black |
| Protection class shaft | IP67 |
| Maximum Temp. (Celsius) | 70 |
| Number of pins.1 | 5 |
| Minimum Temp. (Celsius) | -40 |
| Trunk Length (m) | No Trunk |
Description
Cordset: Single-Ended 7/8 in
5-pin Straight Female
3.66 m 5×18 Black PVC Jacket
Nylon Black Coupling Nut
