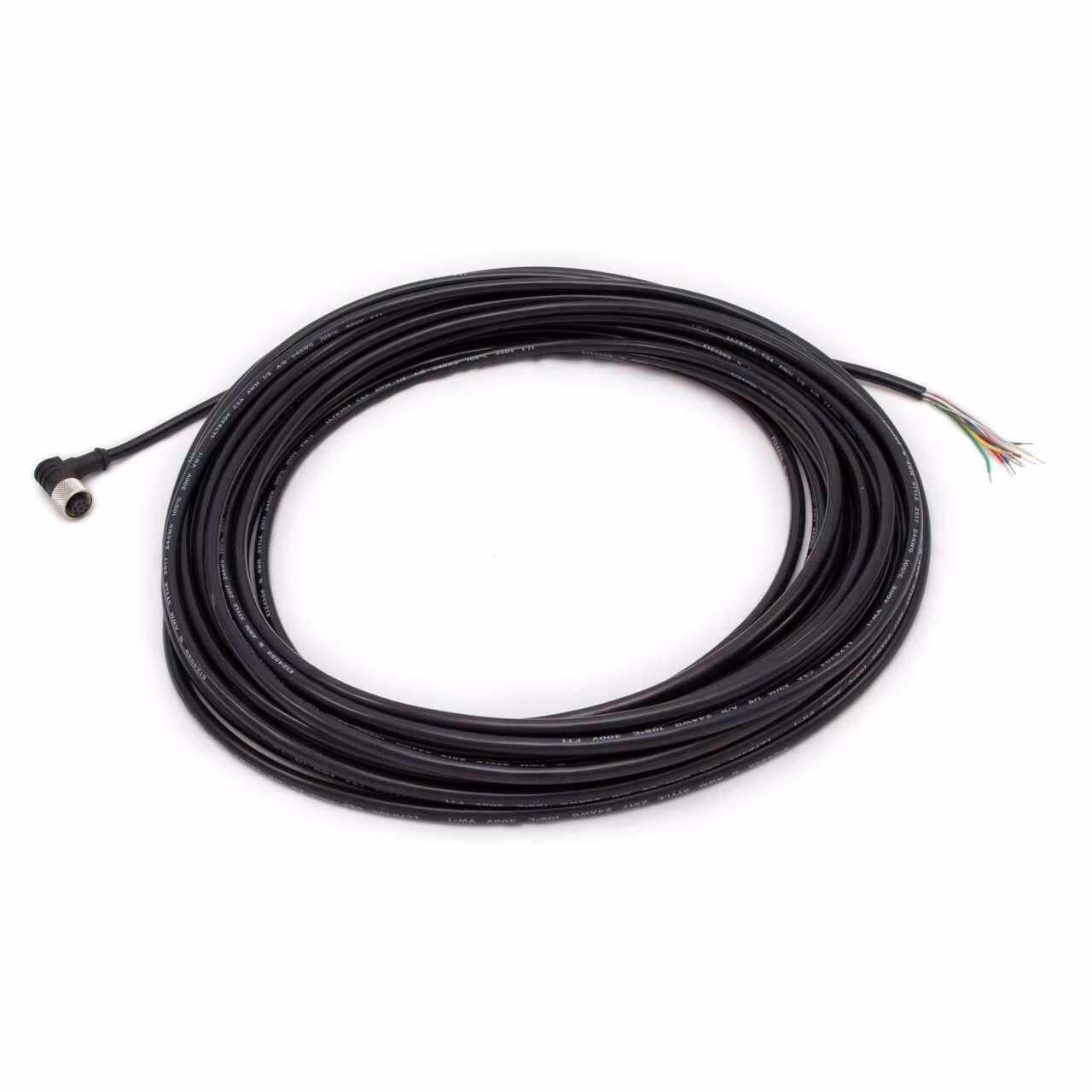

Single-Ended – Banner – MQDC2S-806RA
Cordset: Single-Ended M12
8-pin Right-Angle Female
2 m (6.56 ft) 8×24 Shielded Black PVC Jacket
Nickel-Plated Brass Coupling Nut
| Application | Signal |
|---|---|
| Cable Jacket Color | Black |
| Cable Jacket Material | PVC |
| Connector 1 Body Size | Standard |
| Connector 1 Coupling Nut Material | Nickel Plated Brass |
| Connector 1 Overmold Material and Color | PUR Black |
| Connector 1 Shield | No Shield |
| Connector 1 Thread/Snap | Threaded |
| Cordset Length (m) | 2 |
| Coupling Nut Material | Nickel Plated Brass |
| Number of Conductors | 8 |
| Outside Cable Diameter (mm) | 5.59 |
| Shield/No Shield | Shield – Floating to Drain |
| Wire AWG | 24 |
| Connector 1 Key Code | A |
| Connector 1 Orientation | Right Angle |
| Connector 1 Type | M12 |
| Connector 2 Type | Flying Leads |
| Connector B | Female |
| Current (A) | 2 |
| Item Status | RELEASED |
| Number of Ends | Single Ended |
| Oil/Grease Resistant | No |
| Operating voltage | 30 V dc |
| Overmold Material and Color | PUR Black |
| Protection class shaft | IP67 |
| Maximum Temp. (Celsius) | 70 |
| Number of pins.1 | 8 |
| Minimum Temp. (Celsius) | -40 |
Description
Cordset: Single-Ended M12
8-pin Right-Angle Female
2 m (6.56 ft) 8×24 Shielded Black PVC Jacket
Nickel-Plated Brass Coupling Nut
