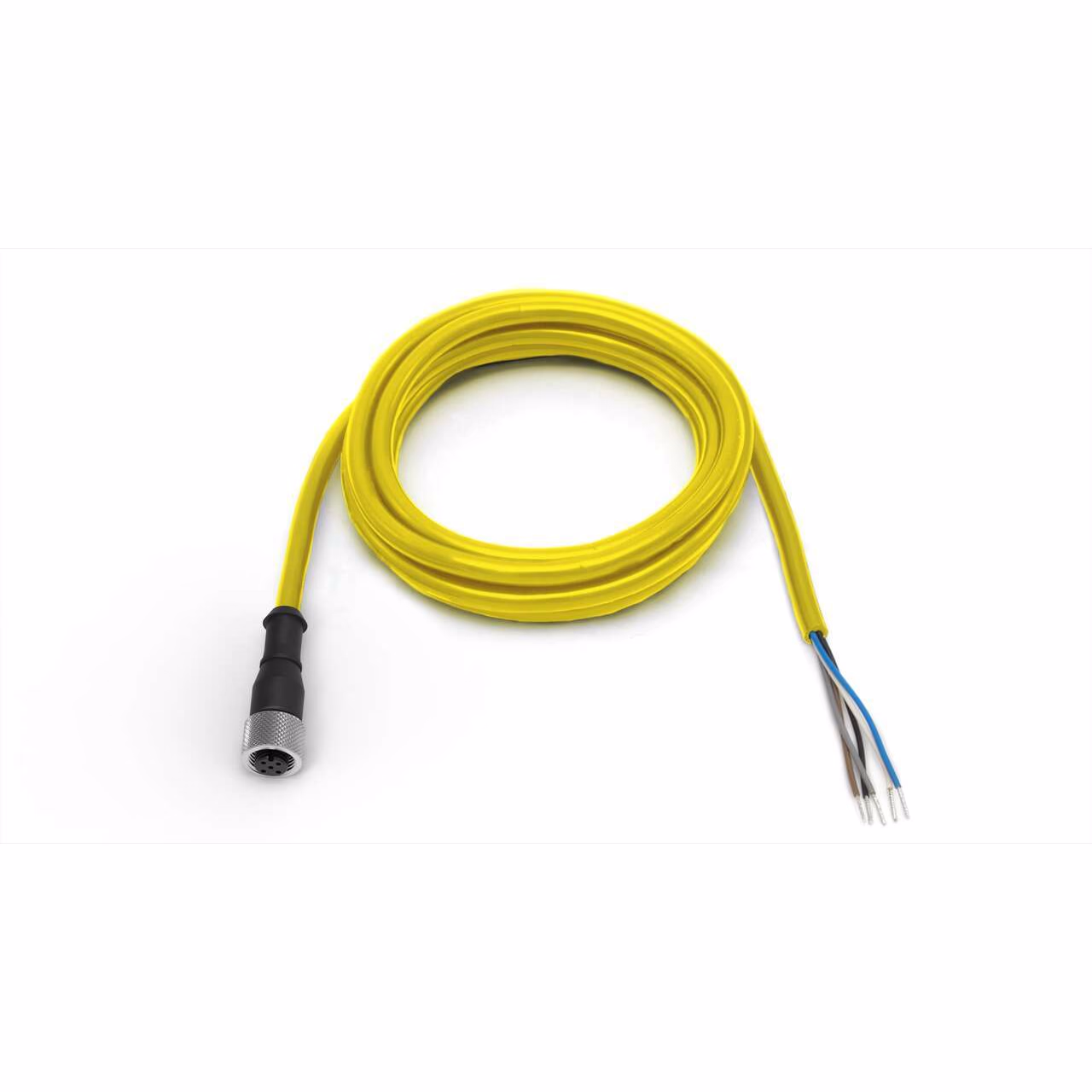

Single-Ended – Banner – QDE-515D
Cordset: Single-Ended M12
5-pin Straight Female
4.57 m 5×22 Yellow PVC Jacket
Nickel-Plated Brass Coupling Nut
| Application | Safety Accessory |
|---|---|
| Cable Jacket Color | Yellow |
| Cable Jacket Material | PVC |
| Connector 1 Thread/Snap | Threaded |
| Cordset Length (m) | 4.57 |
| Coupling Nut Material | Nickel Plated Brass |
| Number of Conductors | 5 |
| Outside Cable Diameter (mm) | 5.46 |
| Wire AWG | 22 |
| Connector 1 Key Code | A |
| Connector 1 Orientation | Straight |
| Connector 1 Type | M12 |
| Connector 2 Type | Flying Leads |
| Connector B | Female |
| Current (A) | 2 |
| Item Status | RELEASED |
| Number of Ends | Single Ended |
| Oil/Grease Resistant | No |
| Operating voltage | 75 V ac/dc |
| Overmold Material and Color | PUR Black |
| Protection class shaft | IP67 |
| Maximum Temp. (Celsius) | 70 |
| Number of pins.1 | 5 |
| Minimum Temp. (Celsius) | -40 |
Description
Cordset: Single-Ended M12
5-pin Straight Female
4.57 m 5×22 Yellow PVC Jacket
Nickel-Plated Brass Coupling Nut
