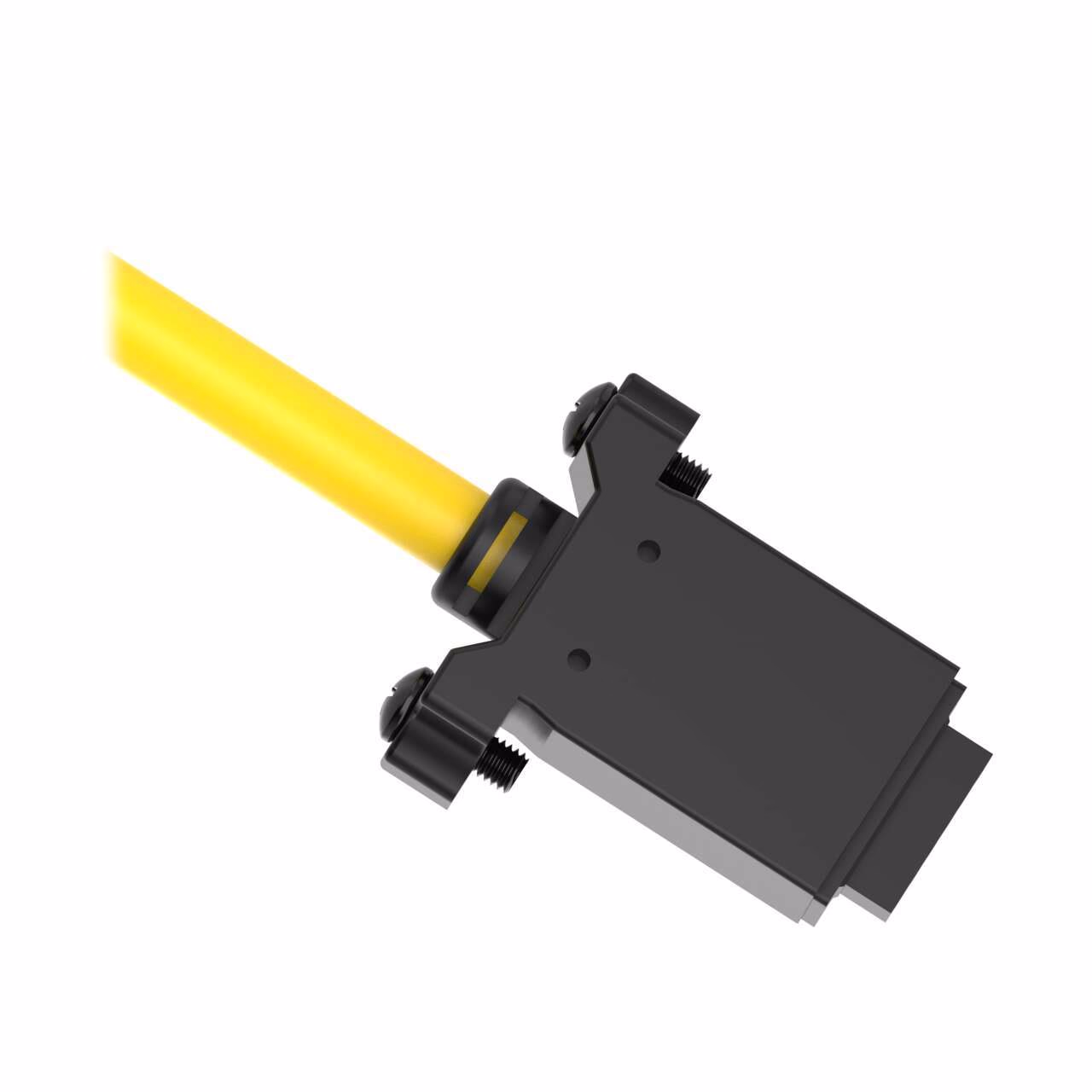

Single-Ended – Banner – RDLS-825DW
Cordset: Single-Ended LS-Custom
12-pin Straight Female
8 m 8×22 Yellow PVC Jacket
PVC Black
| Connector B | Female |
|---|---|
| Current (A) | 2.0 |
| Operating voltage | 30 V ac/dc |
| Protection class shaft | IP67 |
| Item Status | RELEASED |
| Indication | No |
| Maximum Temp. (Celsius) | 70.0 |
| Connector 1 Type | LS-Custom |
| Number of pins.1 | 12.0 |
| Minimum Temp. (Celsius) | -40.0 |
| Number of Ends | Single Ended |
| Cordset Length (m) | 8.0 |
| Connector 1 Orientation | Straight |
| Connector 2 Type | Flying Leads |
| Shield/No Shield | No Shield |
| Cable Jacket Color | Yellow |
| Cable Jacket Material | PVC |
| Outside Cable Diameter (mm) | 6 |
| Overmold Material and Color | PVC Black |
| Oil/Grease Resistant | No |
| Trunk Length (m) | No Trunk |
| Coiled | No |
Description
Cordset: Single-Ended LS-Custom
12-pin Straight Female
8 m 8×22 Yellow PVC Jacket
PVC Black
