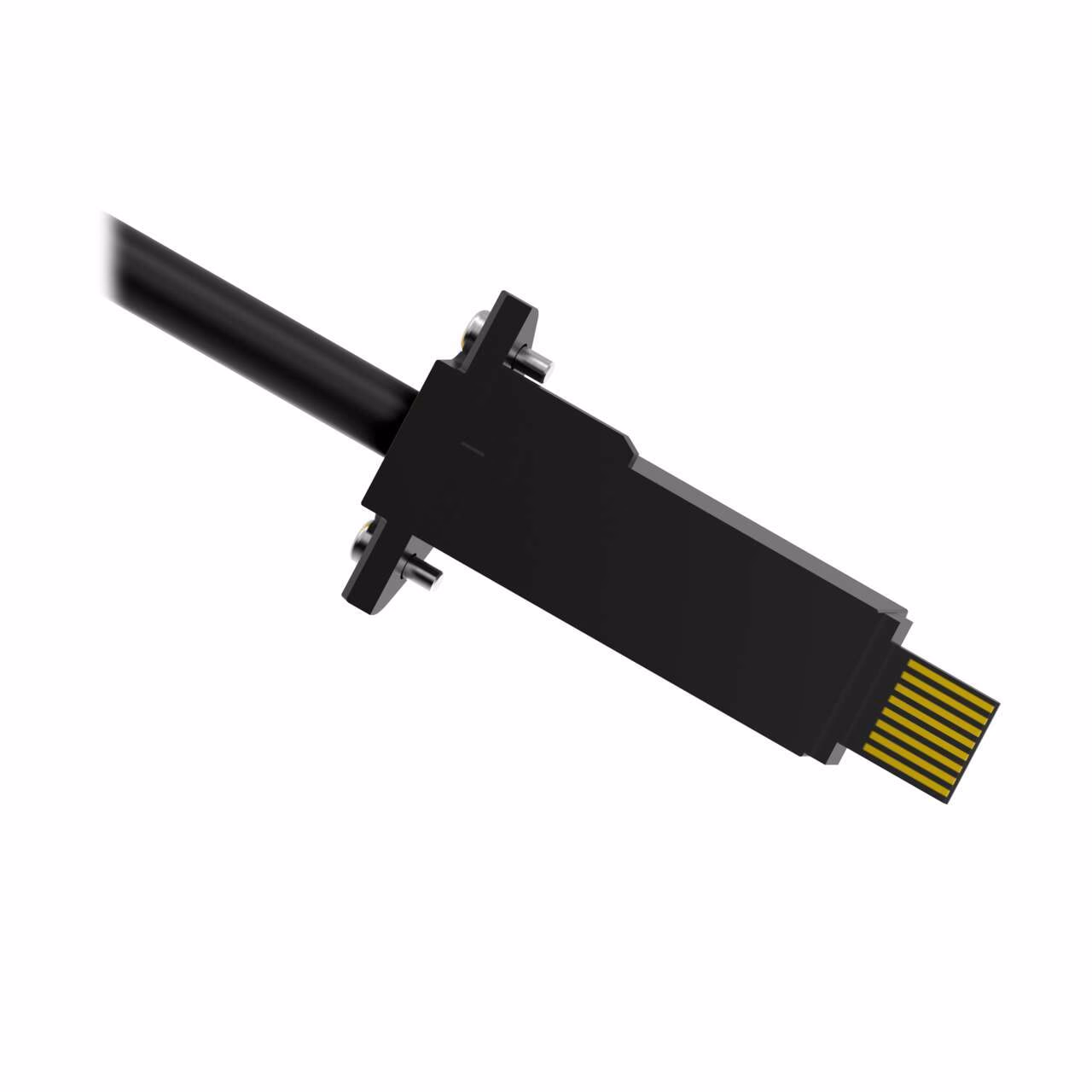

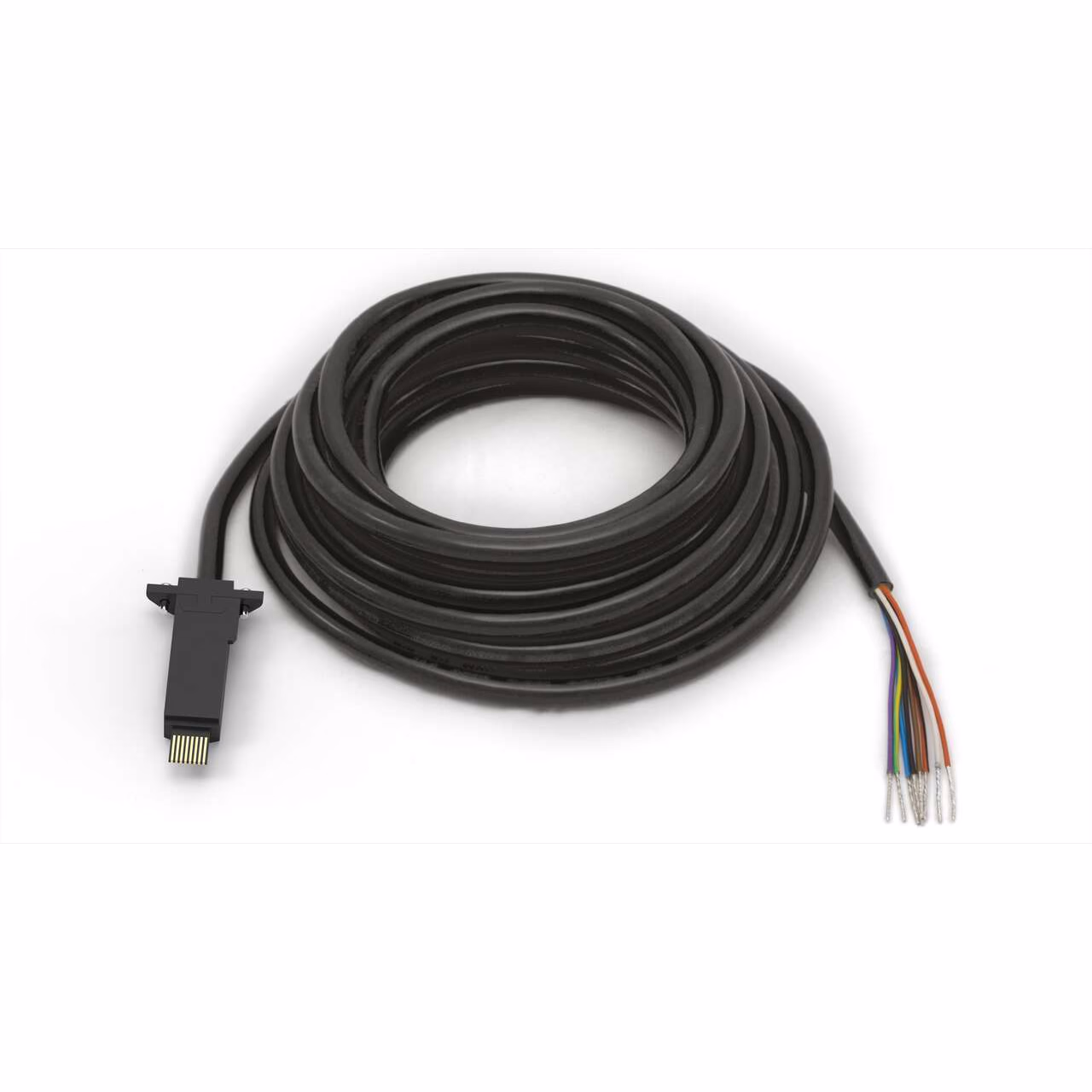

Single-Ended – Banner – RDLP-815DB
Cordset: Single-Ended LP-Custom
8-pin Straight Male
4.6 m 8×22 Black PVC Jacket
TPU Black
| Cable Jacket Color | Black |
|---|---|
| Cable Jacket Material | PVC |
| Cordset Length (m) | 4.6 |
| Outside Cable Diameter (mm) | 6 |
| Shield/No Shield | No Shield |
| Coiled | No |
| Connector 1 Orientation | Straight |
| Connector 1 Type | LP-Custom |
| Connector 2 Type | Flying Leads |
| Connector B | Male |
| Current (A) | 2.0 |
| Indication | No |
| Item Status | RELEASED |
| Number of Ends | Single Ended |
| Oil/Grease Resistant | No |
| Operating voltage | 60 V ac / 75 V dc |
| Overmold Material and Color | TPU Black |
| Protection class shaft | IP67 |
| Maximum Temp. (Celsius) | 55.0 |
| Number of pins.1 | 8.0 |
| Trunk Length (m) | No Trunk |
Description
Cordset: Single-Ended LP-Custom
8-pin Straight Male
4.6 m 8×22 Black PVC Jacket
TPU Black
