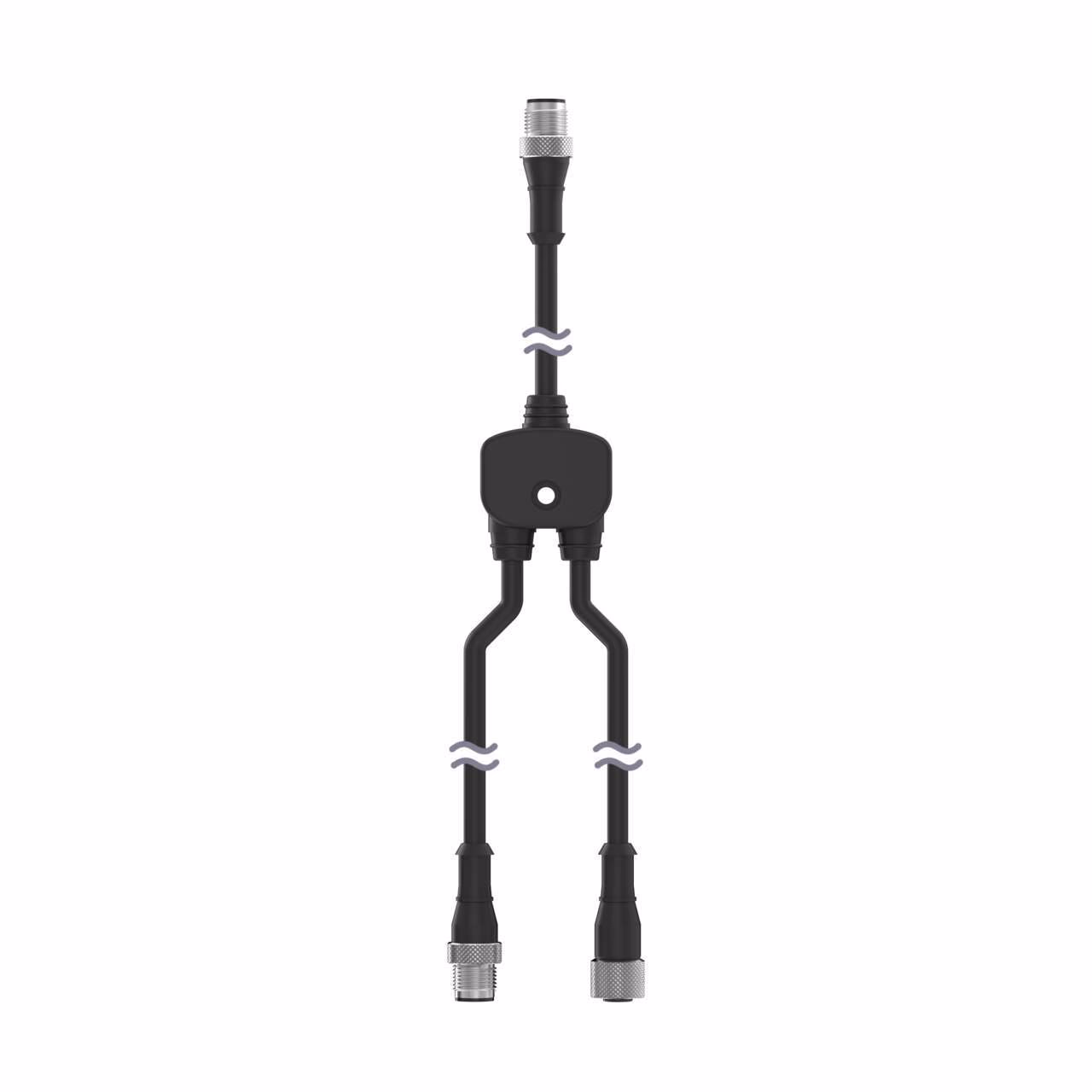

Splitters – Banner – CSB-M1240.3M1240.3M1250.3
Splitter Cable
4-pin M12 Male Trunk 0.3 m (1 ft)
One 4-pin M12 0.3 m (1 ft) Male Branch, One 5-pin M12 0.3 m (1 ft) Female Branch
Black
| Branches: Cable Jacket Material | PVC, PVC |
|---|---|
| Branches: Genders | Female, Male |
| Branches: Number of Contacts | 5, 4 |
| Number of Branches | 2.0 |
| Shield/No Shield | No Shield |
| Splitter: Overmold Material and Color | PUR Black |
| Trunk: Connector Type | M12 |
| Trunk: Gender | Male |
| Trunk: Number of Contacts | 4.0 |
| Trunk: Orientation | Straight |

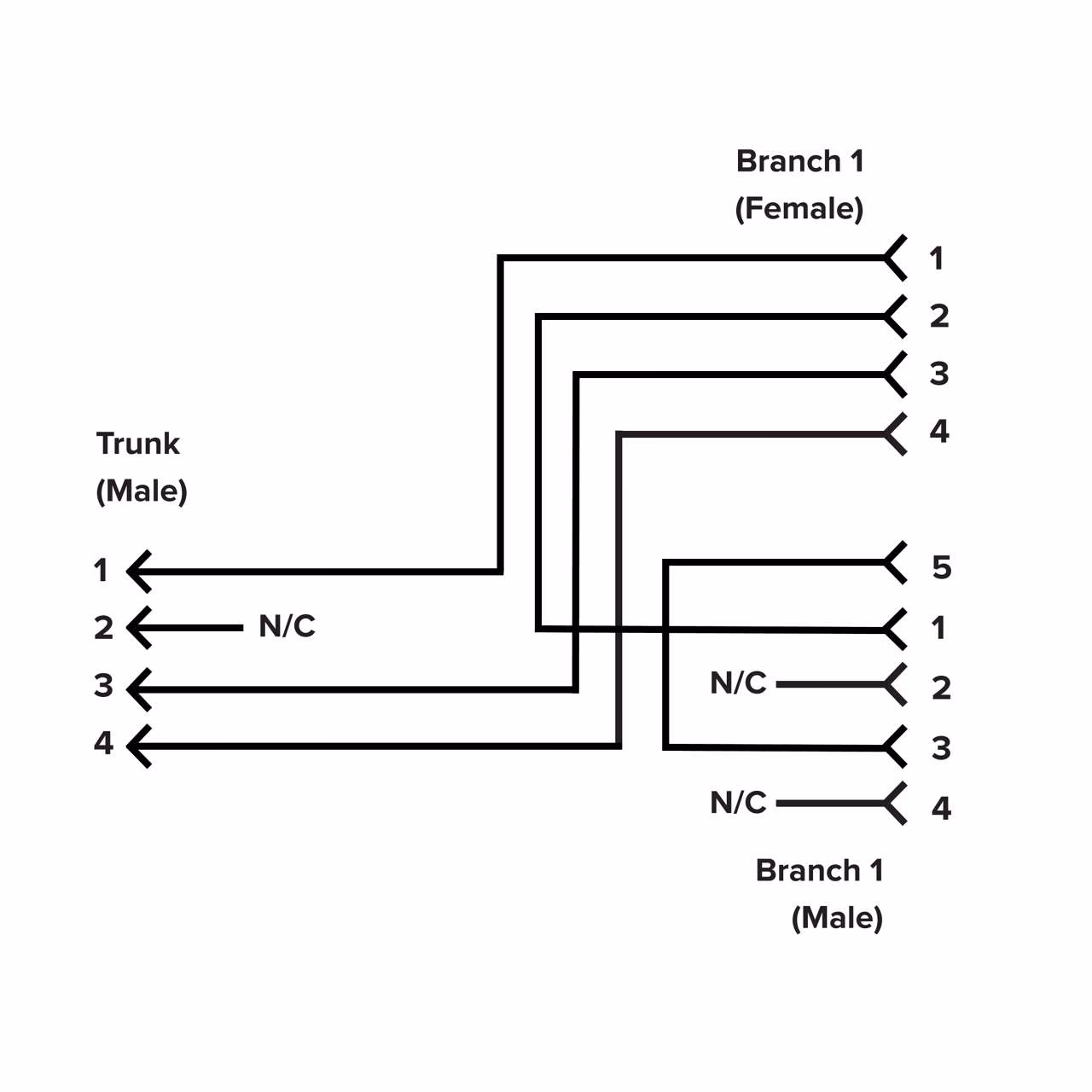

| Wiring | Custom |
| Cable quality | PVC |
| Current (A) | 4.0 |
| Indication | No |
| Item Status | RELEASED |
| Oil/Grease Resistant | No |
| Operating voltage | 250 V ac/dc |
| Protection class shaft | IP67 |
| Radiation direction | Straight, Straight |
| Start/Restart interlock | Y |
| Maximum Temp. (Celsius) | 105.0 |
| Minimum Temp. (Celsius) | -40.0 |
| Trunk Length (m) | 0.30 |
| Connector type.1 | M12, M12 |
Description
Splitter Cable
4-pin M12 Male Trunk 0.3 m (1 ft)
One 4-pin M12 0.3 m (1 ft) Male Branch, One 5-pin M12 0.3 m (1 ft) Female Branch
Black
