Splitters – Banner – CSB-M12415M1243M846
Splitter Cable
M12 4-pin Male Trunk 4.6 m (15 ft)
M12 4-pin 0.9 m (3 ft) Female M8 4-pin 1.8 m (6 ft) Female Branches
Black
| Branches: Cable Jacket Material | PVC, PVC |
|---|---|
| Branches: Genders | Female, Female |
| Branches: Number of Contacts | 4, 4 |
| Number of Branches | 2.0 |
| Shield/No Shield | No Shield |
| Splitter: Overmold Material and Color | PUR Black |
| Trunk: Connector Type | M12 |
| Trunk: Gender | Female |
| Trunk: Number of Contacts | 4.0 |
| Trunk: Orientation | Straight |

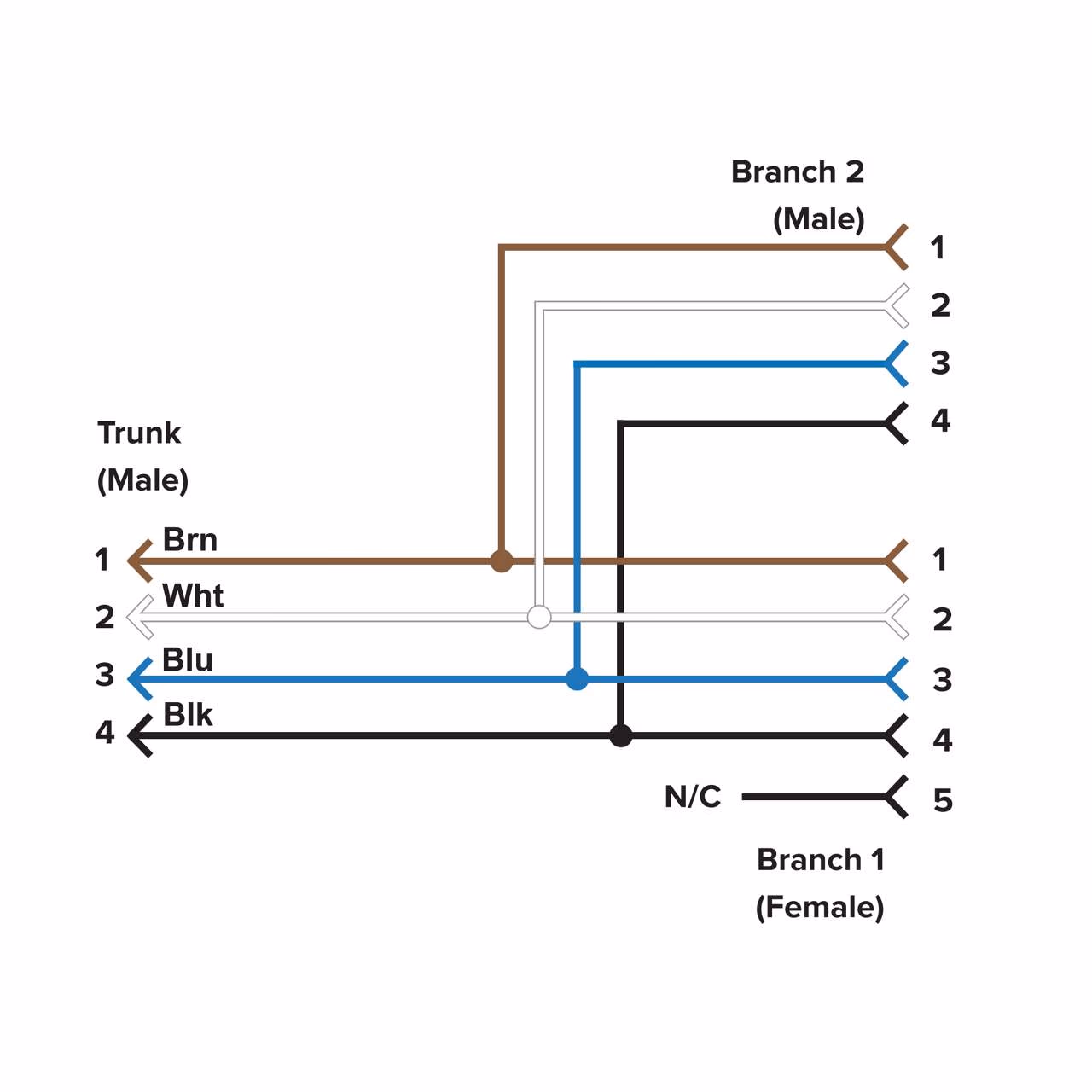

| Wiring | Parallel |
| Cable quality | PVC |
| Current (A) | 2.0 |
| Item Status | RELEASED |
| Oil/Grease Resistant | No |
| Operating voltage | 30 V ac/dc |
| Protection class shaft | IP67 |
| Start/Restart interlock | 3-port |
| Maximum Temp. (Celsius) | 70.0 |
| Minimum Temp. (Celsius) | -40.0 |
| Trunk Length (m) | 4.6 |
| Connector type.1 | M8, M12 |
Description
Splitter Cable
M12 4-pin Male Trunk 4.6 m (15 ft)
M12 4-pin 0.9 m (3 ft) Female M8 4-pin 1.8 m (6 ft) Female Branches
Black
