Splitters – Banner – CSB-M1250M1250-T

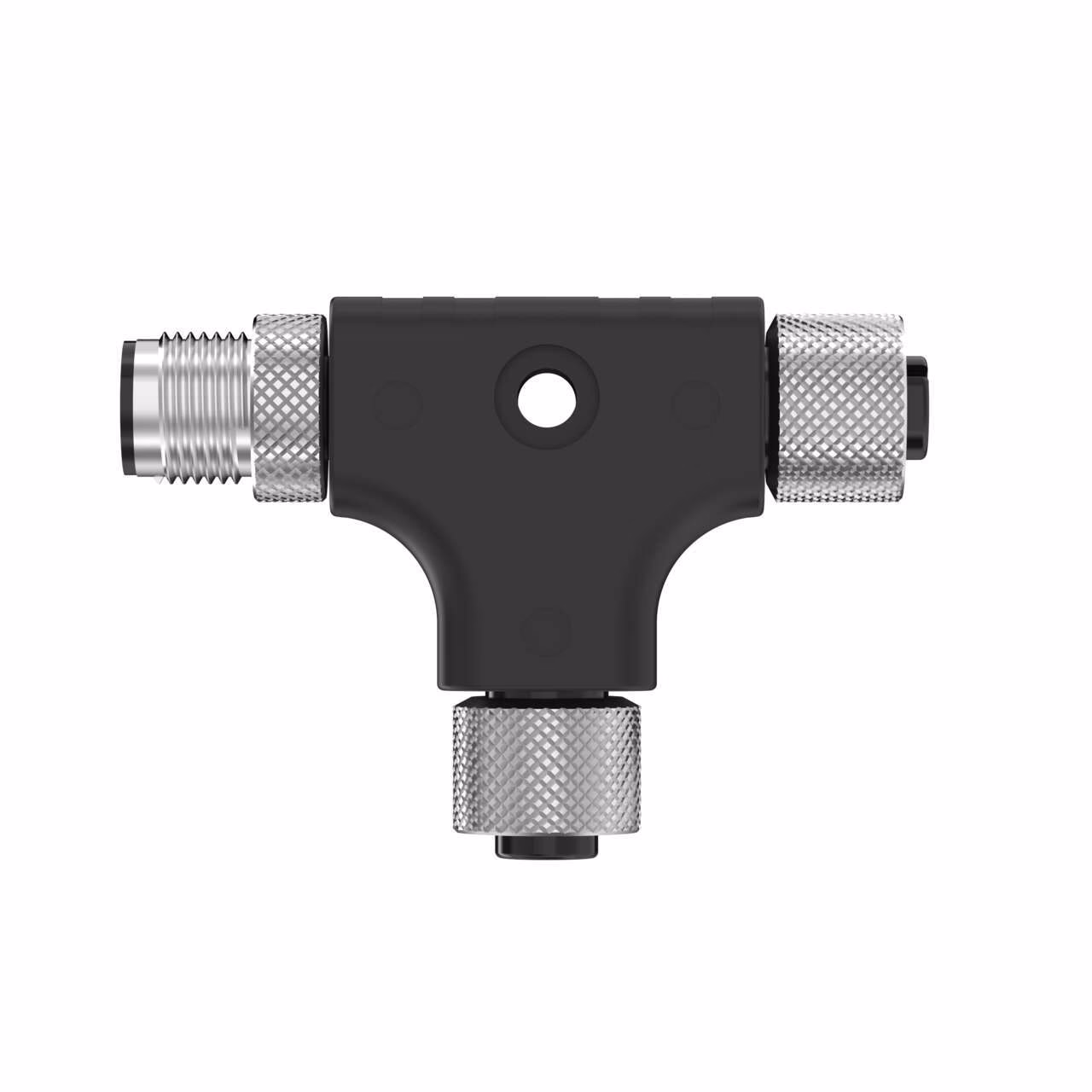

M12 T Splitter – Passive
5-pin Female Trunk Straight
5-pin Female T Branch (1)
5-pin Male T Branch(1)
Black TPU Splitter Junction
| Branches: Genders | Female, Male |
|---|---|
| Branches: Number of Contacts | 5, 5 |
| Number of Branches | 2.0 |
| Shield/No Shield | No Shield |
| Splitter: Overmold Material and Color | PUR Black |
| Trunk: Connector Type | M12 |
| Trunk: Gender | Female |
| Trunk: Number of Contacts | 5.0 |
| Trunk: Orientation | Straight |
| Wiring | Parallel |
| Current (A) | 4.0 |
| Indication | No |
| Item Status | RELEASED |
| Oil/Grease Resistant | No |
| Operating voltage | 250 V ac/dc |
| Protection class shaft | IP67 |
| Radiation direction | Straight, Straight |
| Start/Restart interlock | T |
| Maximum Temp. (Celsius) | 105.0 |
| Minimum Temp. (Celsius) | -40.0 |
| Trunk Length (m) | 0.00 |
| Connector type.1 | M12, M12 |
Description
M12 T Splitter – Passive
5-pin Female Trunk Straight
5-pin Female T Branch (1)
5-pin Male T Branch(1)
Black TPU Splitter Junction
