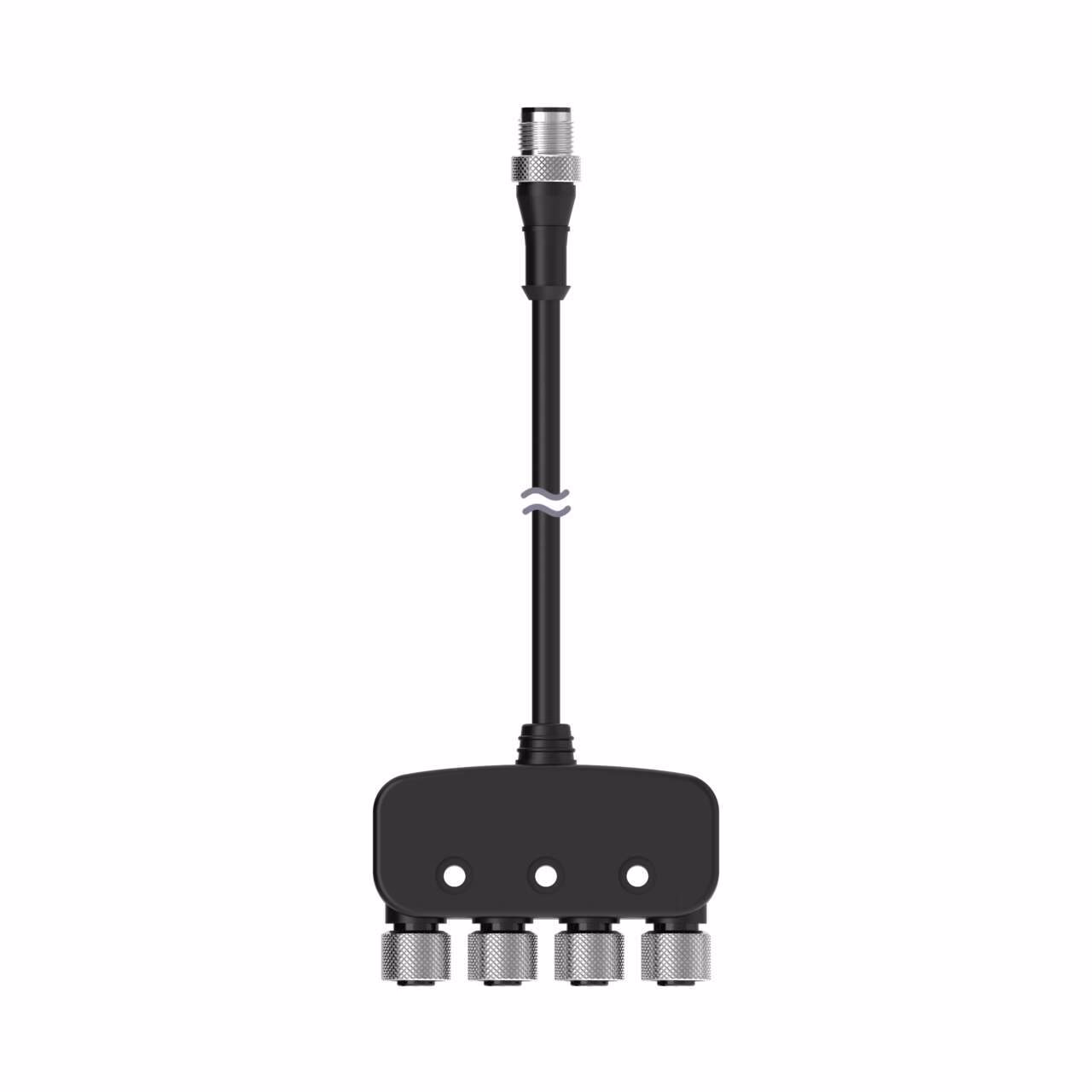

Splitters – Banner – CSB4-M1251M1250
Splitter M12M 5- Pin to M12F 5-pin, M12F 5-pin, M12F 5-pin and M12F 5-pin Connectors
Black PVC 22-5 AWG Trunk cordset, Straight Connectors
Trunk: 0.3 m; Branches: 0 m
| Branches: Genders | Female, Female, Female, Female |
|---|---|
| Branches: Number of Contacts | 5, 5, 5, 5 |
| Number of Branches | 4.0 |
| Shield/No Shield | No Shield |
| Splitter: Overmold Material and Color | PUR Black |
| Trunk: Connector Type | M12 |
| Trunk: Gender | Male |
| Trunk: Number of Contacts | 5.0 |
| Trunk: Orientation | Straight |
| Wiring | Parallel |
| Cable quality | PVC |
| Current (A) | 4.0 |
| Indication | No |
| Item Status | RELEASED |
| Oil/Grease Resistant | No |
| Operating voltage | 250 V ac/dc |
| Protection class shaft | IP67 |
| Radiation direction | Straight, Straight, Straight, Straight |
| Start/Restart interlock | Y |
| Maximum Temp. (Celsius) | 105.0 |
| Minimum Temp. (Celsius) | -40.0 |
| Trunk Length (m) | 0.30 |
| Connector type.1 | M12, M12, M12, M12 |
Description
Splitter M12M 5- Pin to M12F 5-pin, M12F 5-pin, M12F 5-pin and M12F 5-pin Connectors
Black PVC 22-5 AWG Trunk cordset, Straight Connectors
Trunk: 0.3 m; Branches: 0 m
